Precision Power PC2600 - Block Diagram of Signal Flow; Input Attenuation and Crossover Selection; QBASS and Gain Controls; Output Stages (AMP, RCA Output)

BACK TO CONTENTS
19

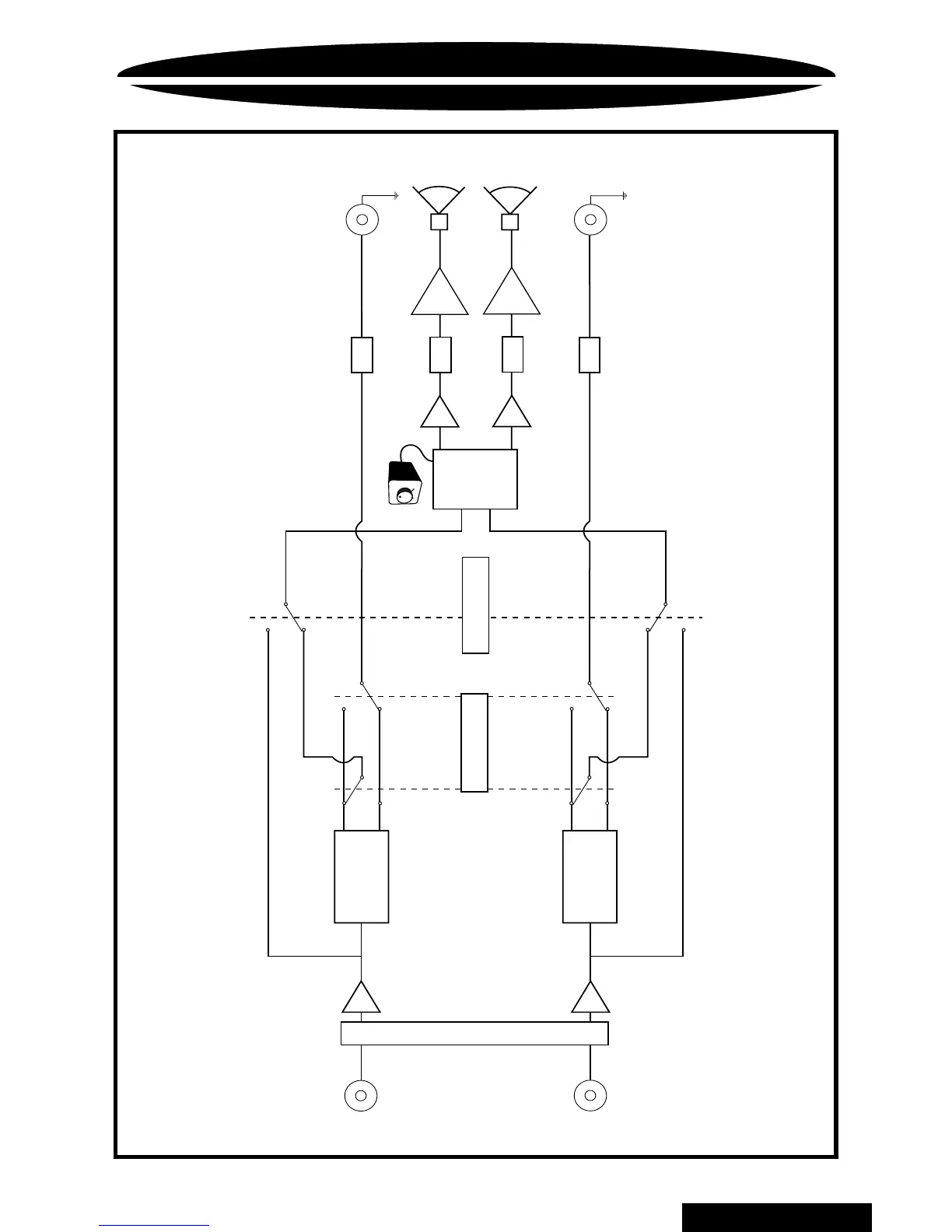

BLOCK DIAGRAM
High Pass
Low Pass
High Pass
Low Pass
X-OVER ON/OFF
HP/LP SELECT
RCA
Output
RCA
Output
RCA
Right
Input
DIF.
DIF.
RCA
Left
Input
- 12dB INPUT ATTENUATION
Right
Left
mute
AMP
gain
mute
AMP
gain
90Hz
90Hz
mute
mute
24dB / octave
24dB / octave
Q
BASS
PLUS
™
optional
Q
BASS REMOTE
™
