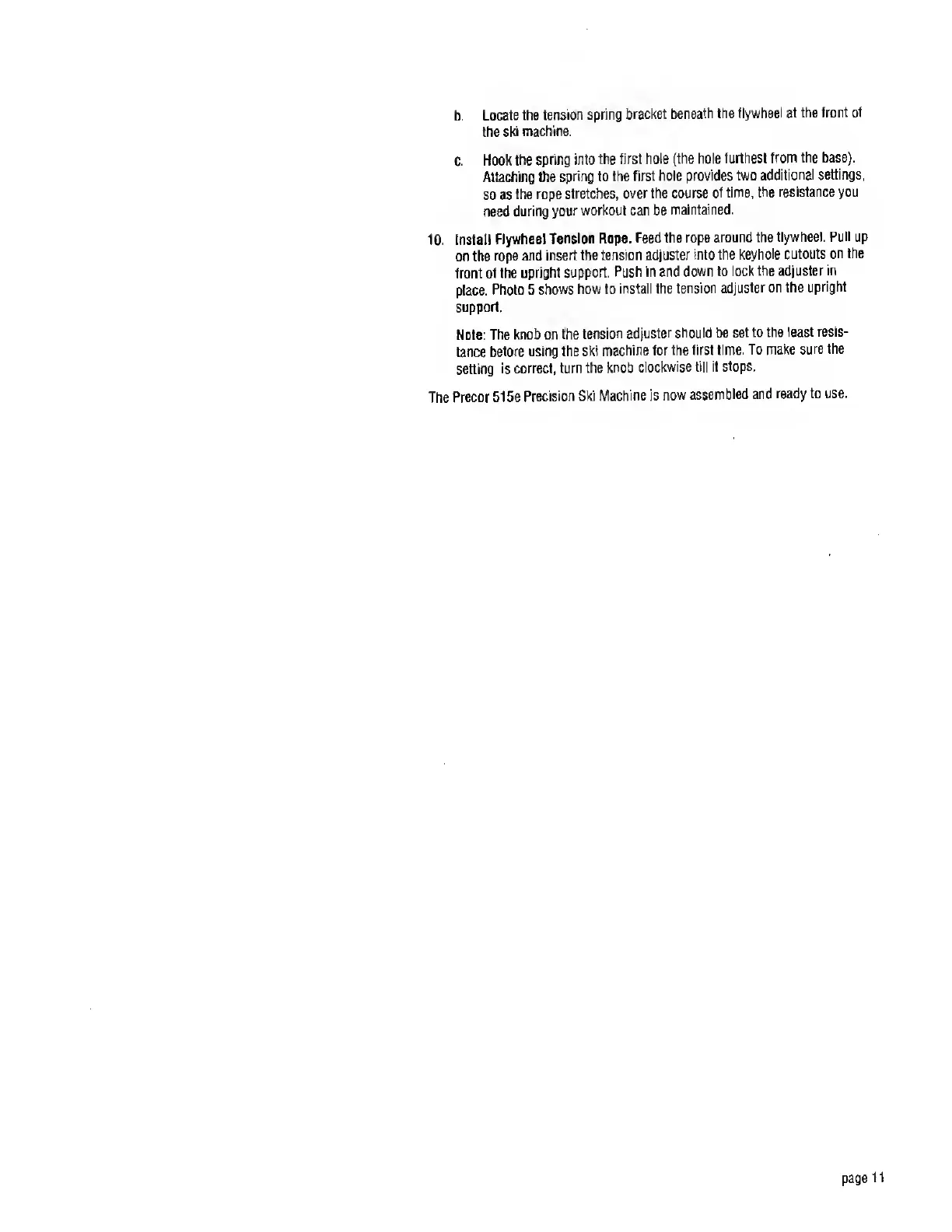

Precor 515e - Page 11

b. Locate the tension spring bracket beneath the flywheel at the front of
the ski machine.
c. Hook the spring into the first hole (the hole furthest from the base).
Attaching the spring to the first hole provides two additional settings,
so as the rope stretches, over the course of time, the resistance you
need during your workout can be maintained.
10. Install Flywheel Tension Rope. Feed the rope around the flywheel. Pull up
on the rope and insert the tension adjuster into the keyhole cutouts on the
front of the upright support. Push in and down to lock the adjuster in
place. Photo 5 shows how to install the tension adjuster on the upright
support.
Note: The knob on the tension adjuster should be set to the least resis¬
tance before using the ski machine tor the first time. To make sure the
setting is correct, turn the knob clockwise till it stops.
The Precor 515e Precision Ski Machine is now assembled and ready to use.
page 11
