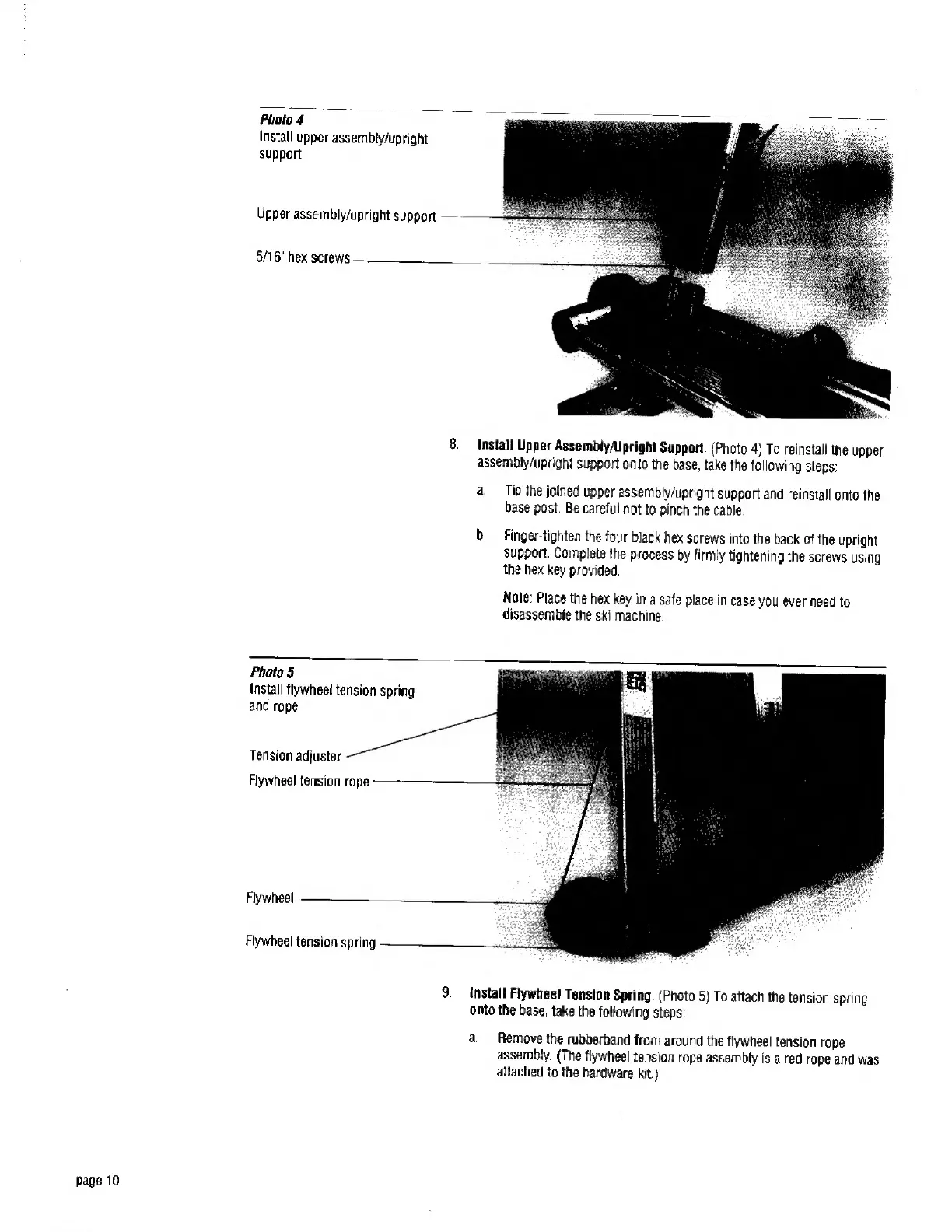

Photo 4
Install upper assembly/upright
support
Upper assembly/upright support
5/16" hex screws__
8. Install Upper Assembly/upright Support. (Photo 4) To reinstall the upper
assembly/upright support onto the base, take the following steps:
a. Tip the joined upper assembly/upright support and reinstall onto the
base post. Be careful not to pinch the cable
b. Finger-tighten the four black hex screws into the back of the upright
support. Complete the process by firmly tightening the screws using
the hex key provided.
Note: Place the hex key in a safe place in case you ever need to
disassemble the ski machine.
Photo 5
Install flywheel tension spring
and rope
Tension adjuster
Flywheel tension rope
Flywheel tension spring
Flywheel
9. Install Flywheel Tension Spring. (Photo 5) To attach the tension spring
onto the base, take the following steps:
a. Remove the rubberband from around the flywheel tension rope
assembly. (The flywheel tension rope assembly is a red rope and was
attached to the hardware kit.)
page 10
