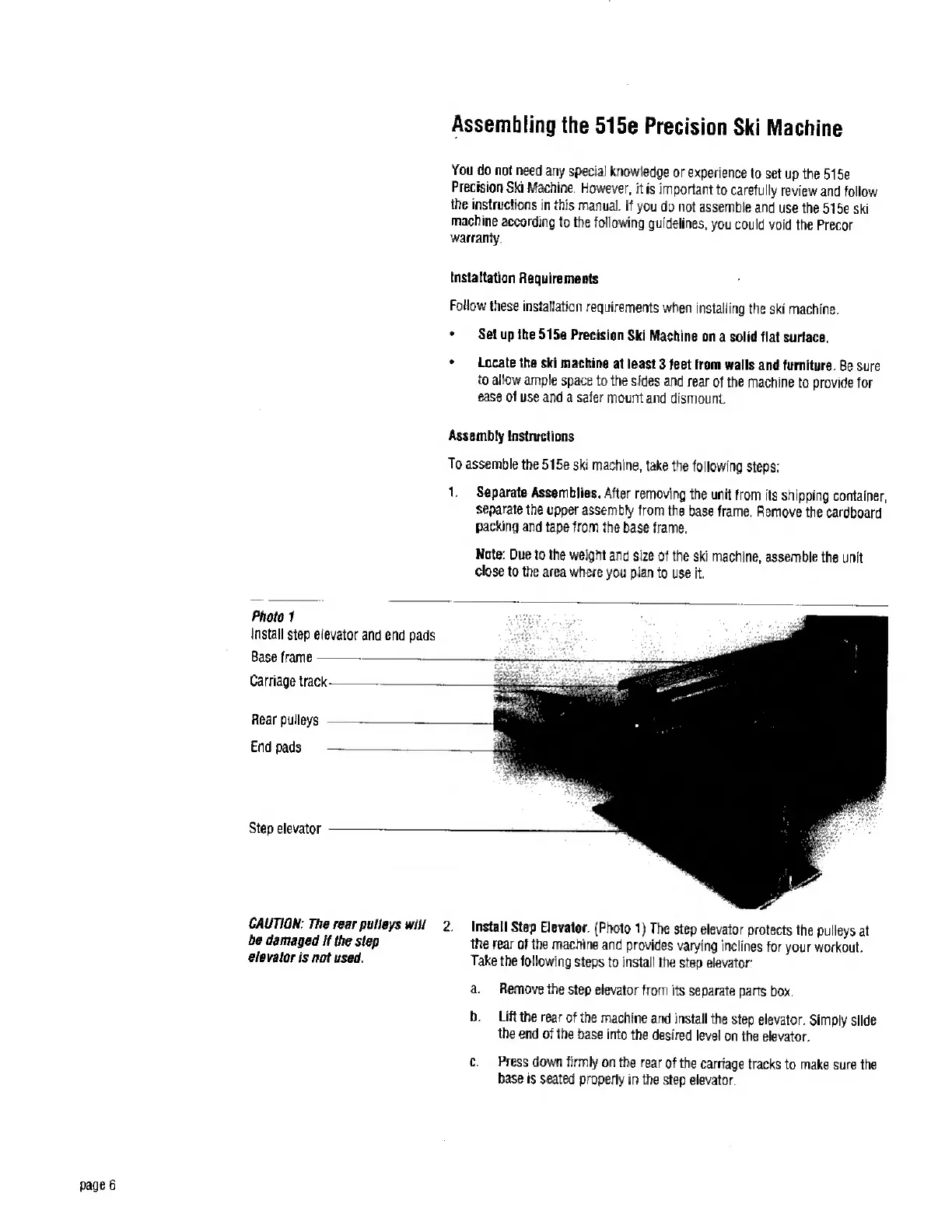

Assembling the 515e Precision Ski Machine
You do not need any special knowledge or experience to set up the 515e
Precision Ski Machine. However, it is important to carefully review and follow
the instructions in this manual. If you do not assemble and use the 515e ski
machine according to the following guidelines, you could void the Precor
warranty.
Installation Requirements
Follow these installation requirements when installing the ski machine.
• Set up the 515e Precision Ski Machine on a solid flat surface.
• Locate the ski machine at least 3 feet from walls and furniture. Be sure
to allow ample space to the sides and rear of the machine to provide for
ease of use and a safer mount and dismount.
Assembly Instructions
To assemble the 515e ski machine, take the following steps:
1 . Separate Assemblies. After removing the unit from its shipping container,
separate the upper assembly from the base frame. Remove the cardboard
packing and tape from the base trame.
Note: Due to the weight and size of the ski machine, assemble the unit
close to the area where you plan to use it.
Photo 1
Install step elevator and end pads
Base frame
Carriage track
Rear pulleys
End pads
Step elevator
CAUTION: The rear pulleys will 2.
be damaged If the step
elevator is not used.
Install Step Elevator. (Photo 1) The step elevator protects the pulleys at
the rear of the machine and provides varying inclines for your workout.
Take the following steps to install the step elevator:
a. Remove the step elevator from its separate parts box.
b. Lift the rear of the machine and install the step elevator. Simply slide
the end of the base into the desired level on the elevator.
c. P ress down firmly on the rear of the carriage tracks to make sure the
base is seated properly in the step elevator.
