C932, C932i, C934, C936i Treadmilll
Page 16
Procedure 4.1 - Calibrating the Lift Motor
1. Set the treadmill circuit breaker in the “off” position and unplug the line cord from the wall
outlet.
2. Remove the hood.
3. Place the treadmill on it’s right side. Remove hitch and clevis pins that secure the lift tube to
the lift platform.

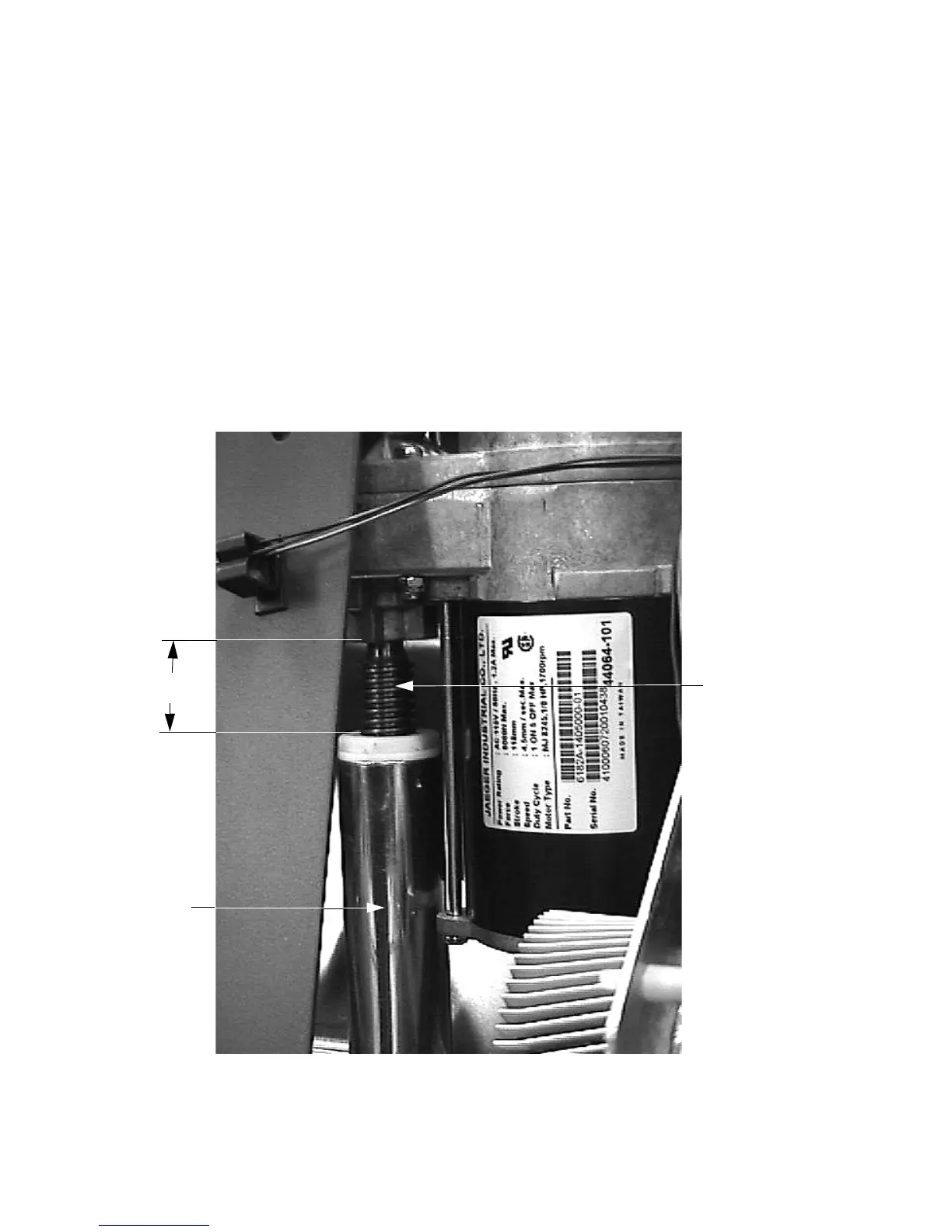

Diagram 4.1 - Lift Motor Mounting
1-1/16”
Lift Tube
Drive Screw
To Next Page
