C932, C932i, C934, C936i Treadmill
Page 43
Procedure 6.9 - Replacing the Drive Motor Cooling Fan
1. Set the treadmill circuit breaker in the “off” position and unplug the treadmill’s line cord from
the AC outlet.
2. Remove the hood.
3. Remove the brown and blue wires from the drive motor cooling fan.
4. Using a right angle screwdriver, remove the four screws that mount the drive motor cooling
fan to the drive motor. See Diagram 6.6

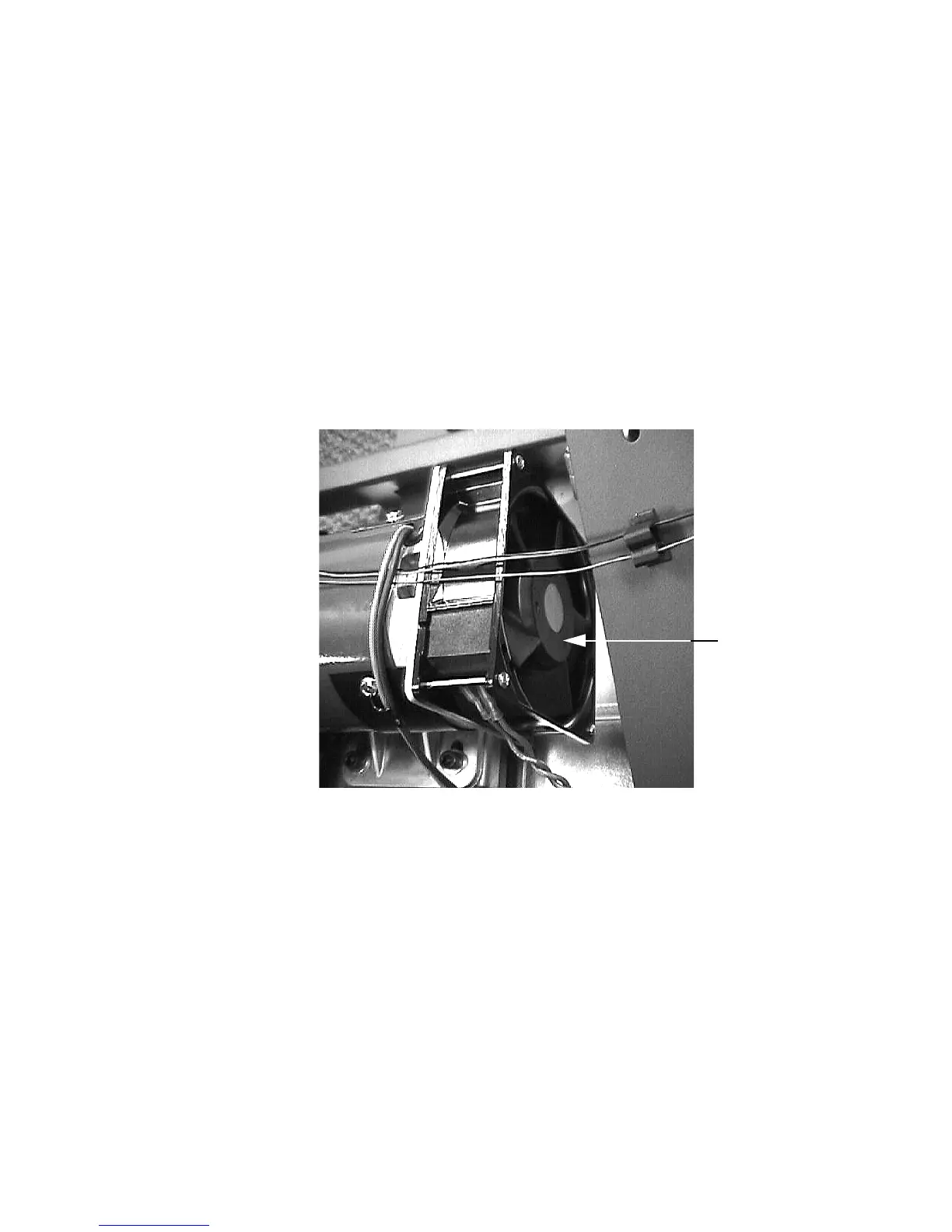

Diagram 6.6 - Drive Motor Cooling Fan Mounting
5. Set the replacement drive motor cooling fan at it’s mounting position on the drive motor and
fasten it with the hardware removed in step 4. Torque the mounting screws to 25 inch
pounds.
6. Replace the drive motor cooling fan wiring removed instep 3. The wires may be connected
to either terminal.
7. Replace the hood per Procedure 6.11.
8. Check treadmill operation per Procedure 3.
Drive Motor
Cooling Fan
