C932, C932i, C934, C936i Treadmilll

Page 48

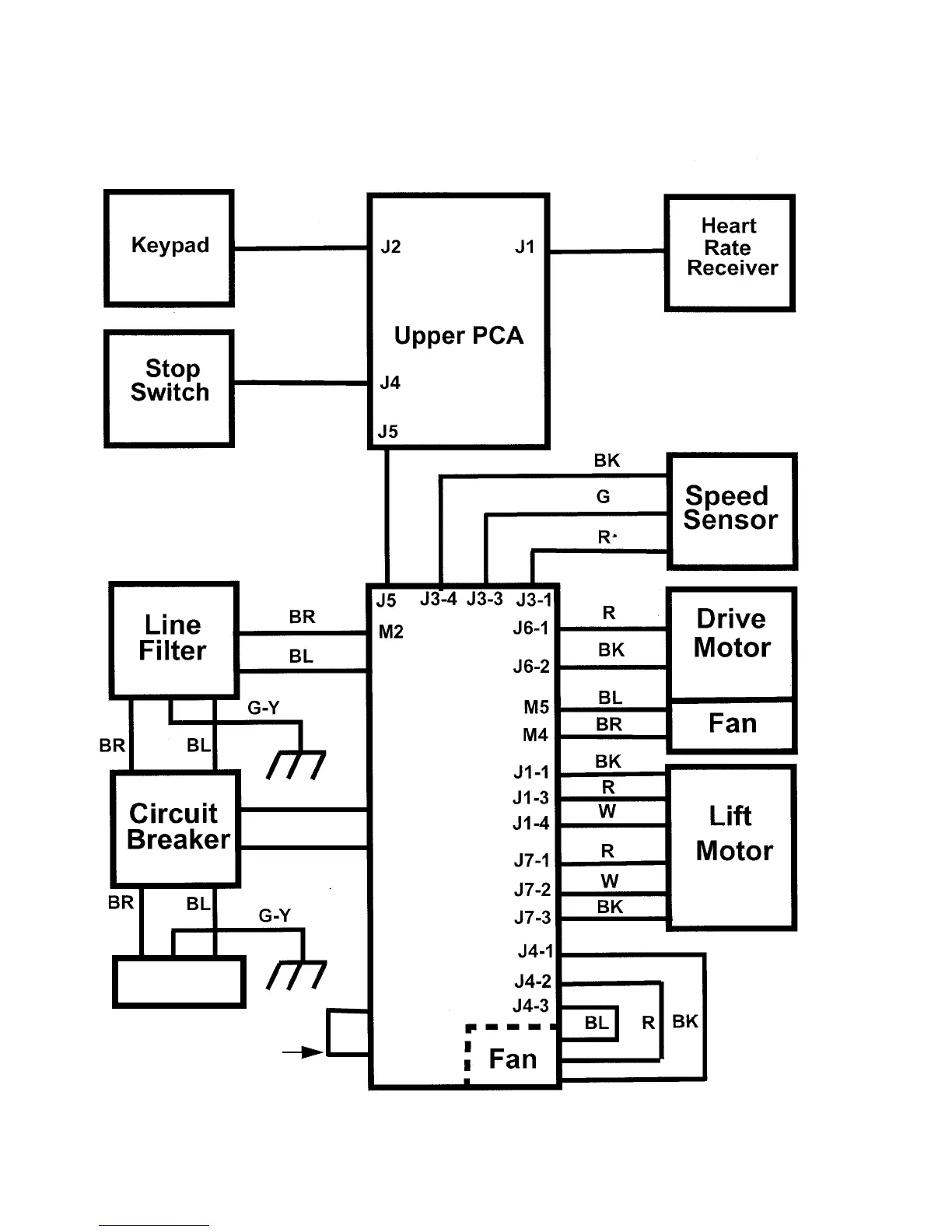

Wiring Diagram 7.1 - C932, C932i C934, C936i

AC Line

Cord

120 VAC Units Only

J2-1

J2-2

Lower

PCA

Section One - Things You Should Know2
General Information2
Technical Specifications3
Procedure 2.1 - Accessing the Hardware Validation Program4
Procedure 2.3 - Accessing the Club Setting Program11
Procedure 2.4 - Documenting Software Problems14
Procedure 4.1 - Calibrating the Lift Motor16
Procedure 4.2 - Adjusting Drive Belt Tension18
Procedure 5.1 - Troubleshooting the Keypad and Upper PCA20
Procedure 5.2 - Troubleshooting the Lift System23
Procedure 5.3 - Troubleshooting the Speed Sensor26
Procedure 5.4 - Troubleshooting the External A.C. Power Source28
Procedure 6.1 - Replacing the Lift Motor30
Procedure 6.2 - Replacing the Lift Platform31
Procedure 6.3 - Replacing the Lower PCA33
Procedure 6.4 - Replacing the Speed Sensor35
Procedure 6.5 - Replacing Drive Motor37
Procedure 6.6- Replacing the Circuit Breaker39
Procedure 6.7 - Replacing the Line Filter41
Procedure 6.8 - Replacing the Line Cord42
Procedure 6.9 - Replacing the Drive Motor Cooling Fan43
Procedure 6.10 - Replacing the Drive Motor Brushes44
Procedure 6.11 - Removing and Replacing the Hood46
Procedure 6.12 - Replacing the PROM47
