C954, C956 Treadmill
20077-107 Page 71
discard. Remove the inserts from the deck and flip it over. re-insert them into the new deck surface.
If the deck has already been flipped replace it with a new deck. Make sure that the new deck
surface is clear of debris. Ensure the new deck is installed with the inserts on the bottom of the
deck.

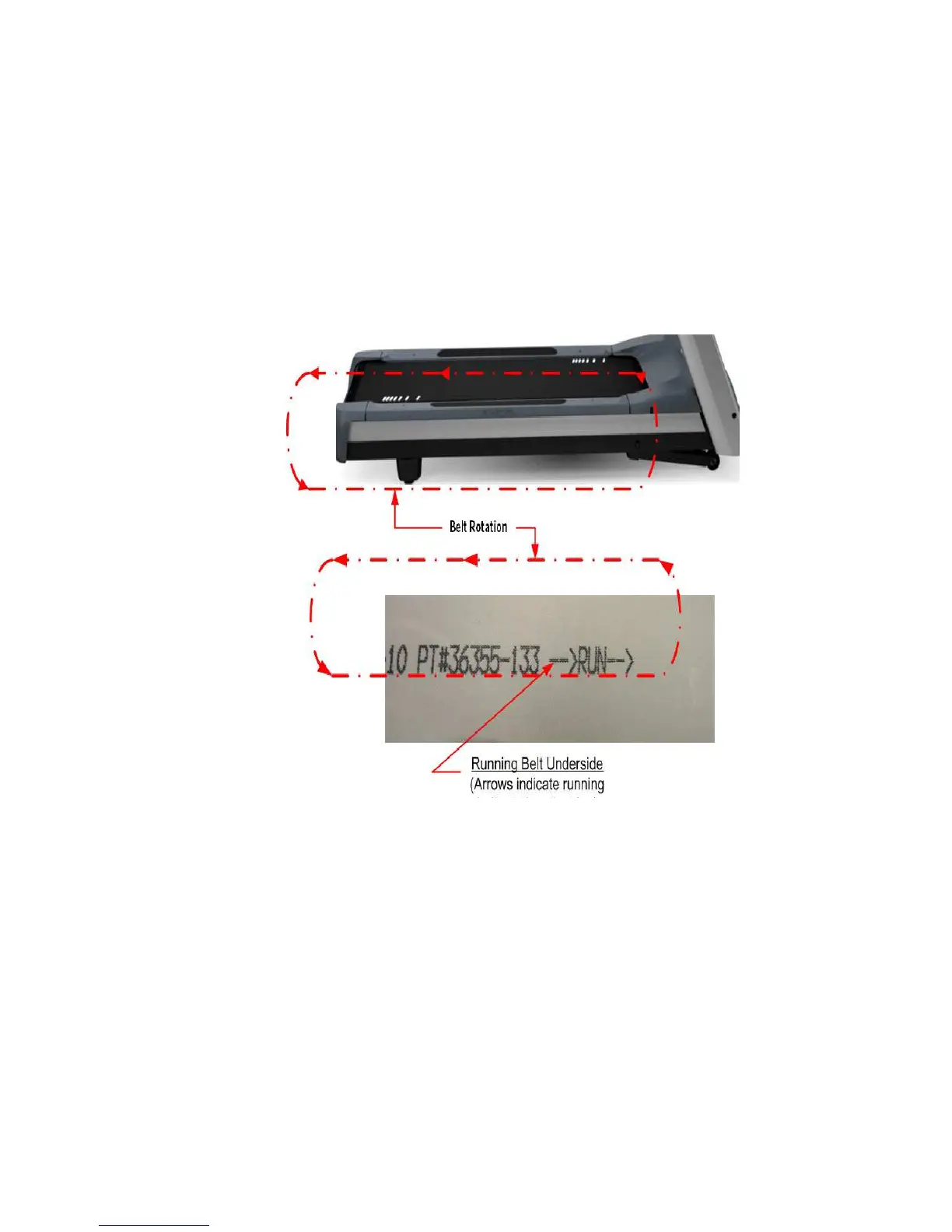

8. The new running belt will have an arrow pointing in one direction on the underside. The arrow
indicates the correct direction of travel for the belt. Premature belt failure will occur if the belt is
installed incorrectly. Slip the new running belt onto the deck and carefully place them back onto
the treadmill.
9. Reinstall the Auto Stop magnet on the right front corner of the deck, if applicable.
