Precor Discovery Series Assembly Guide

Attaching the weight tower to the movement frame
Note Do not tighten fasteners until instructed to do so.
Have your assistant hold the equipment frame in an upright, balanced position while
you complete the following procedure. Remove hardware and set it aside for use in
reassembly.
To attach the cross and base supports to the movement frame:

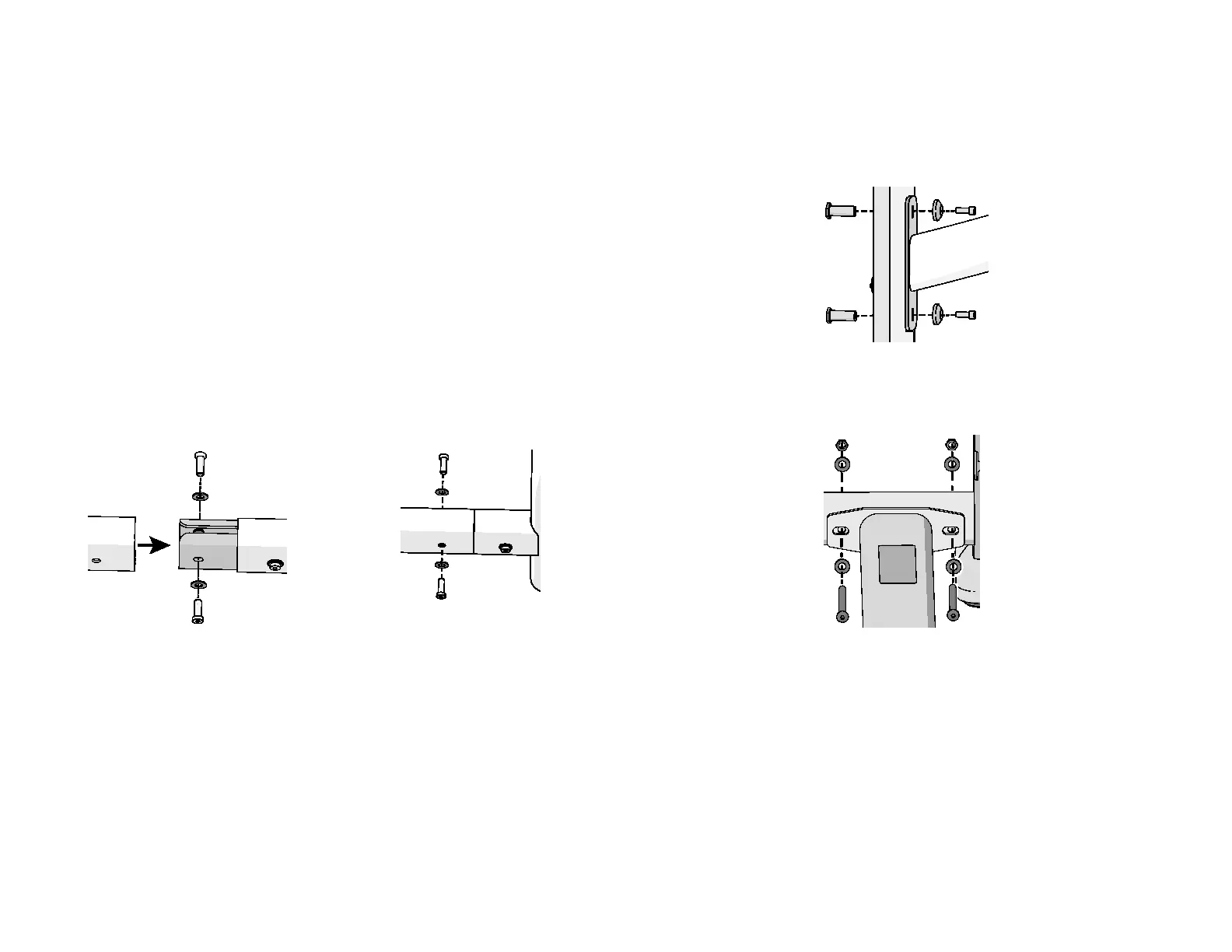

1. Locate the point where the base support attaches to the weight tower. Using a
7/32-inch hex bit and a 9/16-inch socket, remove the two bolts, four washers,
and two nuts.
2. Locate the point where the cross support attaches to the movement frame. Using
a 5/16-inch hex bit, remove the two bolts and two flat washers.
Note The nuts are already attached to the transition plate.
3. Attach the cross support to the movement frame using the bolts and washers
removed previously. Partially tighten the fasteners.
4. Attach the cross support to the weight tower using the fasteners removed
previously. Partially tighten the fasteners.
Note Be sure to orient the dome washers as shown in the following figure.
5. Attach the base support to the weight tower using the fasteners removed
previously. Partially tighten the fasteners.
5
