page 10
COMMERCIAL PRODUCTS DIVISION

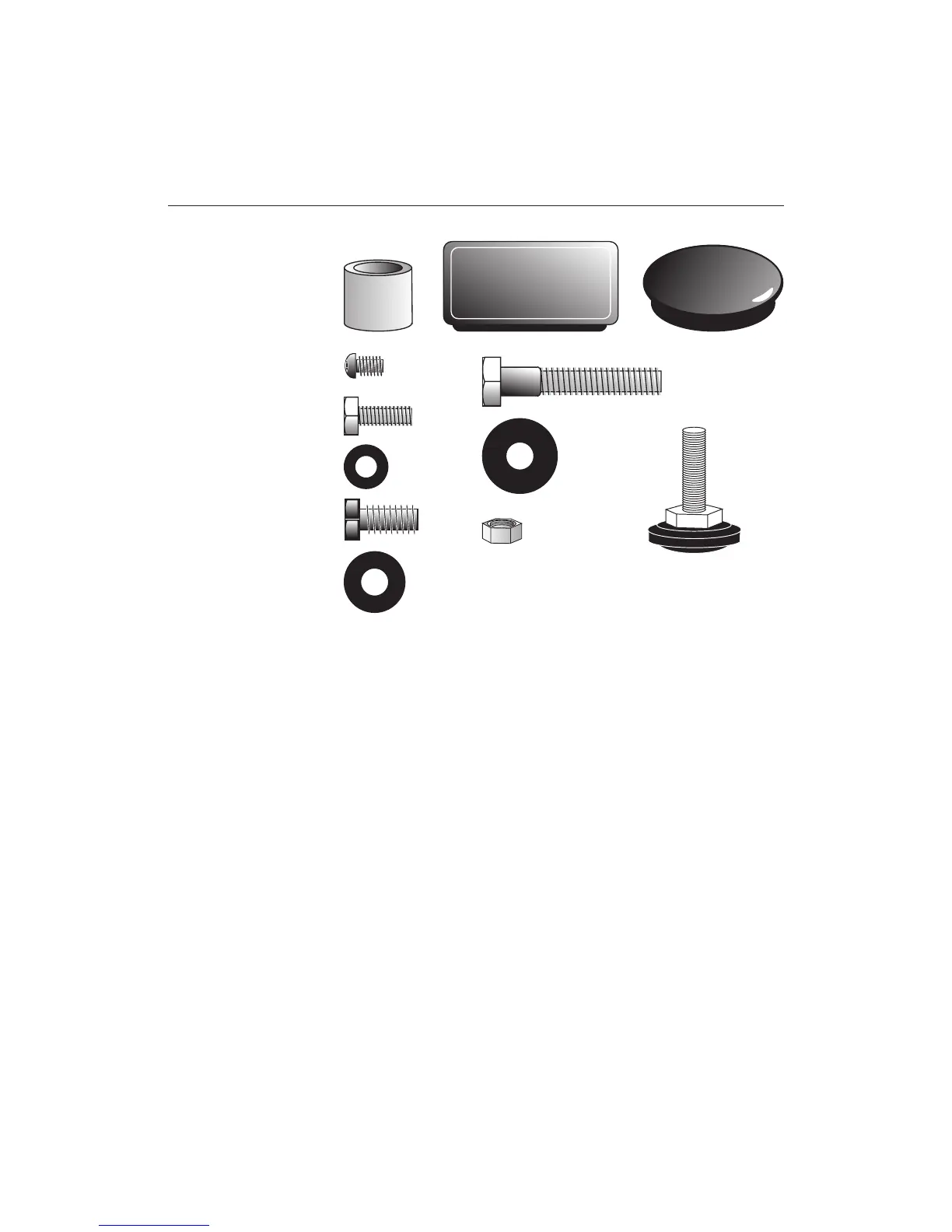

Diagram 3
EFX534i
Hardware kit
HARDWARE KIT
Carefully unpack the parts from the shipping container. Open the Hardware Kit
and make sure that you have the following items as shown in Diagram 3:
❑ (A) Two steel bushings — link arm assembly
❑ (B) End cap
❑ (C) Four plastic caps — link arm assembly
❑ (D) Four Phillips-head screws — attach display console
❑ (E) Six 1-inch long x ⁵⁄₁₆-inch diameter bolts — attach handlebars
❑ (F) Six small diameter washers — use with ⁵⁄₁₆-inch bolts (E)
❑ (G) Eighteen 1-inch long x ³⁄₈-inch bolts — attach upright and stabilizers to base
❑ (H) Eighteen large diameter washers — use with ³⁄₈-inch bolts (G)
❑ (J) Height adjuster
❑ (K) Two 2-inch hex head screws — link arm assembly
❑ (L) Six washers — link arm assembly
❑ (M) Two low profile locknuts — link arm assembly
If any items are missing, contact your dealer. If you need Customer Support, refer
to
Obtaining Service
on page 7.
B
A
C
D
E
F
H
G
J
K
L
M
