The EFX
®
534i Display

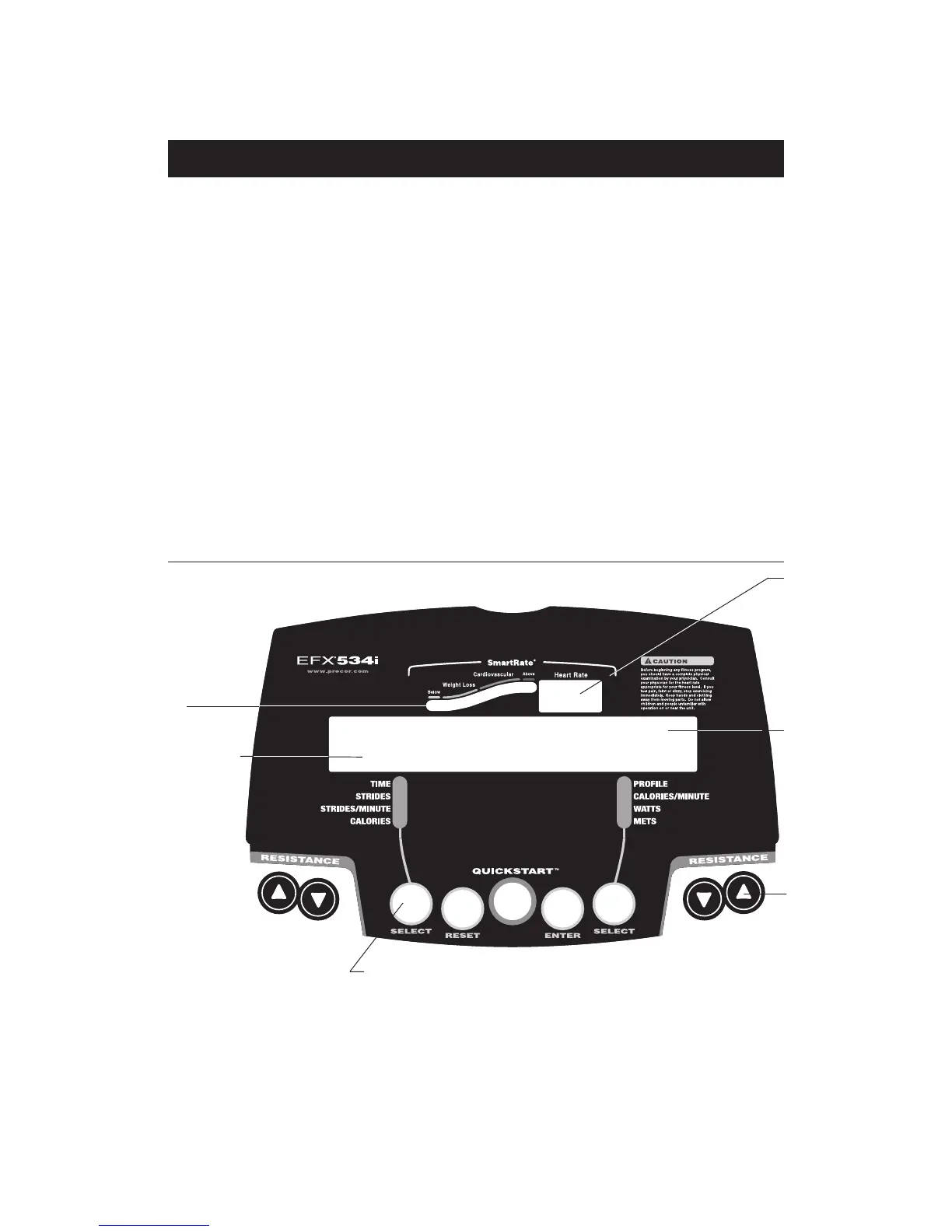

Diagram 23 EFX Display Console
If a heart rate
is detected,
it is displayed
in this window.
SmartRate
®
display
Banner, prompts,
workout statistics,
and program
profile appear in
the Center display.
During program
selection, the
program name
appears here.
The EFX is designed so users can work out with minimal instruction or training. The
directions on the console and the prompts on the display will guide a user through the
entire workout session. Before the EFX is used, however, we recommend that you
familiarize yourself with it so you can instruct your customers to use it safely and
effectively. This section covers the following information:
• an overview of the features provided on the display console
• an explanation about the available programs
• instructions for utilizing the heart rate options
FEATURES ON THE DISPLAY CONSOLE
As a user exercises, the display console provides motivation by presenting
constant feedback about his or her progress. An brief explanation of each feature
on the display console appears in Diagram 23. Look on the following pages for a
more thorough explanation.
Keypad is used to
input or select data
and control the
workout session.
During a workout, the SELECT keys highlight which
workout statistics appear on the display.
Note: If an error message should appear, call a Precor qualified service techni-
cian or service center. Refer to Obtaining Service , on page 7.
CENTER DISPLAY

Precor EFX534i t Specifications

Frame and Construction

crossramp	20° (fixed)
frame	Powder-coated steel
regulatory approval	FCC, ETL, CE

Weight and Dimensions

length	80 inches (203 cm)
width	32 inches (81 cm)
height	64 inches (162 cm)
weight	207 lbs (94 kg)
shipping weight	255 lbs (116 kg)
stride length	18 inches (46 cm)
