page 23
COMMERCIAL PRODUCTS DIVISION

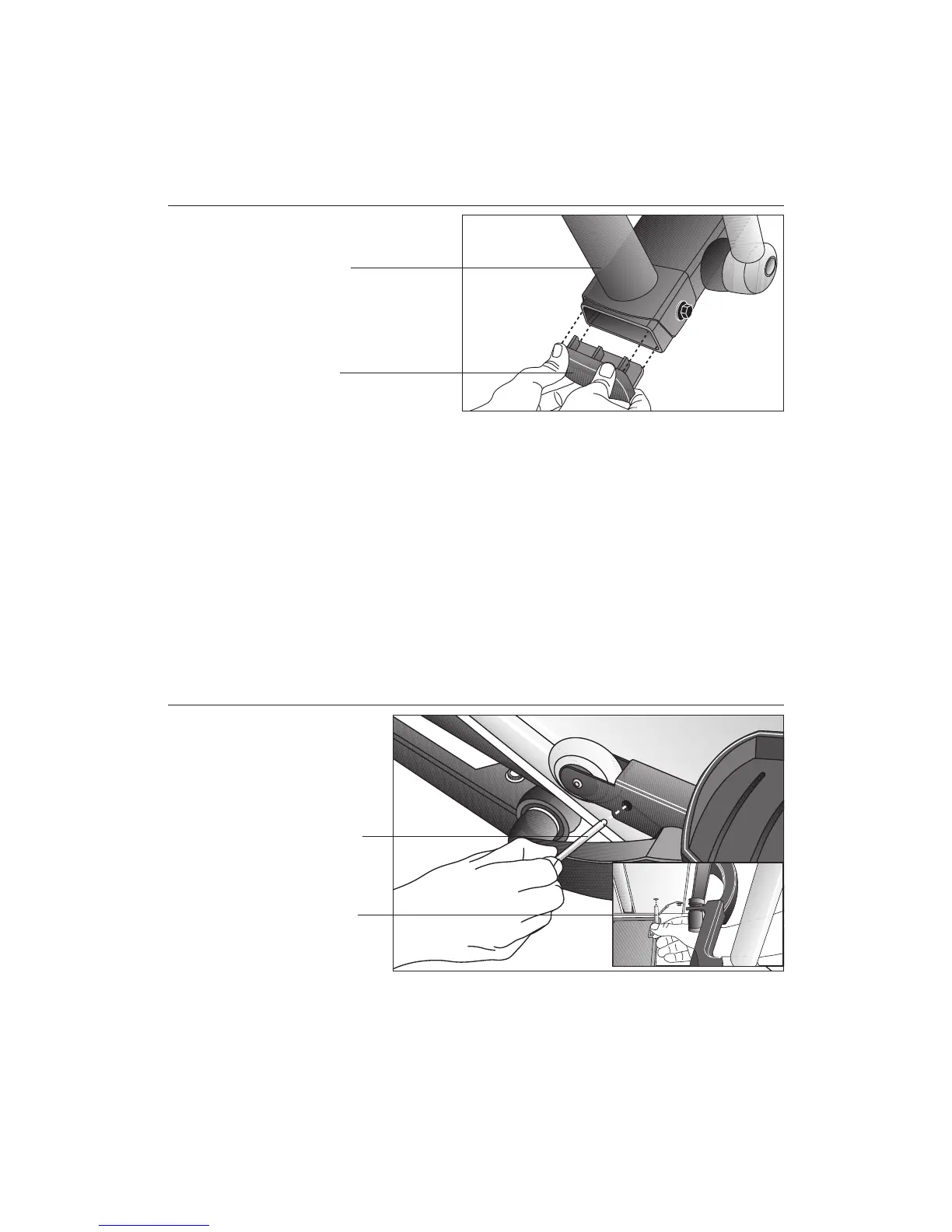

Diagram 20
EFX Locking pin.
Insert the locking
pin when you are
finished working
out or when you
leave the EFX
for
an extended
length of time.
Storage location
Diagram 19
Insert the front
end cap.
Upright support
Front end cap
CAUTION: If you purchased the chest strap option, be sure to test the
heart rate display (refer to page 24) prior to inserting the front end cap.
23. Once you have checked that the heart rate feature is working properly, insert the
front end cap (found in the Hardware kit) into the base assembly. See Diagram 19.
Insert the front end cap into the base tube. Make sure that the cable does not get
pinched by the end cap. If necessary, use a rubber mallet to secure the end cap.
REMOVING THE LOCKING PIN
CAUTION: Do not allow children on the EFX. Be aware that injuries can
occur from the roller arm and handlebar movement. Always use the locking
pin to secure the roller arm when the EFX is not in use.
The locking pin secures the roller arm and keeps it from traveling up or down the
ramp. Pull firmly on the pin to slide it out of the ramp. A lanyard is attached to the
locking pin and ramp. Refer to Diagram 20.
Store the locking pin underneath the ramp once it is removed from the roller arm.
See inset in Diagram 20.
