page 22
COMMERCIAL PRODUCTS DIVISION
21. Level the unit. Diagram 17. To keep the unit stable, the EFX has adjustable
rear pads and, at the front of the base assembly, a height adjuster. Check to
make sure that the unit does not wobble from side to side or front to back.
Important: If the unit is placed on a slightly, uneven surface, adjusting the
rear pads can help, but will not compensate for extremely uneven surfaces.
a. To remove any side to side movement or wobble, rotate the rear pads.
b. To counteract any rocking (front to back) motion, ask your assistant to
grasp the upright support so that he or she can raise the front of the unit
off the floor. Use a crescent or combination wrench to loosen the nut.
• Turn the height adjuster clockwise to raise the height of the front end.
• Turn the height adjuster counterclockwise to lower the height.
Once you have the proper height adjustment, use the wrench to turn the
nut counterclockwise and tighten it securely against the base tube.

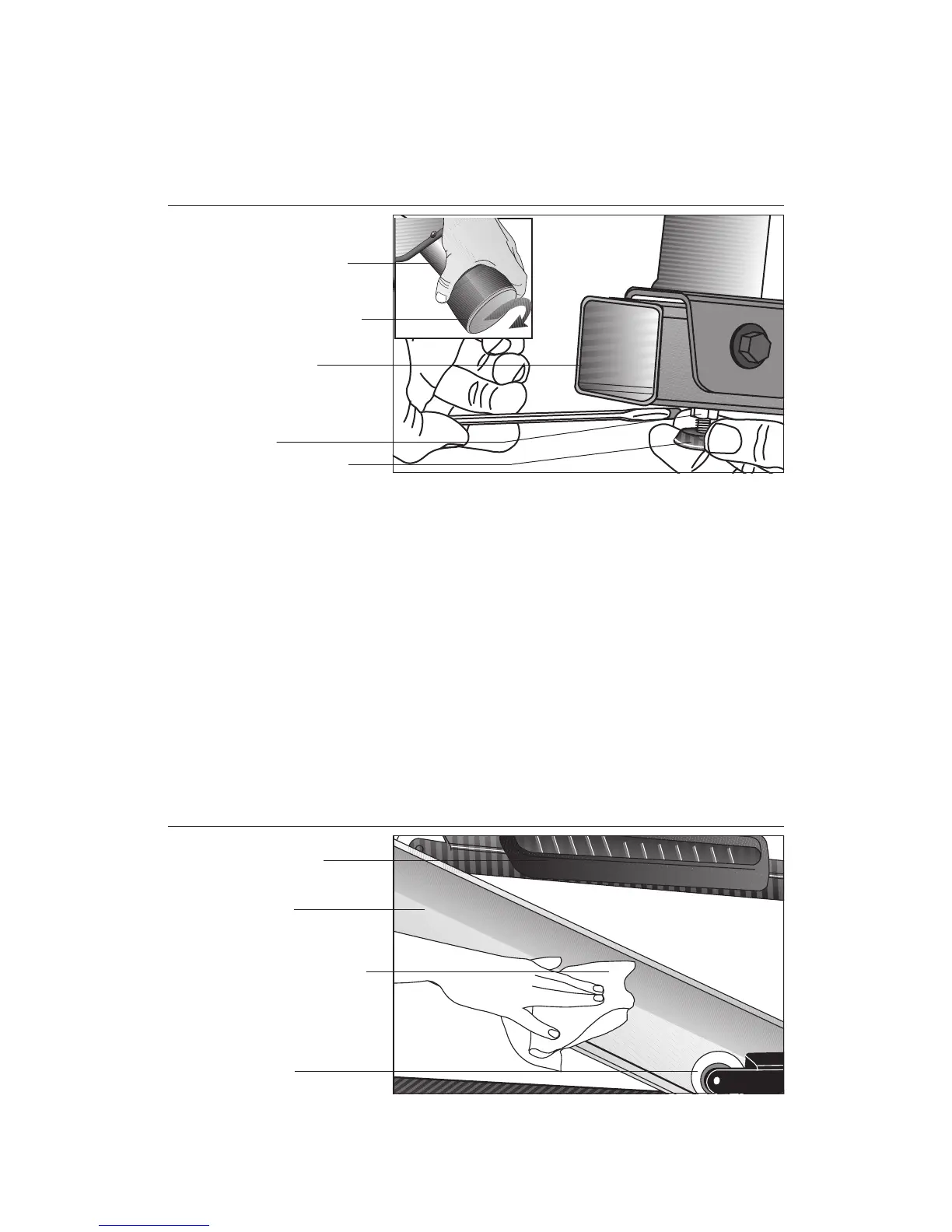

Diagram 17
Level the unit.
Height adjuster
Rotate rear
adjustment pads.
Rear crossbar
Base tube
Nut
Diagram 18
Clean the ramp.
Roller
Wipe ramp with a
damp, clean cloth.
Ramp
Foot pedal
22. Clean the ramp. Diagram 18. Wipe down the ramp and foot pedals with a
soft cloth dampened in a diluted solution of mild soap and water.
