page 16
COMMERCIAL PRODUCTS DIVISION
15. Tighten all mounting screws using a ⁹⁄₁₆-inch wrench. Diagram 11.
a. Ask for assistance to remove the supportive wedge from beneath the base
assembly and to turn the unit onto its side.
b. With the unit on its side, start at the base with the eight bolts that attach the
frame stabilizers to the base frame. Tightening these bolts first helps pull the
rest of the parts into alignment. Proceed with securely tightening the bolts
attached to the upright support bracket and the bolts that secure the upright
support to the base frame.
Tighten the bolts
on the base
frame first.

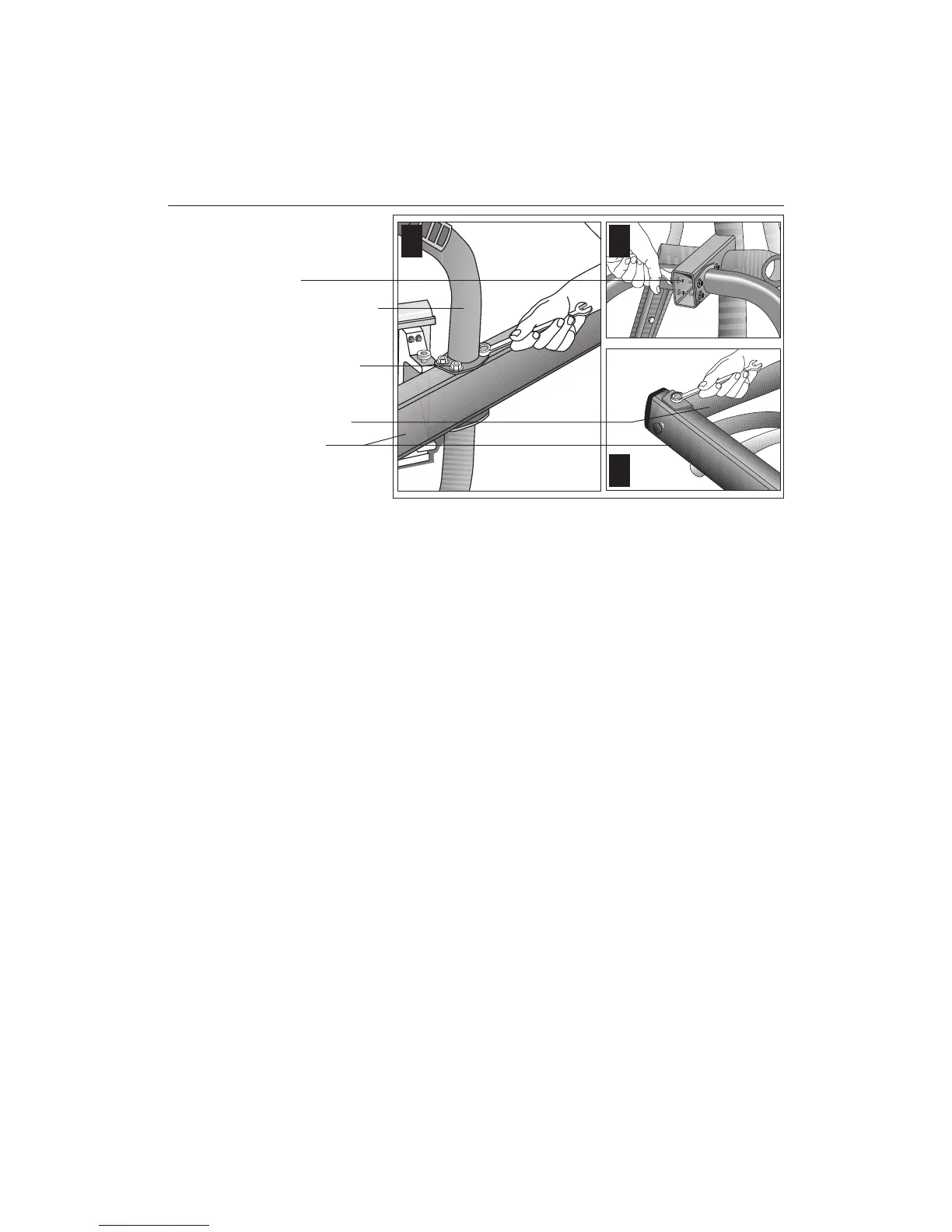

Diagram 11
Tighten the
mounting bolts.
2
3
1
Upright support
bracket
Left frame stabilizer
Base frame
Upright support
