Dash Top and Bottom Cover Replacement
Dash Top and Bottom Replacement

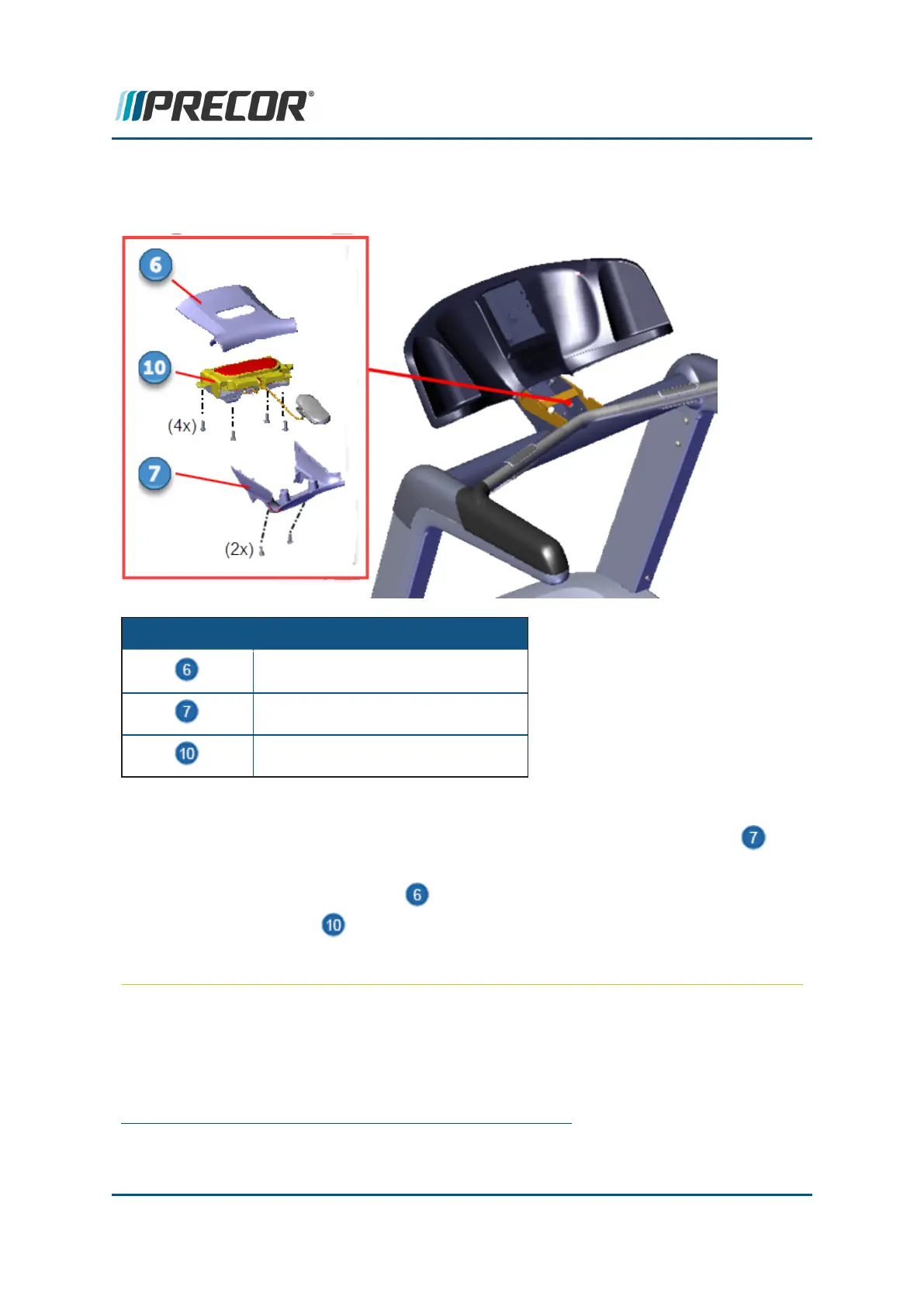

ID Description
Dash Top Cover
Dash Bottom Cover
E-Stop Switch Assy
Removal Instructions
1.
Remove the two #3 Phillips screw fasteners from the dash assy bottom cover .
Retain part(s) and/or fastener(s) for installation.
2.
Carefully flip the dash top cover over and remove the four #2 Philips emergency
stop switch (E-Stop) fasteners. Carefully lay the E-Stop switch on the HHHR
1
assy bracket and remove the dash top cover. Retain part(s) and/or fastener(s) for
installation.
1
Handheld Handlebar Heart Rate
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 95
