Common Frame Take-up Roller
There are two different common frame take-up rollers, one for the TRM600 and another for
the TRM700/800 treadmills.

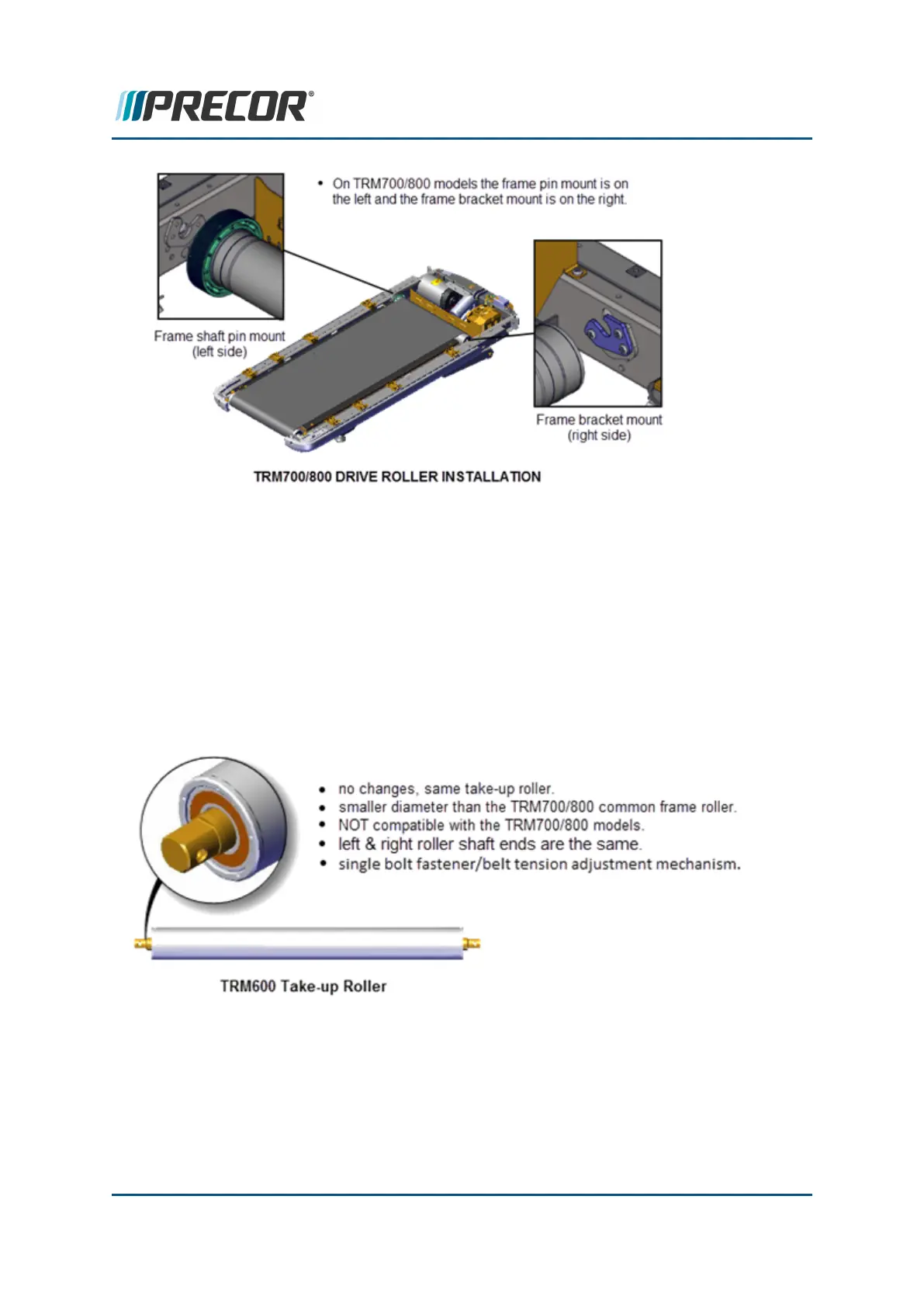

TRM600 Take-up Roller
The TRM600 common frame take-up roller has not changed. It is a smaller diameter roller
and not compatible with the TRM700/800 treadmills. The roller is designed to use the com-
mon frame single bolt fastener/belt tension adjustment mechanism.
TRM700/TRM800 Take-up Roller
There is a new redesigned take-up roller for the TRM700/TRM800 common frame. It is a
multi-use roller designed to work with the new common frame single bolt fastener/belt ten-
sion adjustment mechanism and the legacy frame cassette style belt tension adjustment
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 238
9 Theory of Operation
TRM600/700/800 Common Frame Overview
