Precor FTS Glide User Manual

FTS Glide Assembly and Maintenance Guide
page 14
1 2 3 4 5 6
K. Remove the Weight Pin and gently lower the Top
Weight Assembly onto the Weight Stack.
L. Remove the slack in the cable. Use two ⁹⁄₁₆-inch
wrenches to loosen the fastener that holds the Cam
Washer. Rotate the Cam Washer to remove any
slack in the cable. Check the Top Weight Assembly
to make sure it remains well-seated on the Weight
Stack and then wrench tighten the Cam Washer
fasteners.
Important: Before attaching the Weight Labels,
wash your hands to remove dirt and grease.
M. Peel the Weight Label off the Weight Label Strip.
N. Peel the backing off the Weight Label to expose the
adhesive and place a label on each Weight Plate.
The recommended location of the label is toward
the rear of the unit.
P. Apply lubricant to each Guide Rod.
CAUTION: The lubricant can stain clothes. Wear
proper attire when lubricating the Guide Rods.

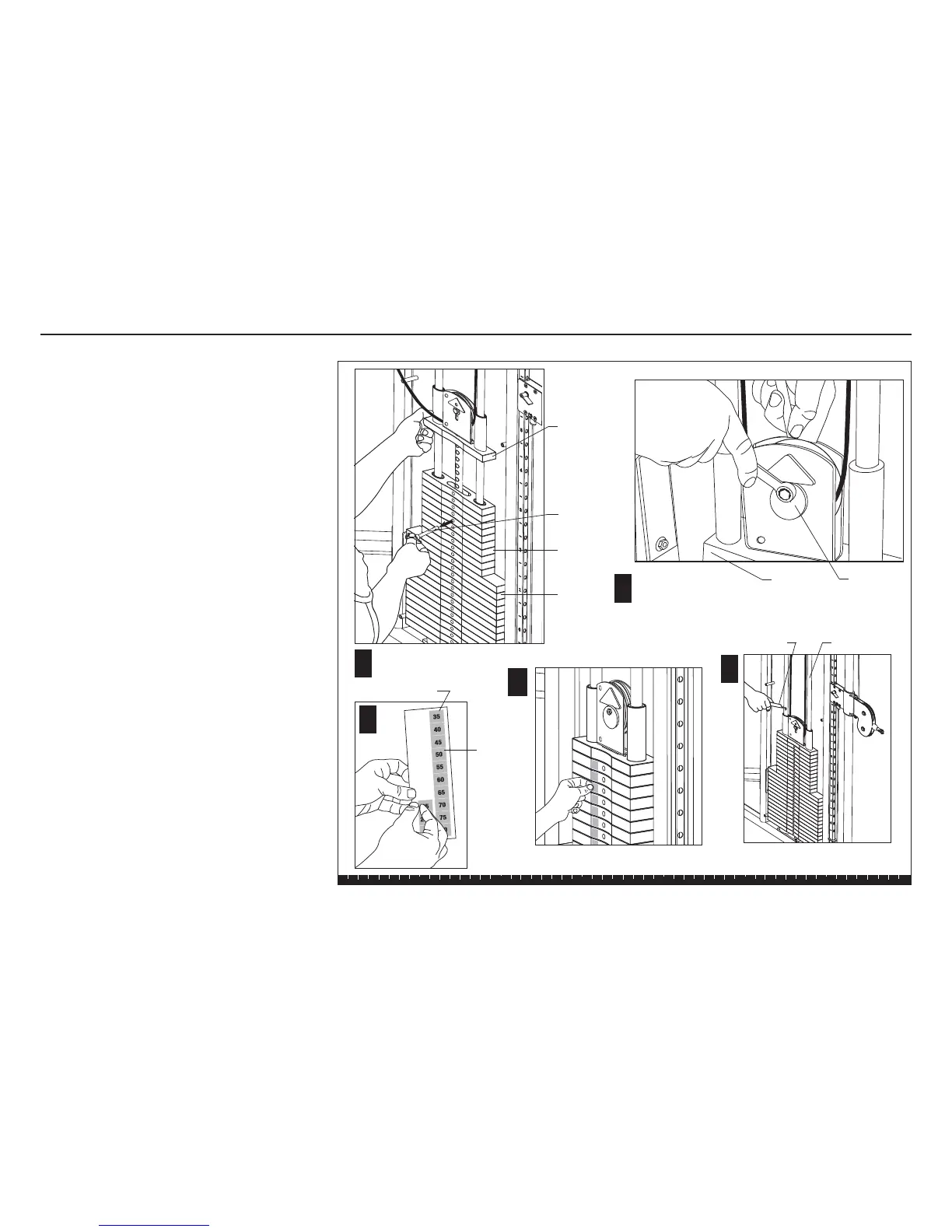

K
Weight
Pin
Top Weight
Assembly
L
Cam
Washer
Top Weight
Assembly
Adjust Cam Washer to
remove cable slack.
Remove Weight Pin and
lower Top Weight Assembly.
P
5-lb.
Weights
10-lb.
Weights
Lubricant Guide Rod
Step 2. Assemble Weight Stack, continued
M
10
17.5
20
22.5
25
7.5
15
12.
5
N
Weight Label Strip
Weight
Label

Precor FTS Glide Specifications

Weight and Dimensions

length	48.5 inches (123 cm)
height	85 inches (216 cm)
width	53 inches (135 cm)
