Step 1. Assemble Main Structure
1. Assemble Main Structure
A. Lay the Main Uprights on the floor where you plan to
use them and remove all packing material. Be sure
the Cam Washers on the Top Weight Assemblies are
facing up.

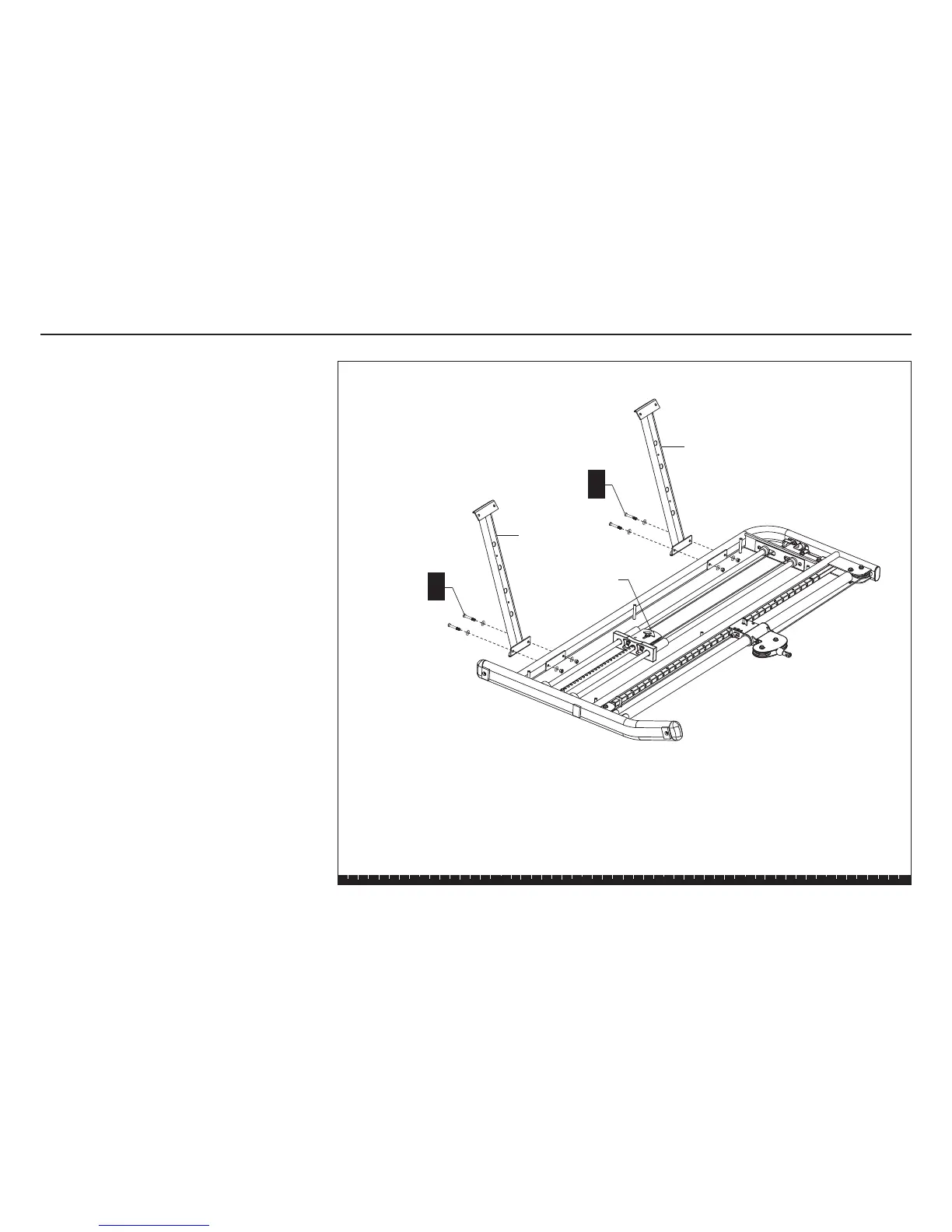

B. Attach the Upper and Lower Cross Braces to one
Main Upright using
four 2⁵⁄₈-inch hex head bolts
eight washers
four locknuts
Finger tighten.
Important: To keep each cross brace aligned
properly and the fasteners intact, do not lean on
or apply pressure to either cross brace.
Lower Cross
Brace
Upper Cross
Brace
2 - 2⁵⁄₈" bolts
4 - washers
2 - locknuts
B
2 - 2⁵⁄₈" bolts
4 - washers
2 - locknuts
B
Cam Washer
