Precor FTS Glide User Manual

FTS Glide Assembly and Maintenance Guide
page 16
1 2 3 4 5 6
Step 3. Attach Shrouds
3. Attach Shrouds
Two Shrouds are attached to each Main Upright.
Complete the assembly steps for one side before
moving to the other Main Upright.
Important: Handle the Shroud with care. The acrylic
Shrouds require special handling as they are easily
scratched. For proper care and maintenance, refer to
the Adjustments and Maintenance section in this
guide.
A. The frosted side of the Shroud faces the Weight
Stack. Install the Shrouds so the cutouts allow
access to the Weight Stack Pin.
B. Attach a Shroud to each side of the Main Upright
using
eight 1³⁄₄-inch socket head screws
eight spacers
Note: Start with the two bottom mounts and work
toward the top. Ask your assistant to hold the
Shroud in place while you insert the spacers and
fasteners. Position the spacer so its larger diameter
rests against the shroud. Alternately finger tighten
all eight fasteners while adjusting the alignment.
C. Wrench tighten all the fasteners using a 5mm
hex key.
CAUTION: Do not over tighten. You can crack or warp
the Shroud if too much pressure is applied to the
fasteners.

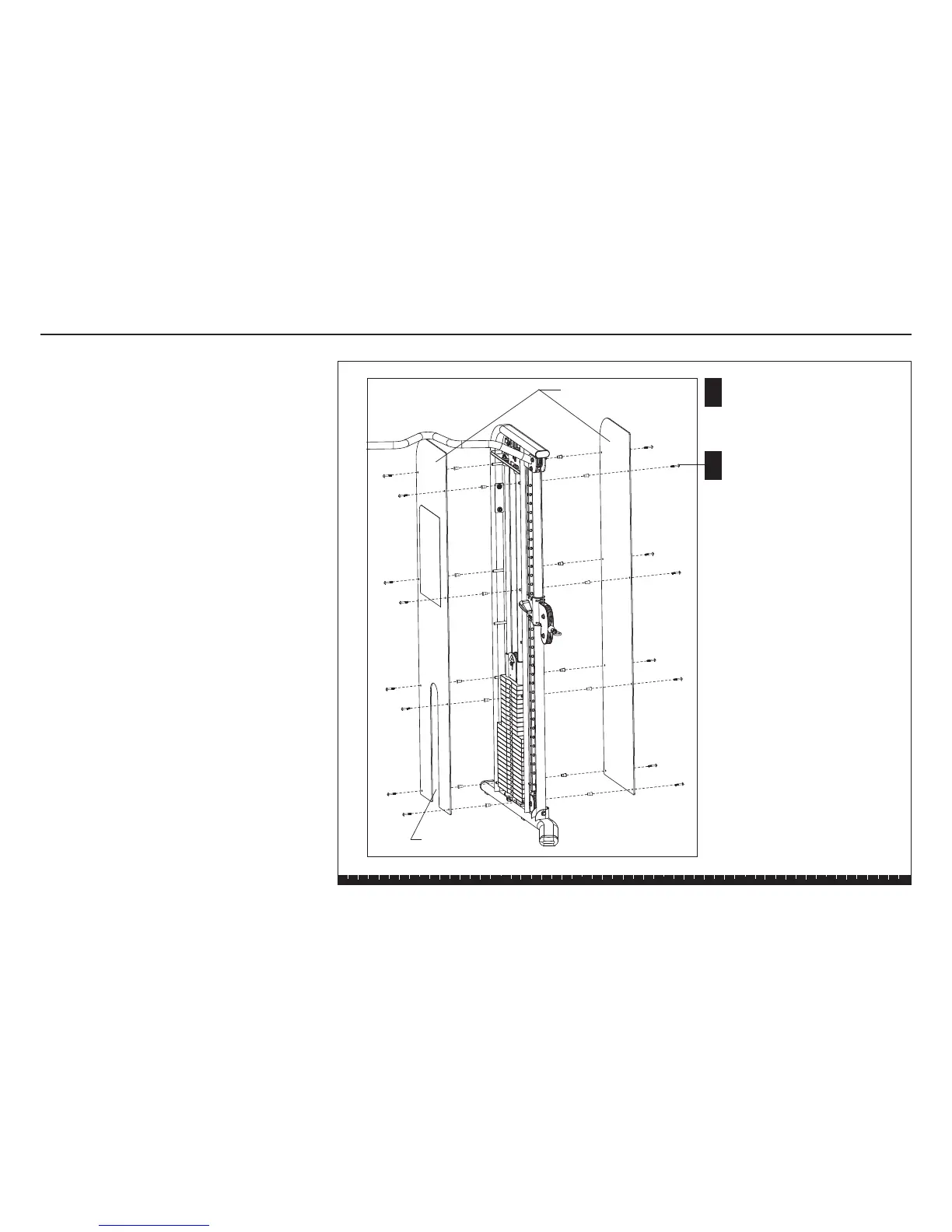

Shroud (frosted side
faces weight stack)
Cutout in Shroud
C
8 - 1³⁄₄" socket head screws per Shroud
8 - spacers per Shroud
B

Precor FTS Glide Specifications

Weight and Dimensions

length	48.5 inches (123 cm)
height	85 inches (216 cm)
width	53 inches (135 cm)
