34 Assembling and Maintaining AMT 800-Series Adaptive Motion Trainers

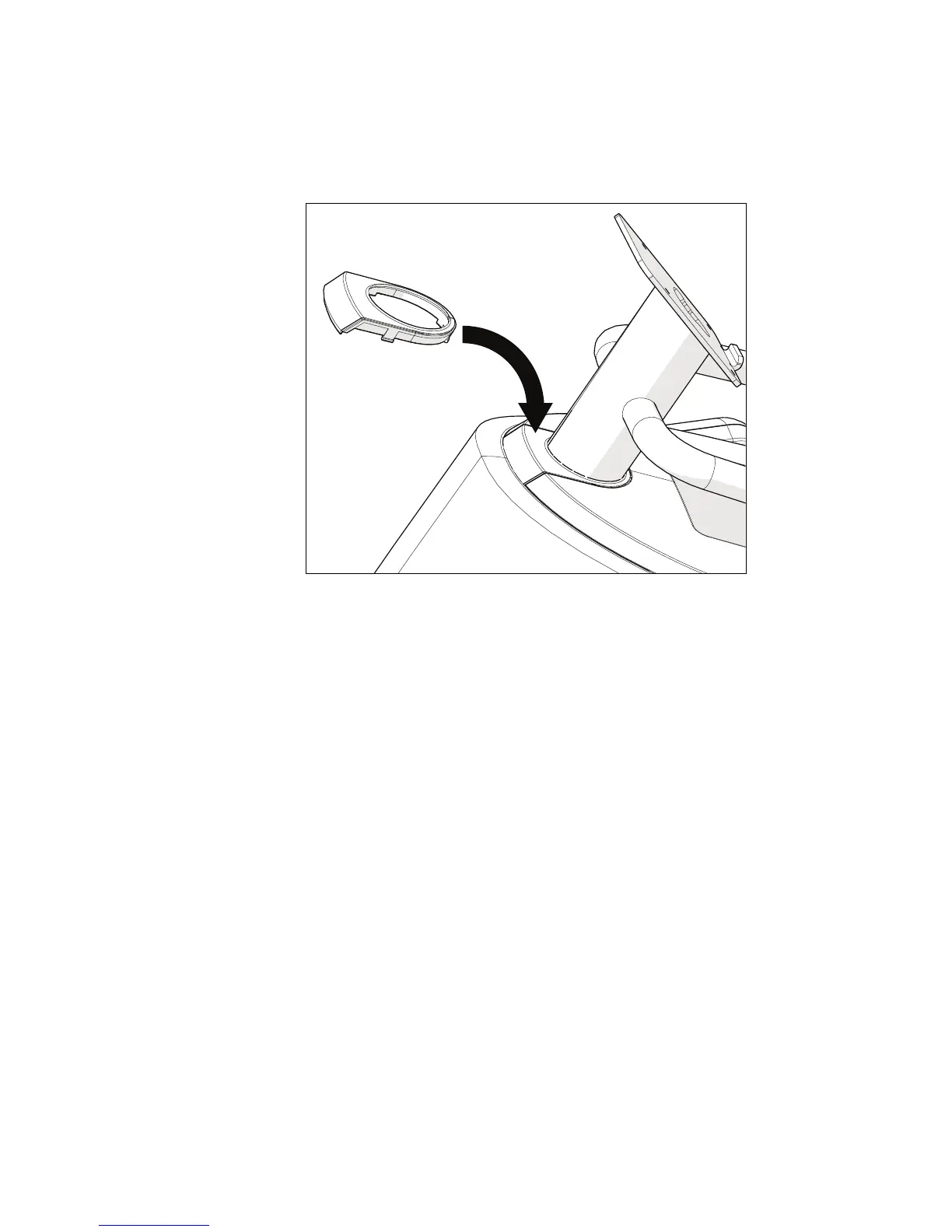

5. Wrap the moisture seal around the center column below
the heart rate sensor grips, then fit it into the top cover.
Make sure that the surfaces and edges of the moisture
seal are flush with those on the top cover.
Figure 18: Moisture seal positioning
