Assembling the AMT 27
Removing Access Covers
Removing the front and side access covers provides sufficient
space to install the console cables.
Note: If you are installing a P10 or P30 console without a
Personal Video System (PVS) or other accessory cap, you do
not need to remove any access covers. Continue with the next
section of the manual.
Important: Before continuing with the following procedure, be
sure to remove any ties or other materials that hold the side arms
in place before the supports are installed. Set aside all covers and
fasteners that you remove in this procedure for later use.
To remove the access covers:
1. Lift the moisture seal upward and remove it from the
center support.

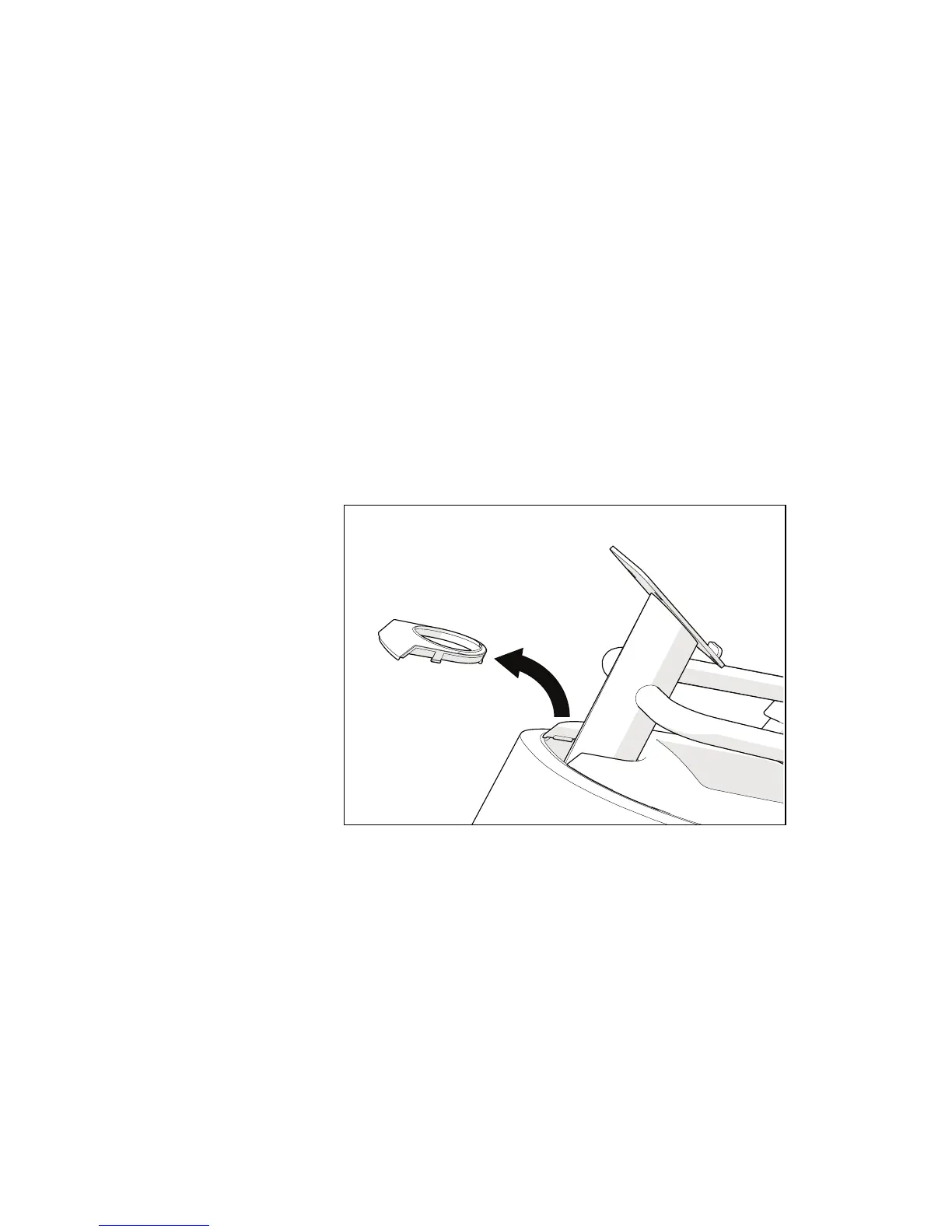

Figure 10: Moisture seal removal
