18 Assembling and Maintaining AMT 800-Series Adaptive Motion Trainers

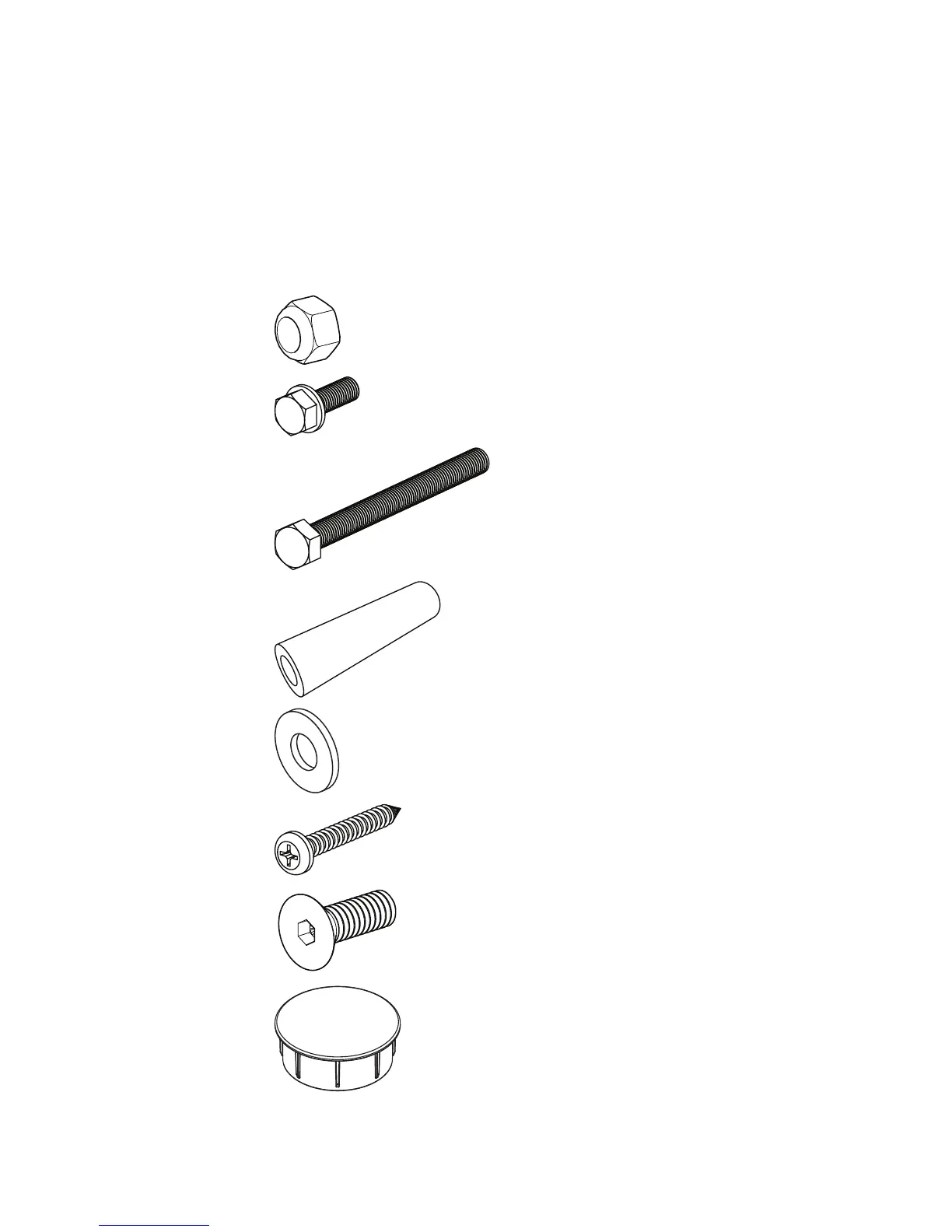

Hardware Kit (not to scale)
The hardware kit shipped with this equipment contains the
fasteners and other hardware components shown in the
following table. Before you begin assembly, make sure that
your hardware kit is complete. If not, please contact Precor
Customer Support.
Fasteners
Quantity
Nylon lock nuts (⁵₁₆-inch) 6
Hex head bolts
(⁵₁₆-inch x 1-inch)
4
Hex head bolts
(⁵₁₆-inch x 3¹₂-inch)
6
Bolt sleeve (⁵₁₆-inch) 2
Flat washers (⁵₁₆-inch) 6
Self-tapping screw (#10 x
1¹₄)
6
Flat head hex drive
screws (¹₄-inch x ⁵₈-inch)
5
End caps 2
