Assembling the AMT 39
3. Reposition the adjustable feet as needed.
If you want to … Then turn the adjustable feet …
Raise the front end of the AMT Counterclockwise
Lower the front end of the AMT Clockwise

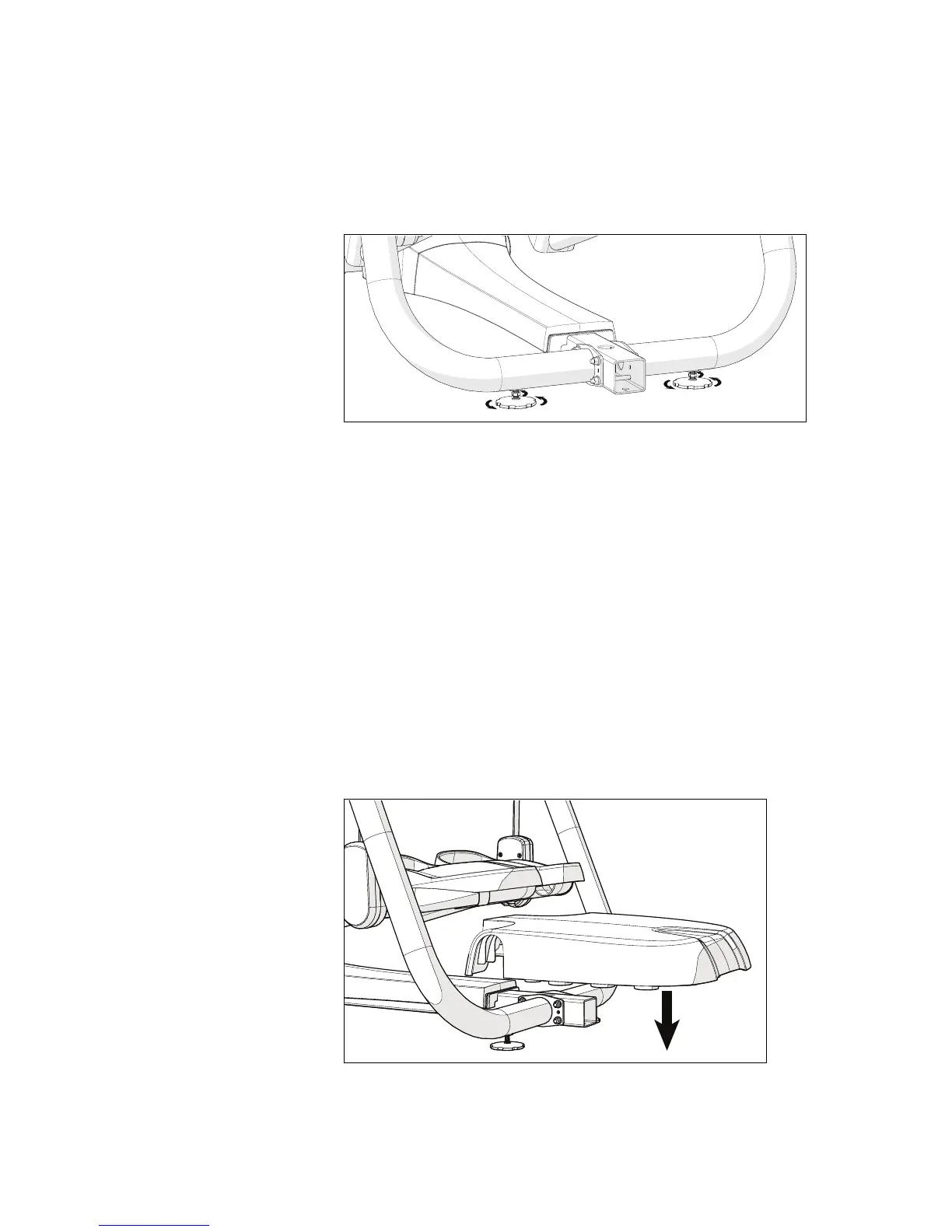

Figure 22: Location of adjustable feet and jam nuts
Important: To allow the rear pedestal to fit properly, the
adjustable feet must extend at least 2" (5 cm) below the side
arm supports. Extending the feet before you remove the
spacer block, as described in the section Adding the Side
Arm Supports earlier in this chapter, ensures that they are
positioned correctly.
4. When you are finished positioning the adjustable feet,
place the unit on the floor. Try rocking it again, as
described in step 1, to verify that it is level.
5. Using the ⁹₁₆-inch open-ended wrench, move the jam
nuts upward until they contact the side arm supports.
Tighten the jam nuts completely.
6. Align the rear pedestal over the back frame tube and the
side arm covers, then press it gently into place.
Figure 23: Rear pedestal attachment
