34 Assembling and Maintaining TRM 800-Series Treadmills
CAUTION: Be aware of the handrail extensions when you are
working around the front of the unit. It is easy to bump your head
or sustain other injuries if you ignore the location of the handrail
extensions.
To secure the fasteners:
Important: The figure at the end of this procedure shows only one
side of the treadmill. Be sure to complete each step on both sides
before you proceed to the following step.
Fully tighten the four screws that secure the edges of the
upright supports to the treadmill base, as shown in the
following figure.
Fully tighten the two screws that secure the sides of the
upright supports to the treadmill base.
Fully tighten the six screws that secure the console fairing to
the upright supports.

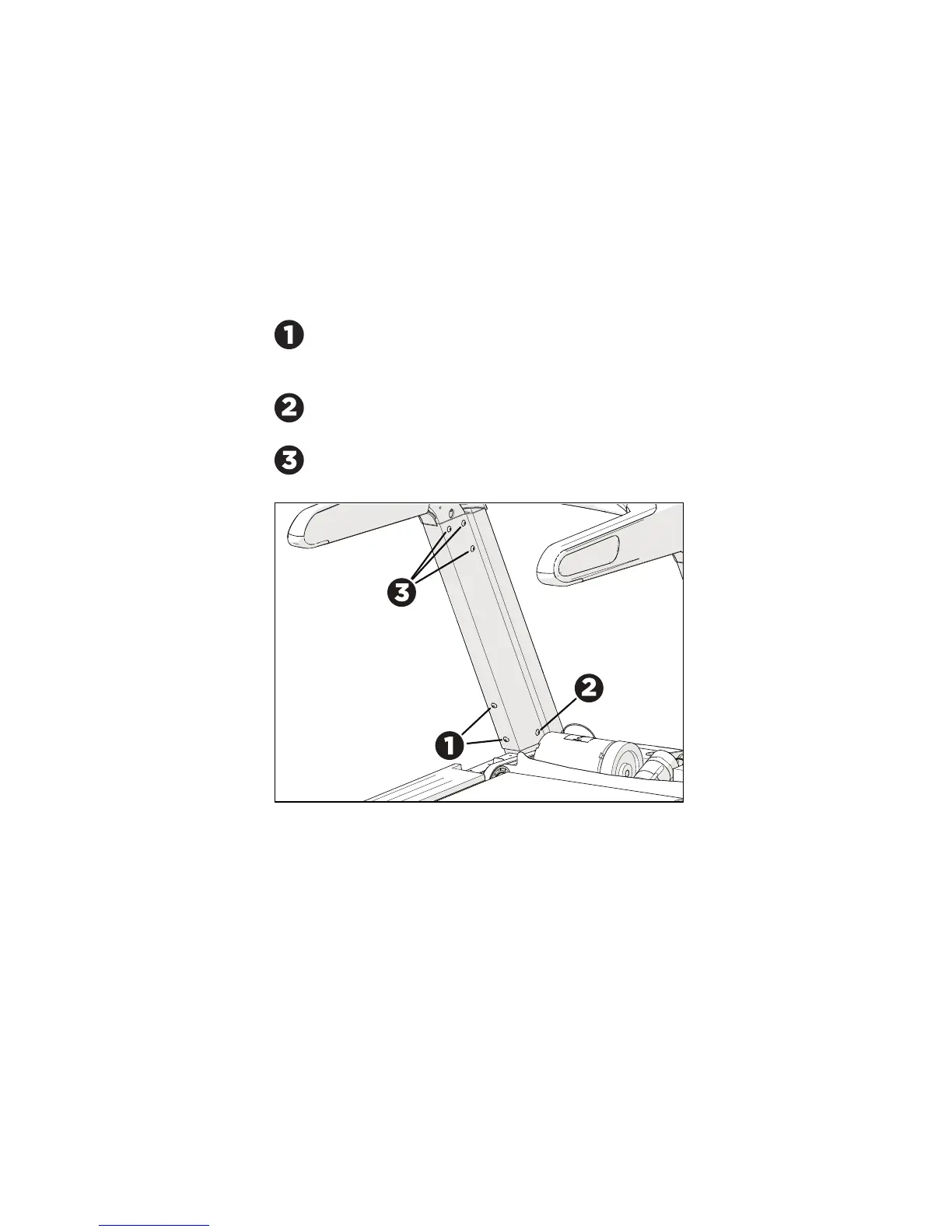

Figure 15: Tightening sequence for upright support fasteners (one
side shown)
