Installing the Console 51
Connecting Cables (P30 and P10)
Important: Pass all cables through the semicircular opening just
above the console mount, as shown in the following figure. Do not
attempt to route any cables through other openings or through the
steel channel above the mount.

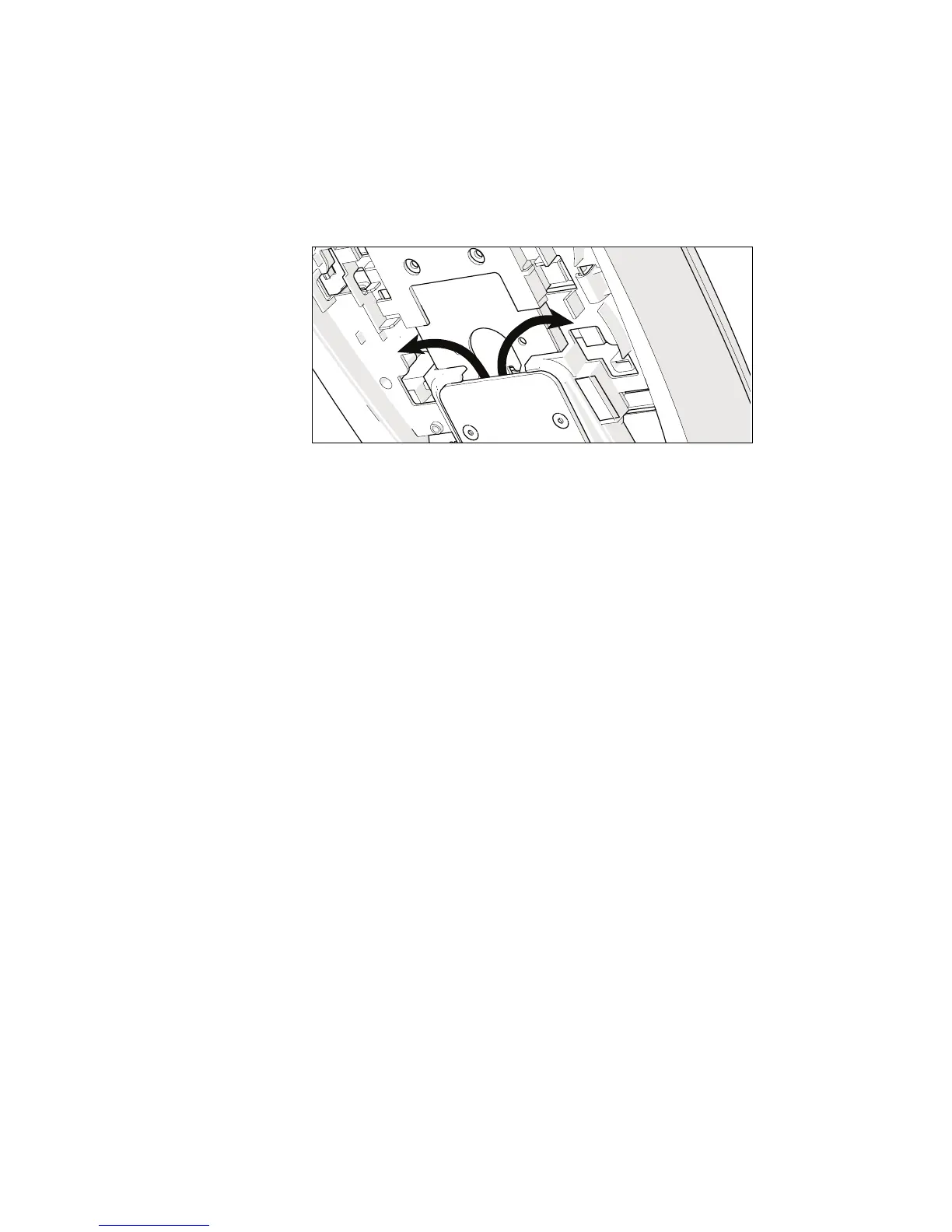

Figure 30: Cable routing from the mount into the console
After the console has been seated, separate the individual
cables out of the end of the console cable assembly and
attach them to the appropriate circuit connectors inside the
console. Refer to the following diagram and table to identify
the cables and connectors.
