50 Assembling and Maintaining TRM 800-Series Treadmills
3. Rest the console on the console mount so that the notch
on the bottom of the console’s back plate rests on the
rectangular hook at the bottom of the console mount, as
shown in the following figure.

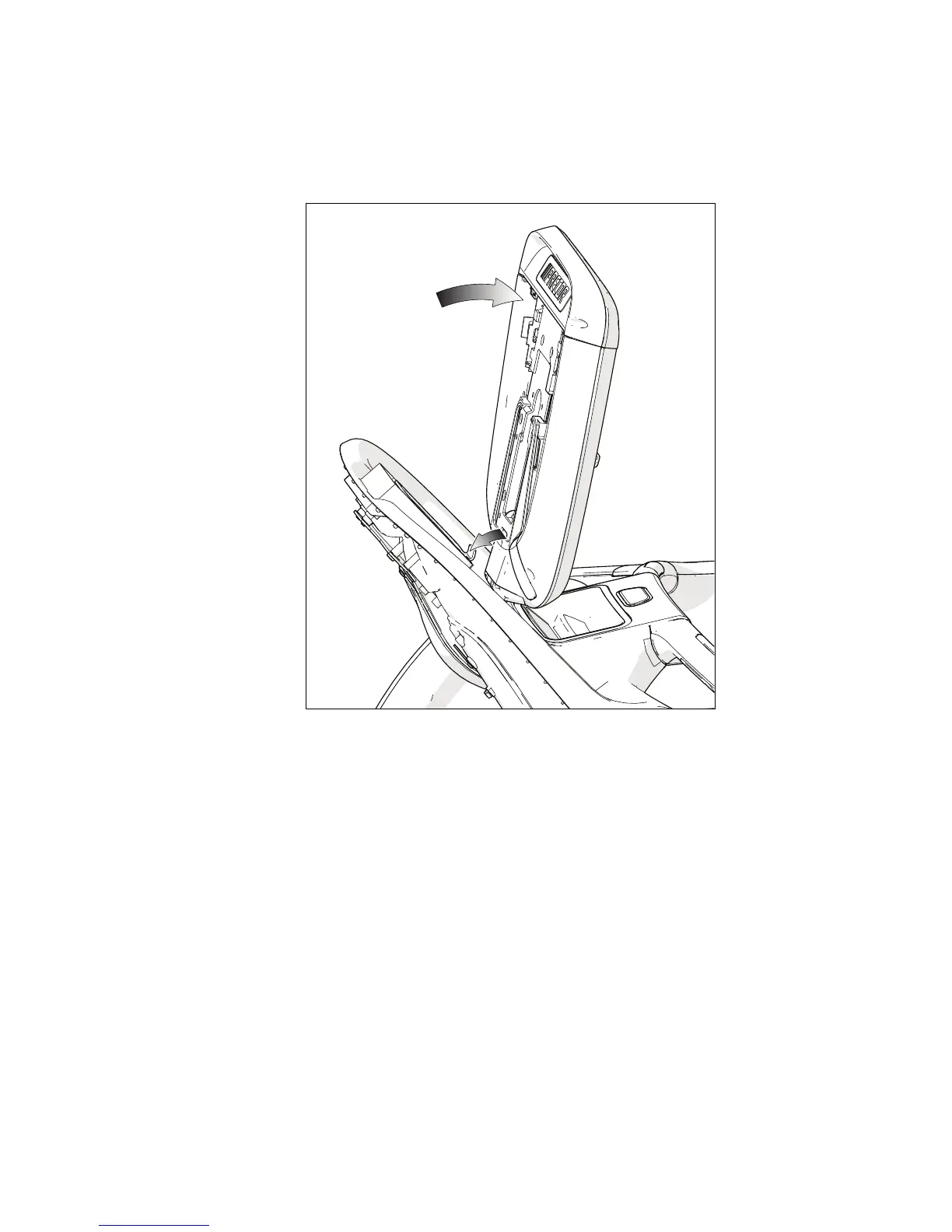

Figure 29: Console positioning for connection
4. Tilt the console forward until it stops. Use one hand to
steady the console in this position, or ask your assistant
to do so.
