Reassembling the Treadmill Fairing
After the console is in place, reattach the two cover panels of
the treadmill fairing.
Important: In the following procedure, do not allow the fasteners
to break or pinch any cables.
To reassemble the fairing:
1. Verify that all cables are secure inside the cable ties.
2. Install one of the access covers over the opening above
the appropriate upright support. Slide the two tabs under
the edge of the opening as shown in the following figure.

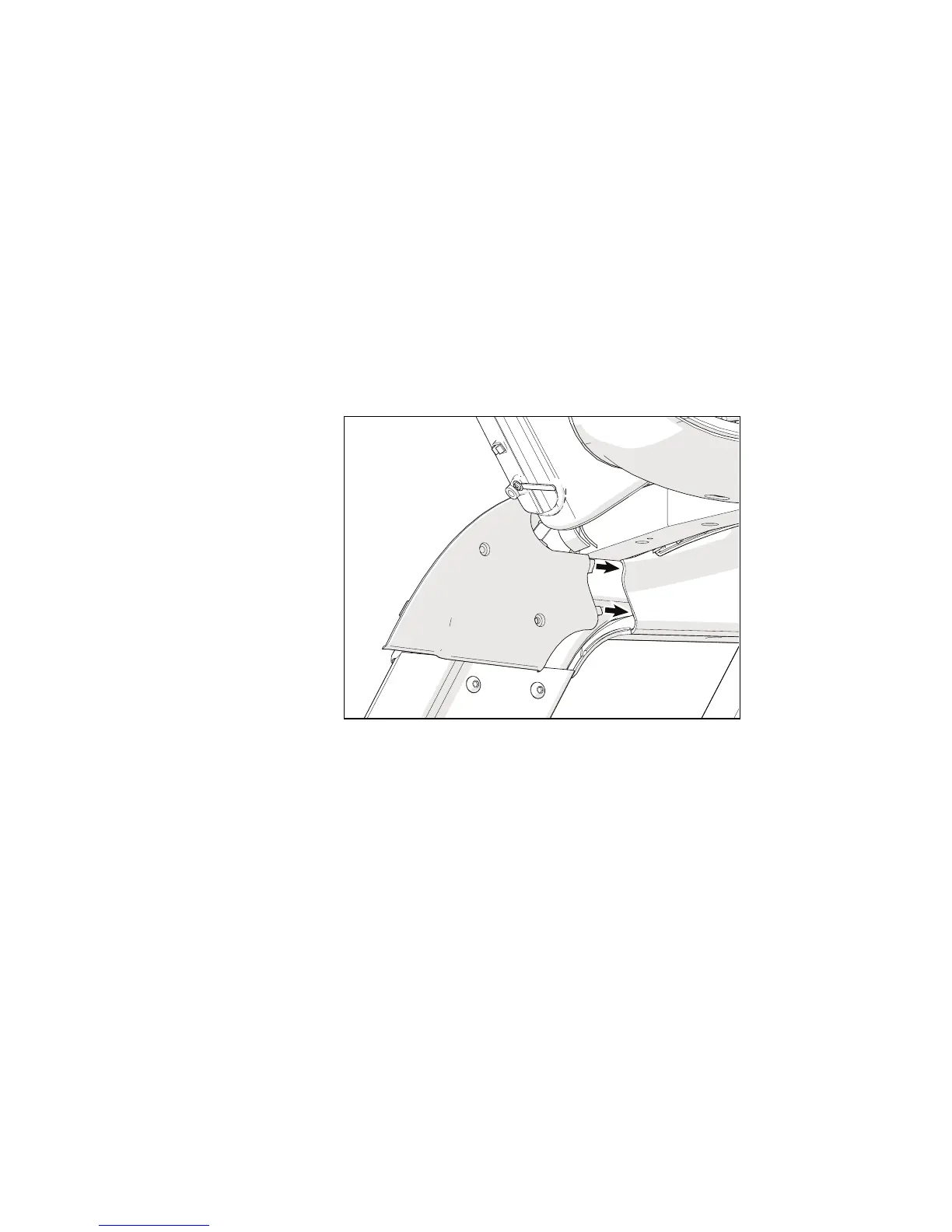

Figure 33: Access panel positioning
3. Secure the access cover with two ¹₄-inch × 1-inch
buttonhead screws.
