Assembling the Treadmill 33
Completing Assembly
After the upright supports and the fairing are in place, tighten
the upright support fasteners and replace the hood as
described in the following procedures.
WARNING
Before you finish assembling the treadmill
base, examine the electrical bleed line
between the belt motor and the frame. Make
sure the bleed line is connected securely to
both the motor and the frame as shown in
the following figure, and verify that it is not
damaged.
DO NOT connect the treadmill to electrical
power while the hood is removed.

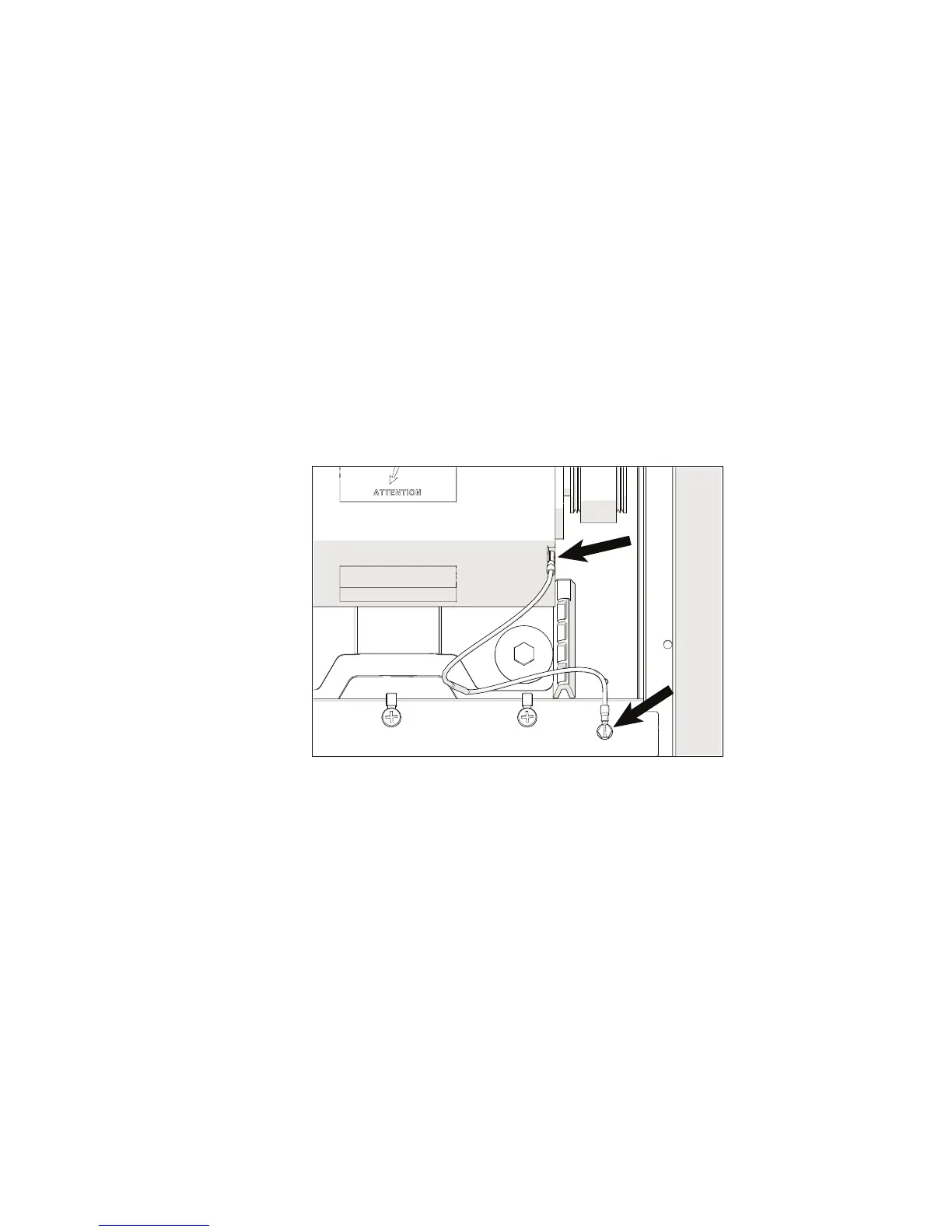

Figure 14: Electrical bleed line connection points
