52 Assembling and Maintaining TRM 800-Series Treadmills
Important: All cables must pass through the opening in the
center of the console mount.
2

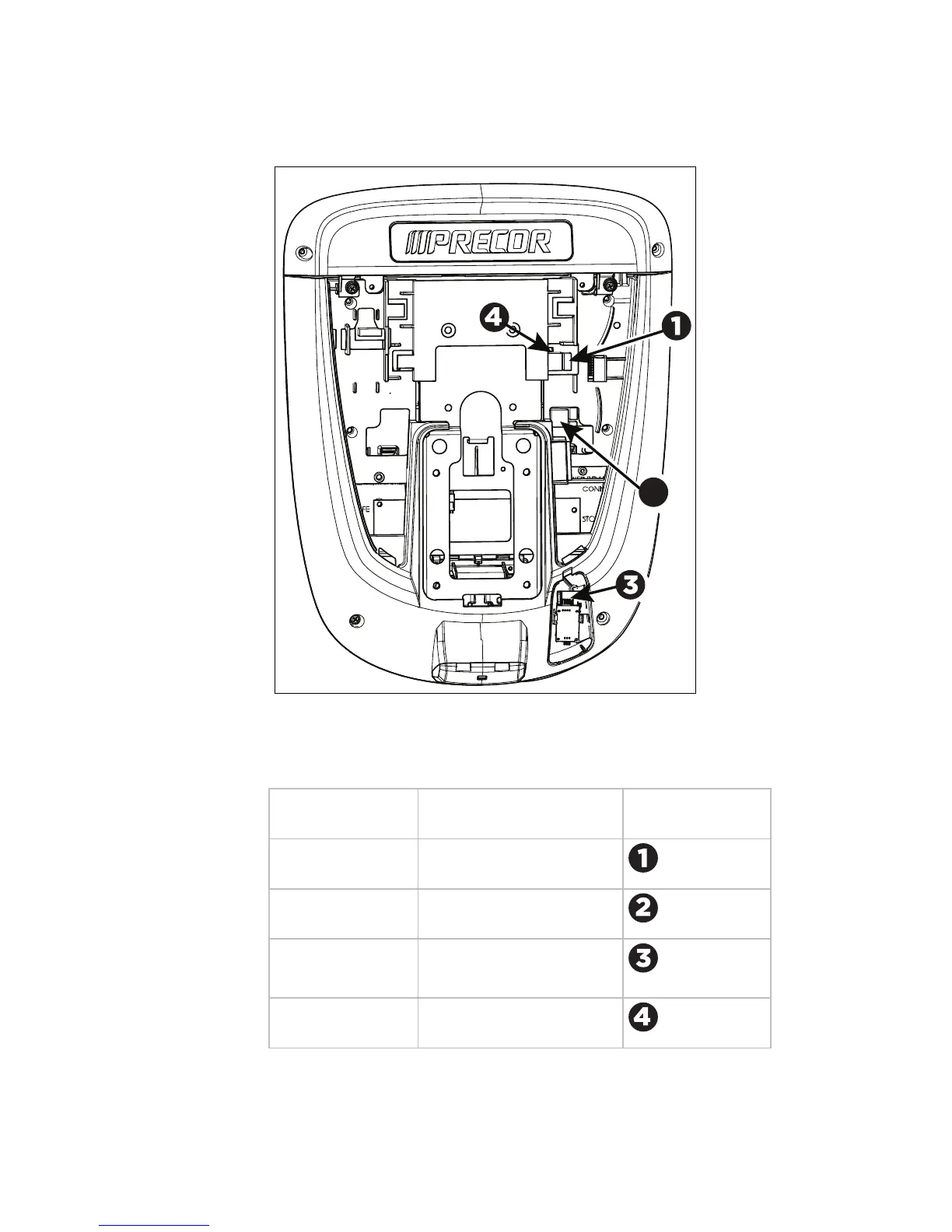

Figure 31: Cable connections, P30 and P10 consoles
Table 3. P30 and P10 internal cable connections
Cable Connector Type Circuit Connector
Location
Safety key
(treadmills only)
Six-contact strip, keyed
Data from base
unit
Eight-contact modular, on
flat gray cable
Heart rate sensors
Four-contact strip, keyed
CSAFE Eight-contact modular, on
flat gray cable
