Installing the Console 57
6. Fit the rear cover into place. Secure it using four ¹₄-inch ×
³₄-inch self-tapping panhead screws.

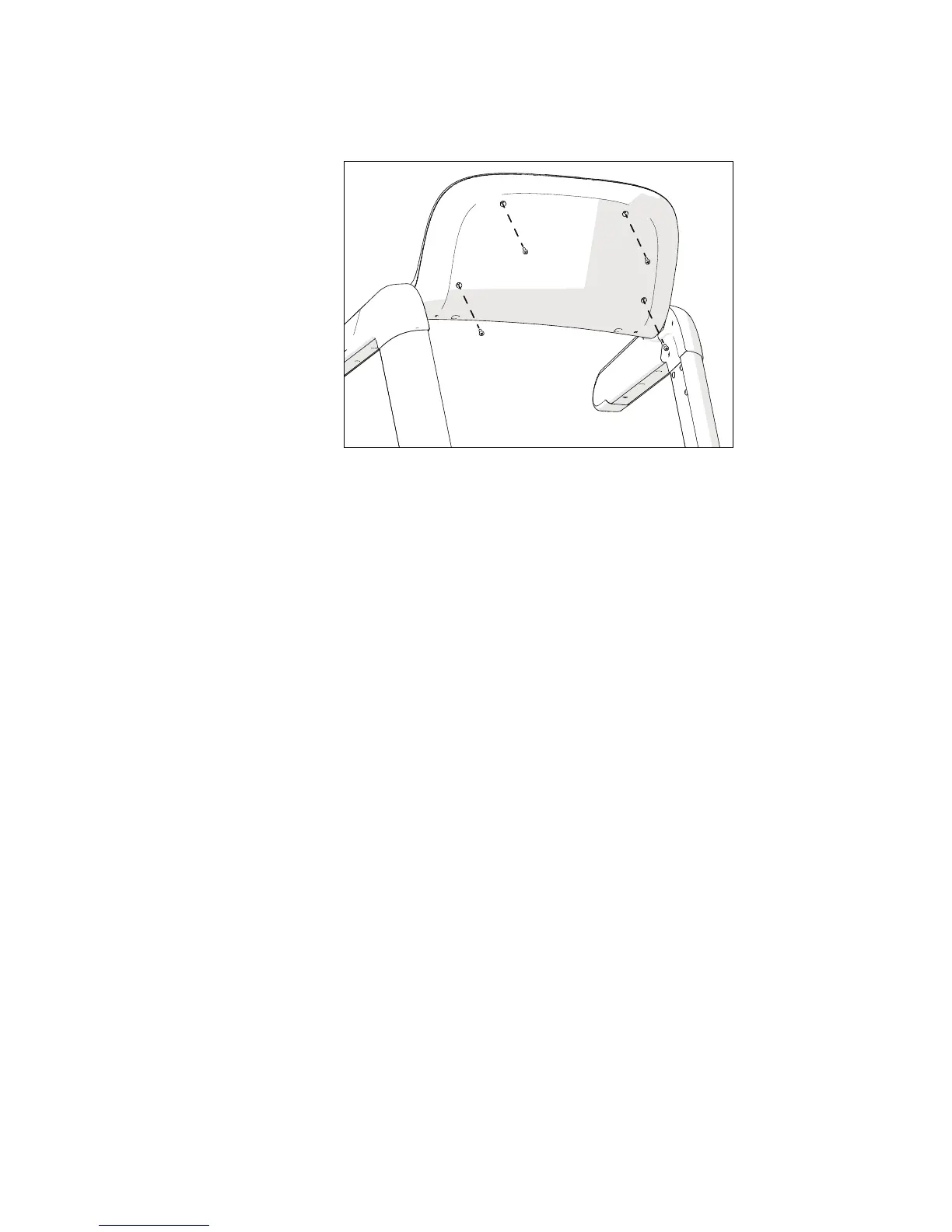

Figure 36: Rear cover attachment
Important: Make sure that all of the edges of the rear cover
are seated correctly and are flush with the surrounding panels
before you tighten the cover’s mounting screws.
7. Tighten all six rear cover screws using a #3 Phillips
screwdriver.
