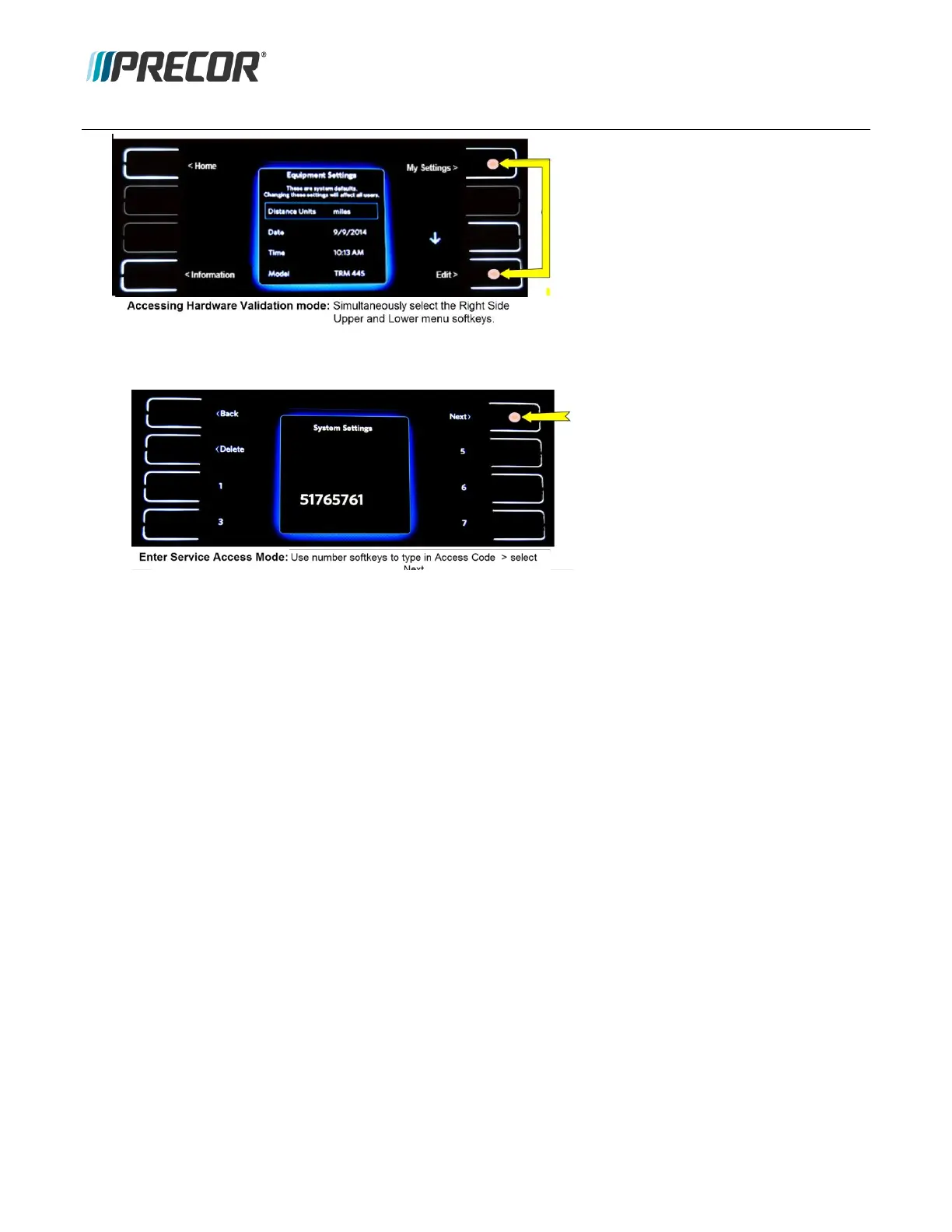

4. Use the numbered softkeys to type in the Service Software Access Code:
- 51765761 – Hardware Validation - Systems Tests
- 65 – Information and Error Log
5. Select Next.to access the Service software.
Hardware Validation (Access Code 51765761)
Hardware Validation service software provides a set of system tests used to verify proper operation of the console
and base hardware. System tests can also be used to troubleshoot and resolve problem issues.
Available System Tests:
Display GUI/Metric Tests
o Backlight brightness changes
o Numerals cycle properly
Key Test
o Keys all function
Heart Rate Test
o Heart rate is acquired and displayed
Belt Speed Test
o Running belt moves and is controlled from 0.5mph to 12.0mph in 0.1 increments
Incline Test
o Lift goes up and down and the A/D value is:
o 37 ±5 @ 0% incline
o 13 ±5 @ -2% incline
o 242 ±5 @15% incline
Performing System Tests
