©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide
11

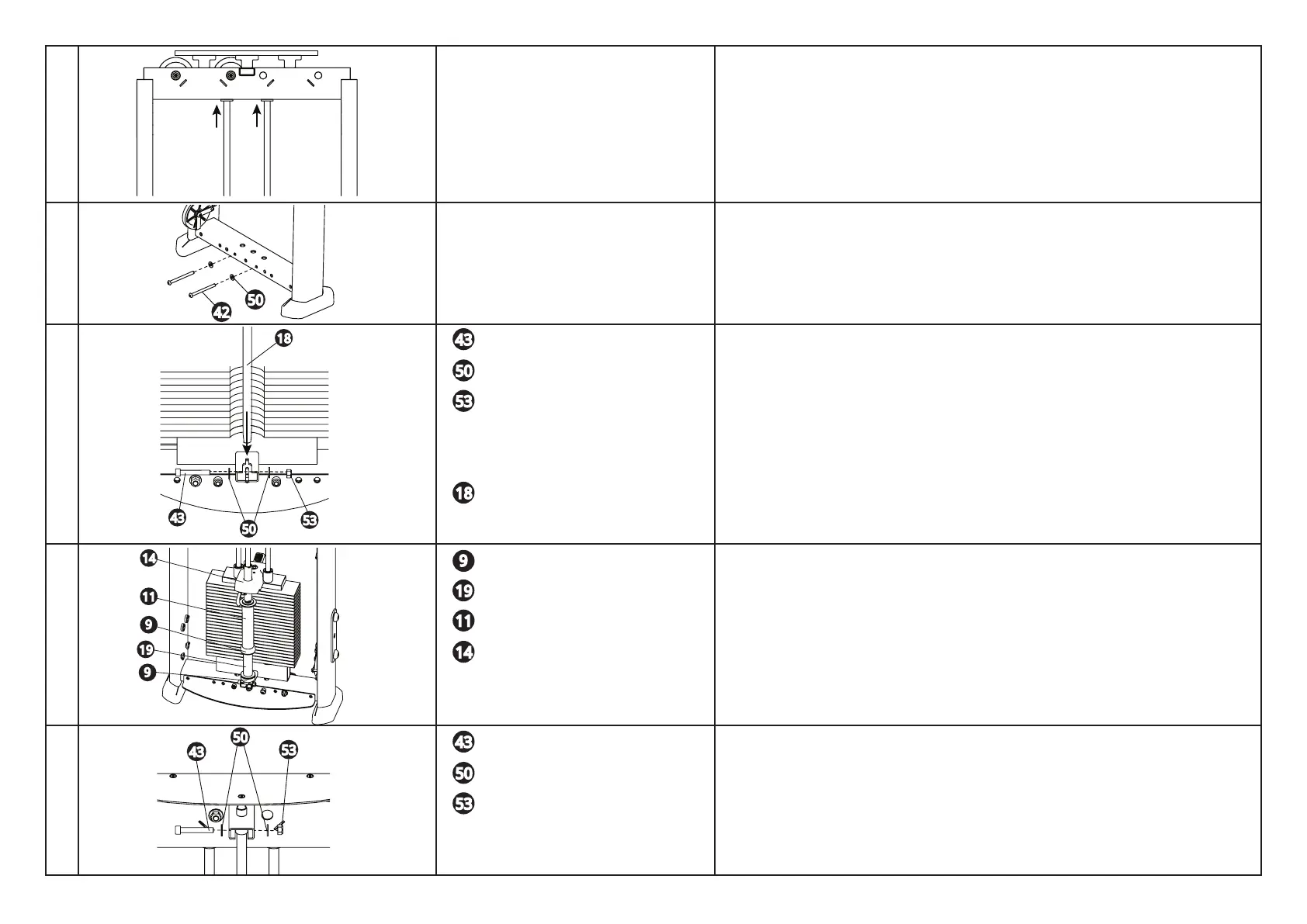

4 Straighten the guide rods to a vertical position. Have your assistant lift the guide
rods into the upper part of the frame.
5 Tools: Hex wrench, 6 mm
Torque wrench
While the assistant is holding the rods into the upper frame, replace the two
guide rod bolts, removed in step 1, underneath the guide rods in the bottom
frame. Secure them to the kick plate. Let the guide rods drop onto the bolts and
fully tighten the bolts. Tighten M10 screws to 32 ft-lb (43 N-m) of torque.
6 1 M10 x 65 mm SHCS
2 washers, 11 mm
1 M10 nylon lock nut
Tools: Hex wrench, 8 mm
Socket wrench, 17 mm
1 guide rod with cap
Prepare the lower base for the add-on weight assembly. Place the retaining
screw through the bracket on the weight stack spacer.
Remove the cap from the guide rod and place the rod into bracket opening se-
cured by the screw.
7 2 bumpers
1 add-on weight spacer, 5-inch
1 add-on weight
1 add-on weight handle
Place one bumper onto the third guide rod, followed by the add-on weight spac-
er, another bumper, the add-on weight, and the add-on weight handle.
8 1 M10 x 65 mm SHCS
2 washers, 11 mm
1 M10 nylon lock nut
Tools: Hex wrench, 8 mm
Socket wrench, 17 mm
Replace the cap to the top of the rod and secure top of rod to weight stack tower
frame.
9
14
53
18
43
50
9
14
11
9
19
50
43
53
11
43
50
53
18
19
43
50
53
42
50
