©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide
6
3 2 M12 x 125 mm SHCS
2 washers, 13 mm
Tool: Hex wrench, 10 mm
2 M12 x 35 mm SHCS
2 washers, 13 mm
Tool: Hex wrench, 10 mm

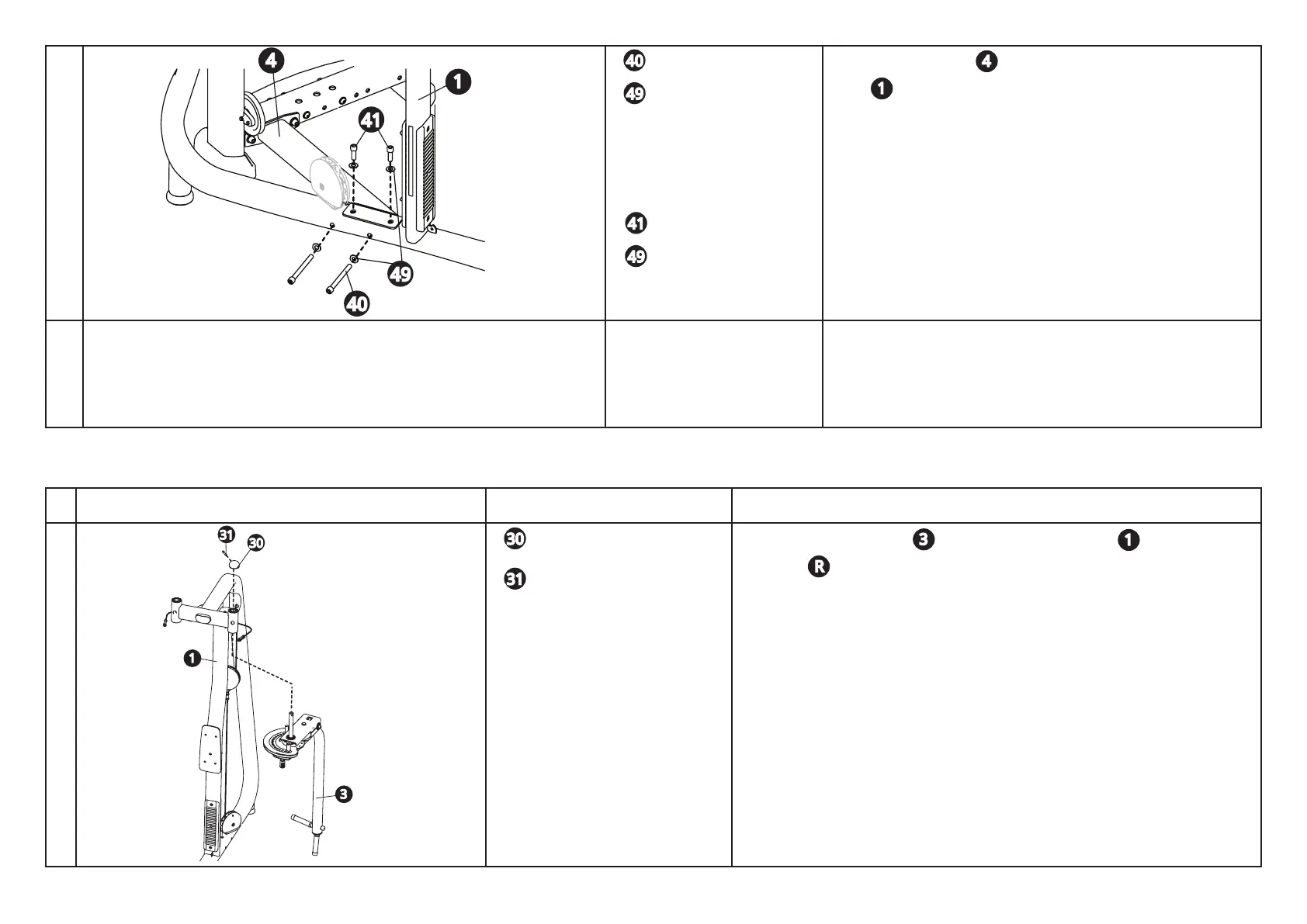

The lower cross brace connects in two locations to the main
frame . Connect the lower cross brace to the main frame rst
from the outside of the main frame with the long, horizontal
fasteners.
Next, connect the vertical fasteners through the top of the low-
er cross brace to the main frame.
4 Tools: Hex wrench, 10 mm
Socket wrench, 19 mm
Torque wrench
Gently rock the frame to align. Tighten all M12 fasteners to a
torque of 55 ft-lb (75 N-m).
Do not tighten the M10 screws installed in step 2 at this time.
They will be removed temporarily in a later step.
1
4
40
49
41
49
40
1
49
4
41
Moving Parts
Image Hardware Instructions
1 1 end cap
1 shoulder bolt
Tool: Hex wrench, 4 mm
Insert right arm assembly shaft rst into main frame for stability.
Match the labels on arm and main frame. Top with end cap and secure.
30
1
3
31
L
R
R
3
30
31
1
R
