©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide
7
2 1 end cap
1 shoulder bolt
Tool: Hex wrench, 4 mm

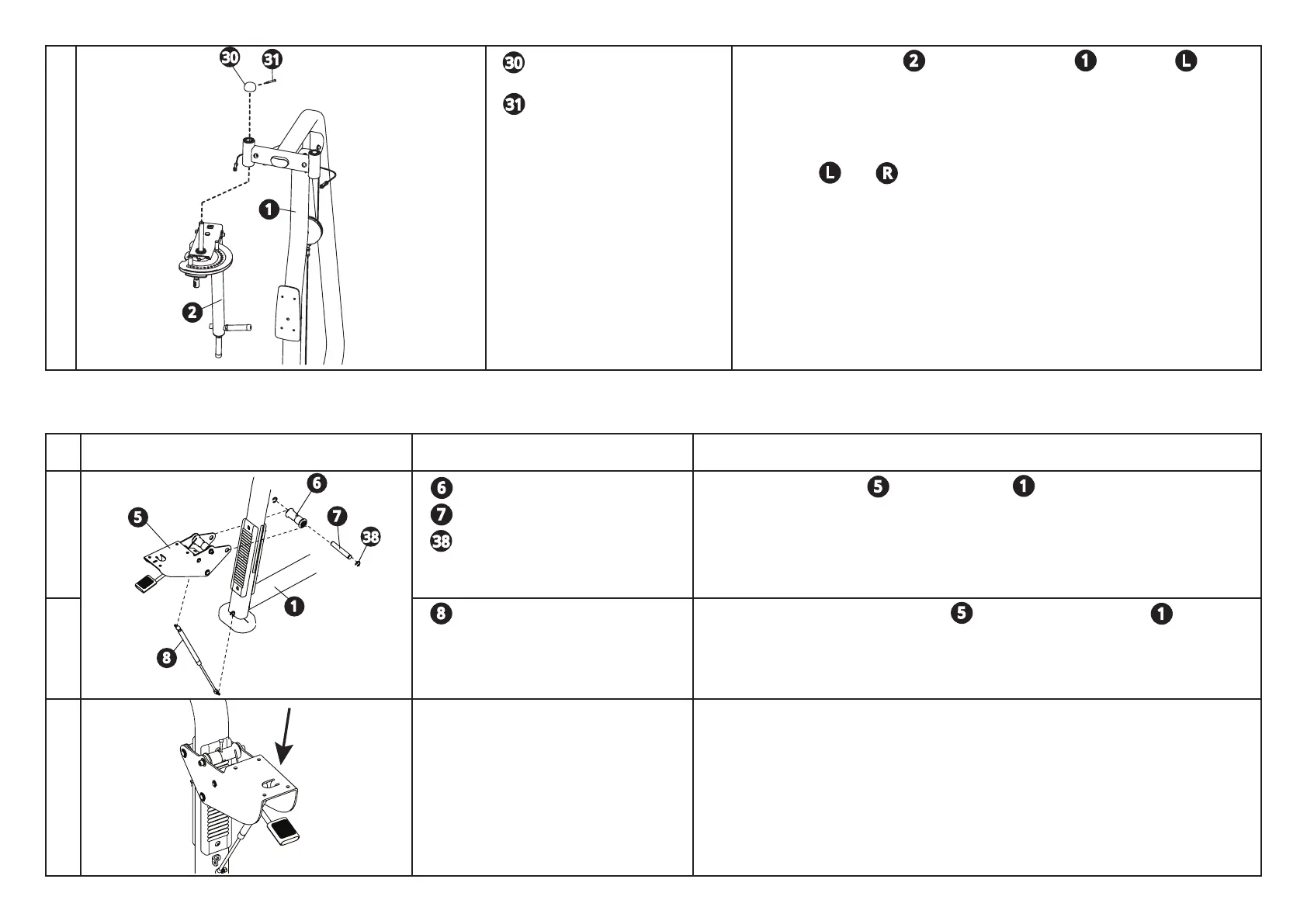

Insert left arm assembly shaft into main frame . Match the labels
on arm and main frame. Top with cap and secure.
Remove all and labels.
30
31
1
L
2
30
31
1
2
L
R
Seat Assembly
Image Hardware Instructions
1 1 roller assembly
1 shaft
2 retaining rings, 3/4-inch
Tool: Pliers
Attach the seat assembly to the main frame . Place the roller assembly
between the seat assembly brackets and insert the shaft. Secure each side with
retaining rings.
2 1 gas spring Snap gas spring into place under seat and at base of main frame . The larger
body of the gas spring attaches to the seat.
3 To adjust the roller clearance on the seat assembly, have your assistant apply force
downward on seat.
1
6
7
8
1
5
1
6
7
38
8
5
38
5
L
R
