©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide
5

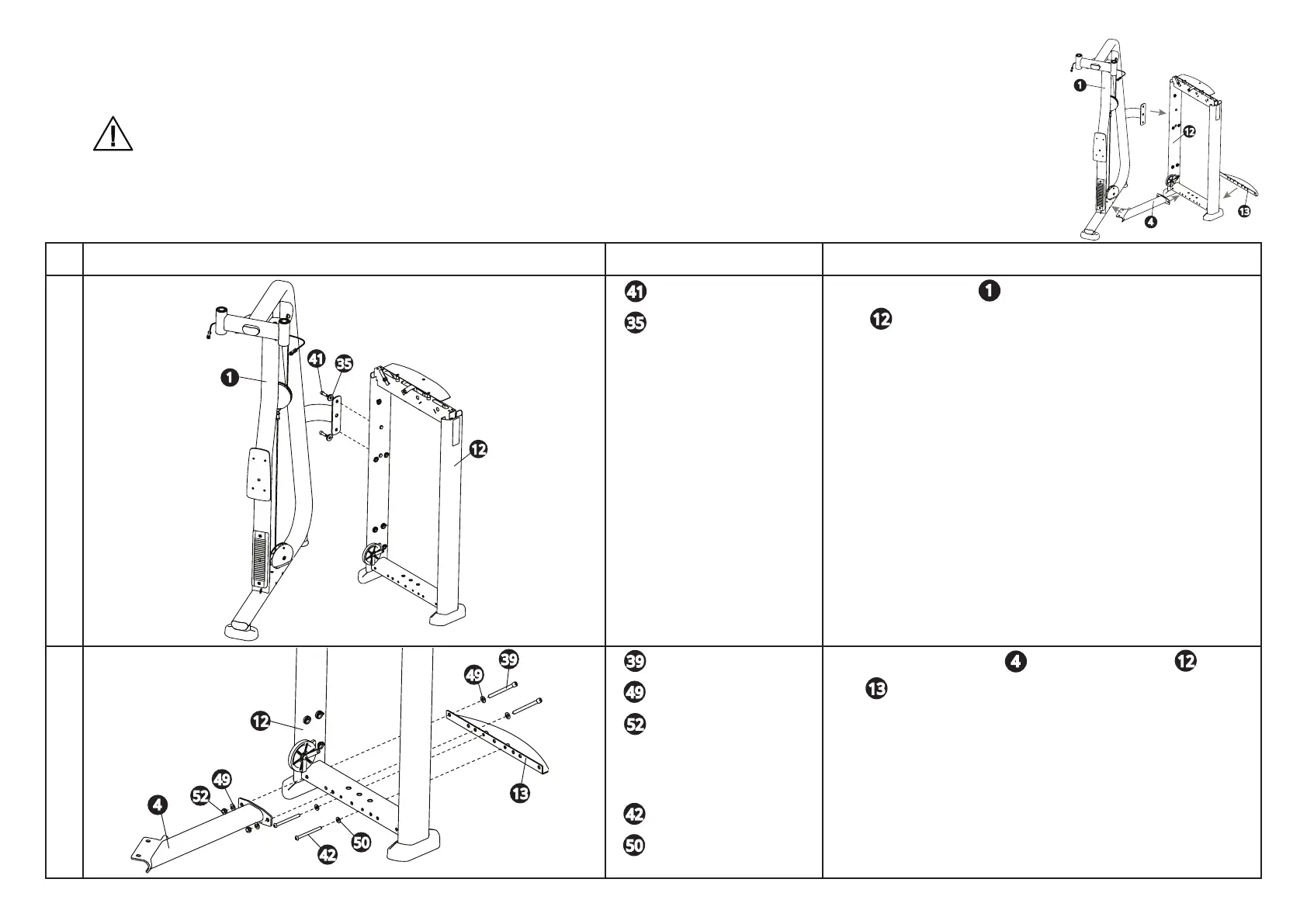

Frame Assembly
DO NOT tighten fasteners until instructed to do so.
Have your assistant hold frame parts in place during assembly.
Image Hardware Instructions
1 2 M12 x 35 mm SHCS
2 washers, domed
Tool: Hex wrench, 10 mm
Attach the main frame to the side of the weight stack
tower .
2 2 M12 x 130 mm SHCS
4 washers, 13 mm
2 M12 nylon lock nuts
Tools: Hex wrench, 10 mm
Socket wrench, 19 mm
2 M10 x 125 mm BHCS
2 washers, 11 mm
Connect lower cross brace to weight stack tower and kick
plate . Insert the fasteners from the outside of the kick plate.
Align to far left hole under pulley.
Insert both guide rod fasteners from user side to align kick plate.
Hand tighten only. These will be removed temporarily in a later
step.
1
41
1
35
12
13
4
12
39
49
42
50
49
52
12
35
39
4
42
49
41
50
13
52
12
4
1
12
13
