©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide
8

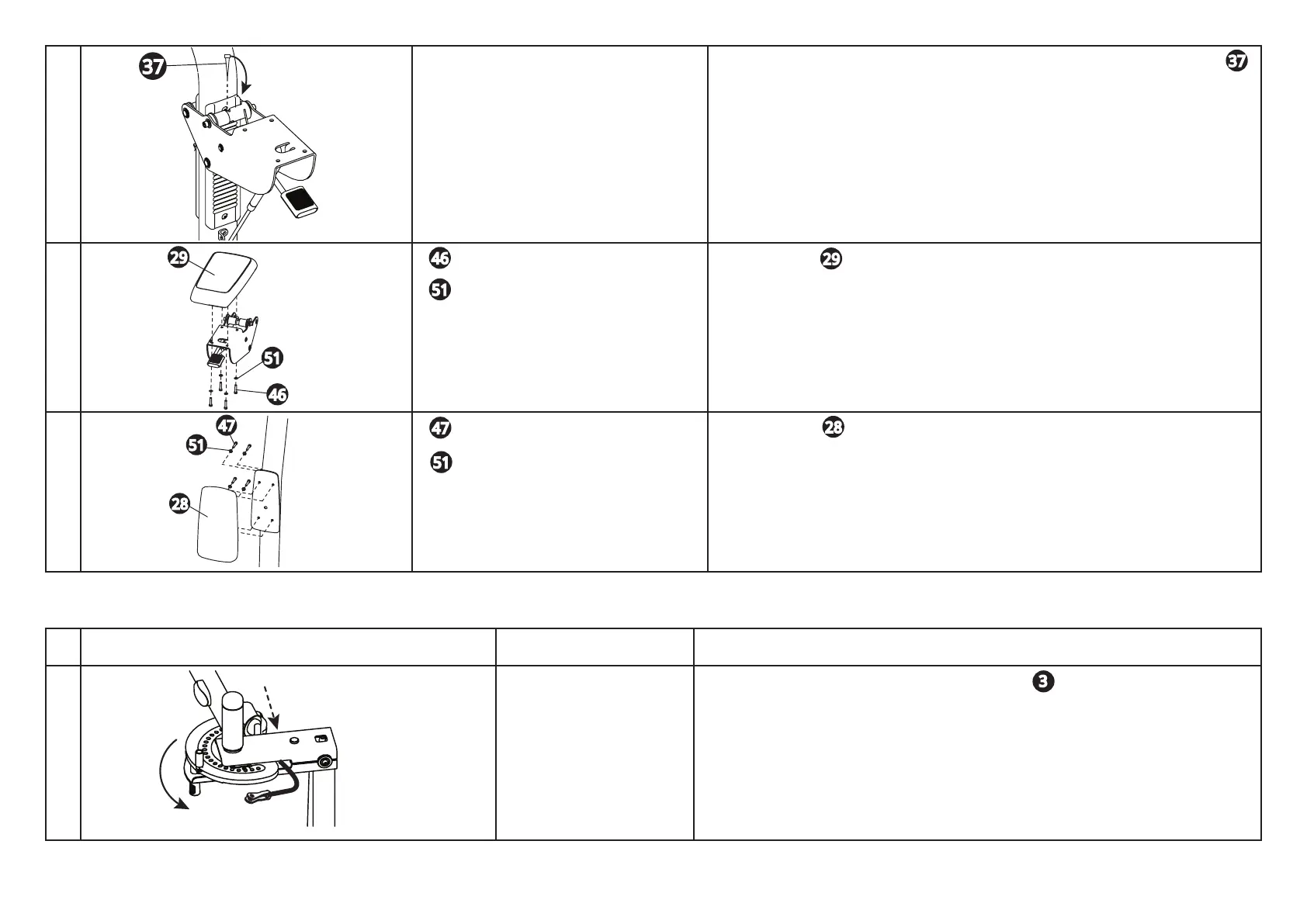

4 Tools: Two hex wrenches, 8 mm Preinstalled on the front roller of the seat assembly is a roller adjustment tool .
Continue to apply force to the seat assembly and press the adjustment tool down-
ward to turn the roller. Turn until it just contacts the plastic ratchet plate and no
more than 180 degrees. Tighten the socket head screws on the sides of the front
roller (ensure the position of the roller tool does not change). Remove tool.
5 4 hex head screws 5/16 x 1½-inch
4 washers, 9 mm
Tool: Socket wrench, ½-inch with extension
Attach seat pad with the seam towards the frame.
6 4 BHCS 5/16 x 1½-inch
4 washers, 9 m
Tool: Hex wrench, 3/16-inch
Attach back pad with the seam down towards seat.
37
29
51
46
47
28
51
28
29
46
47
51
51
Route the Cable
Image Hardware Instructions
1 Pull the pop pin handle on the right arm assembly and rotate it outward. Then
feed the upper cable through the arm.
3
37
