©2019 Precor Inc. | Rear Delt/Pec Fly RSL 505 | Assembly Guide
13
Image Hardware Instructions
1 Snap the lower pulley shroud onto the lower front shroud . Place
the lower inside shroud with pulley cover into frame and hook onto but-
tons.
2 1 M6 x 15 mm SHCS
Tool: Hex wrench, 4 mm
Secure lower pulley shroud.
3 Place the lower rear shroud onto the frame. Raise it enough to hook
over buttons.
4 Install the rear middle shroud . Slide it over the triangular tabs of the
lower shroud and hook it onto middle buttons.
Repeat for the front middle shrouds .
5 Install the upper rear and front shrouds . Ensure to hook them
over the buttons and spacers.
6 2 M10 x 40 mm SHCS
Tools: Hex wrench, 8 mm
Torque wrench
Place shroud crown on top and secure. Recommended bolt torque
is 25 ft-lb (34 N-m).
7 Securely snap top tray into place.

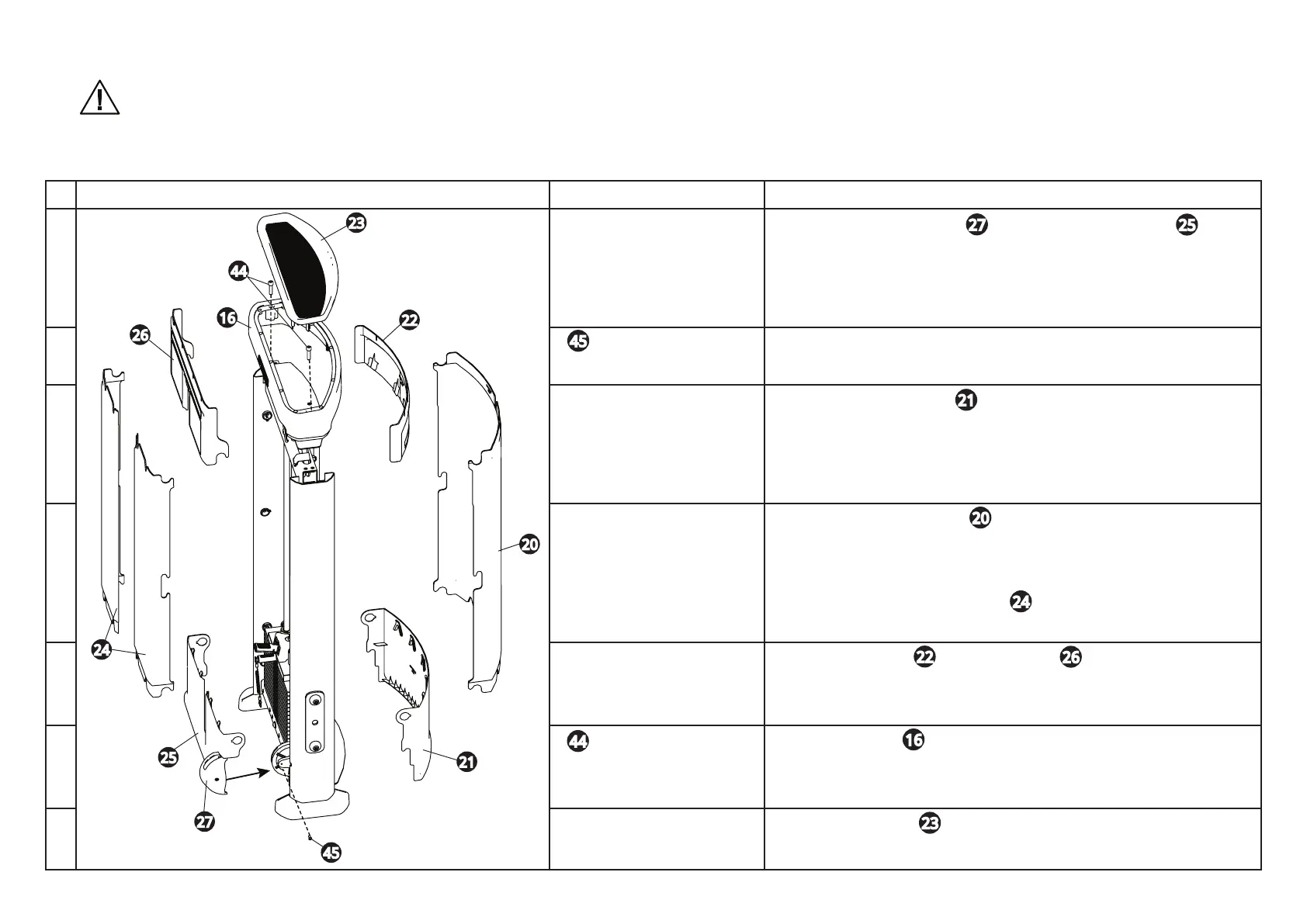

Install the Shroud
16
20
21
22
24
25
26
27
44
45
45
27
25
21
20
24
16
44
23
26
22
23
IMPORTANT
Before installing the shroud, ensure that cable connections are correct and cables move smooth through their paths. If they do not,
STOP and adjust cable and routing. In addition, ensure all fasteners (including those preinstalled) are tightened appropriately.
Note The location of the lower pulley cover will vary depending on the model.
