Assembling the StretchTrainer 13
Assembling the Seat Frame and Pads
Put the seat frame assembly (seat frame, padded seat, seat
bumper, and knee pad) together before you attach it to the
base rails.
To attach the padded seat:
1. Remove the four bolts and four flat washers from the
underside of the padded seat.
2. Position the padded seat on the seat plate with the
narrow end of the seat toward the floor. Secure the lower
end of the padded seat to the seat plate using two bolts
and two washers removed in step 1.

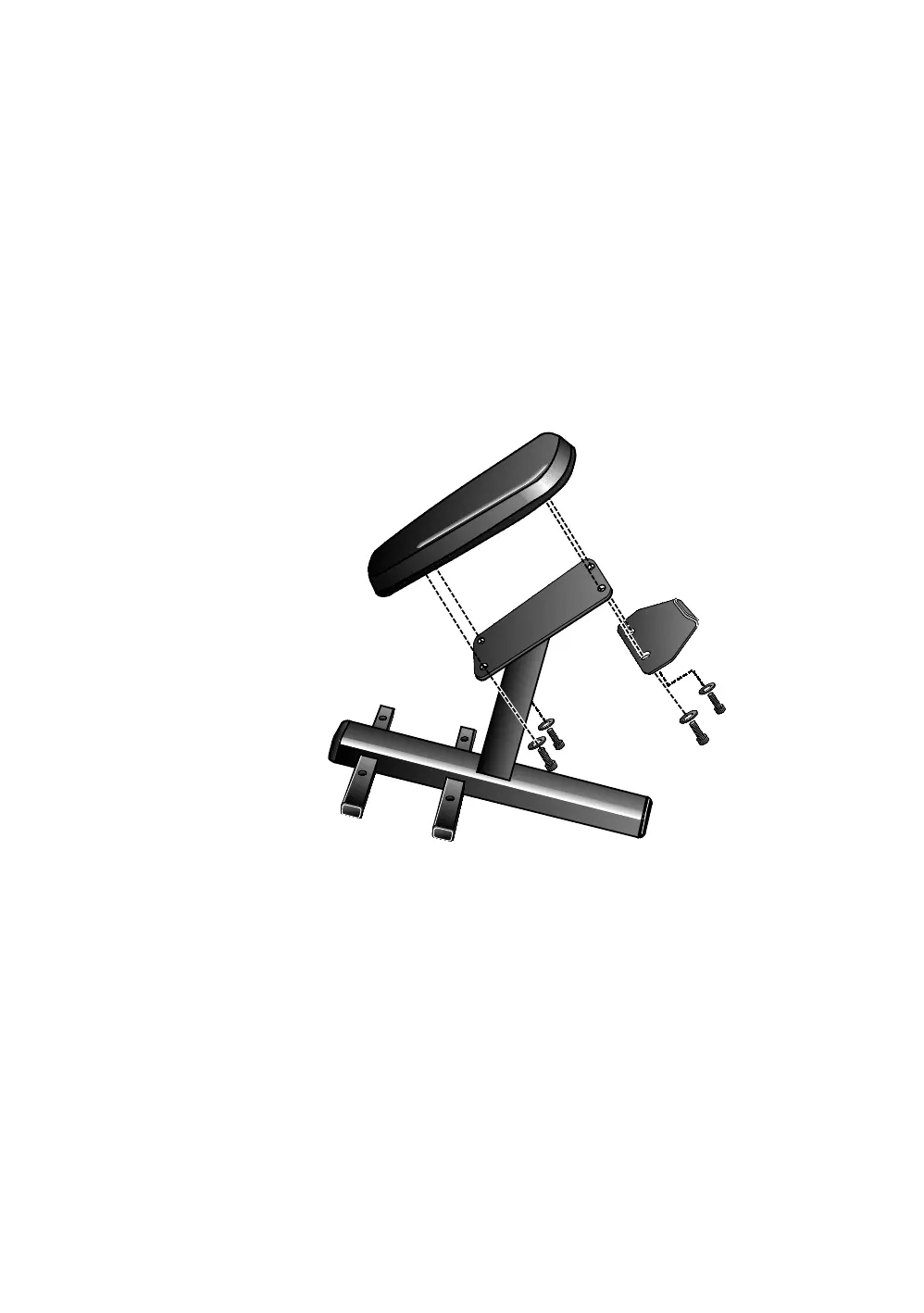

Figure 6: Padded seat attachment
3. Position the seat bumper against the back of the seat
plate so that the holes align with the holes in the seat
plate and padded seat. Secure it using two bolts and two
washers removed in step 1. To keep the padded seat
aligned properly, alternately partially tighten each bolt.
Note: There will be a small space (about ¹₈ inch) between
the bumper and the padded seat.
4. After the padded seat is secured and properly aligned,
tighten each bolt using a 6mm hex wrench.
Important: Do not overtighten the bolts.
