14 Assembling and Maintaining the StretchTrainer
To attach the knee pad:
1. Remove the four bolts and four flat washers from the
underside of the knee pad.
2. Align the holes on the bottom of the knee pad with the
mounting holes in the crossbar.

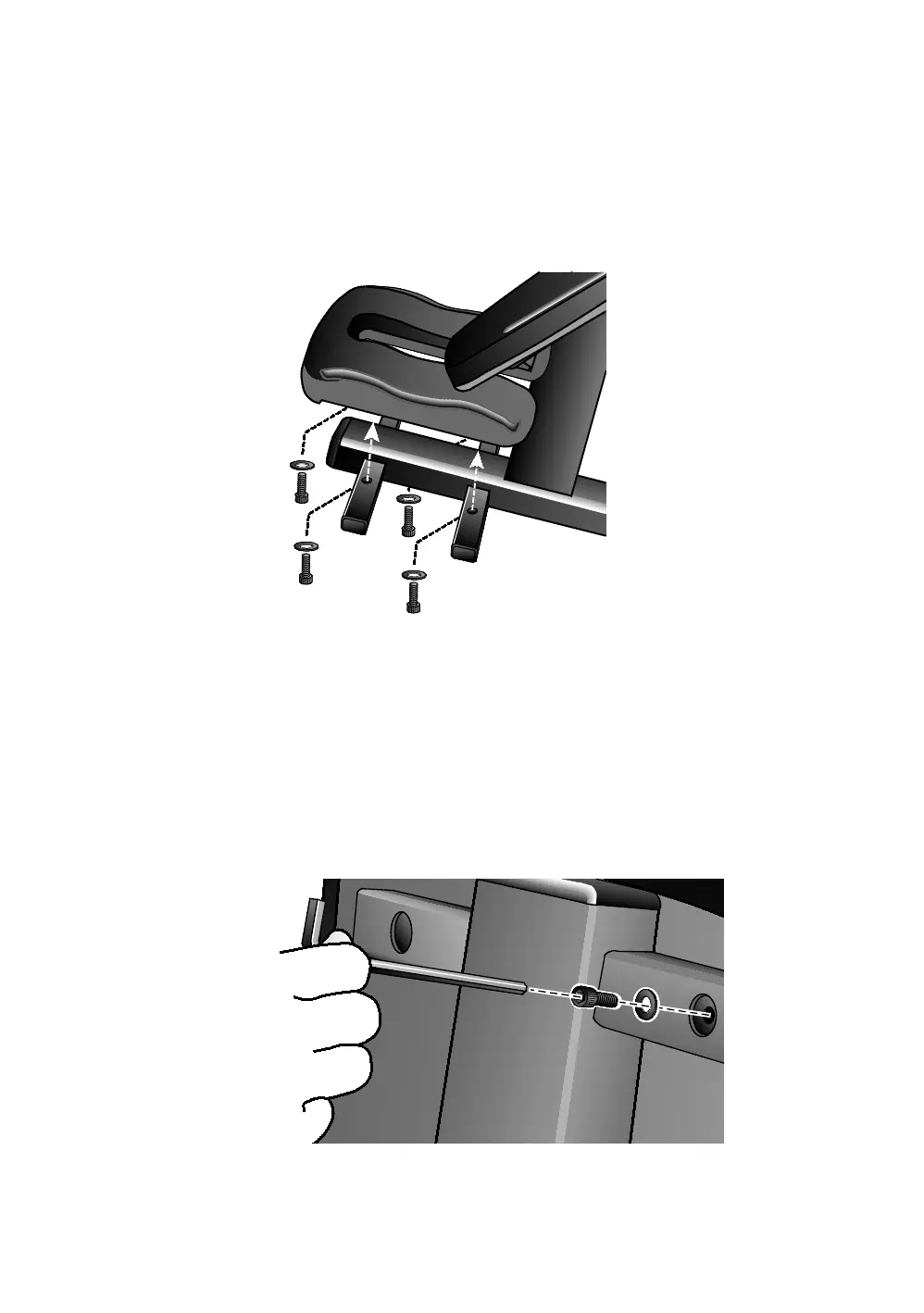

Figure 7: Knee pad attachment to crossbar
3. To attach the knee pad, slide a washer onto each of the
four bolts removed in step 1. Place a bolt and washer on
the end of the 6mm hex wrench and insert it through the
crossbar.
4. To keep the knee pad properly aligned, thread all four
bolts, then alternately tighten each bolt securely.
Note: If you lose a bolt in the crossbar, tip the seat frame
on its side and shake it until the bolt drops out of the hole.
Figure 8: Knee pad attachment
