Assembling the StretchTrainer 15
To attach the axle:
1. Position the seat frame between the seat bracket and
align the axle mounting hole. Slide the axle half way
through the bracket and seat frame.

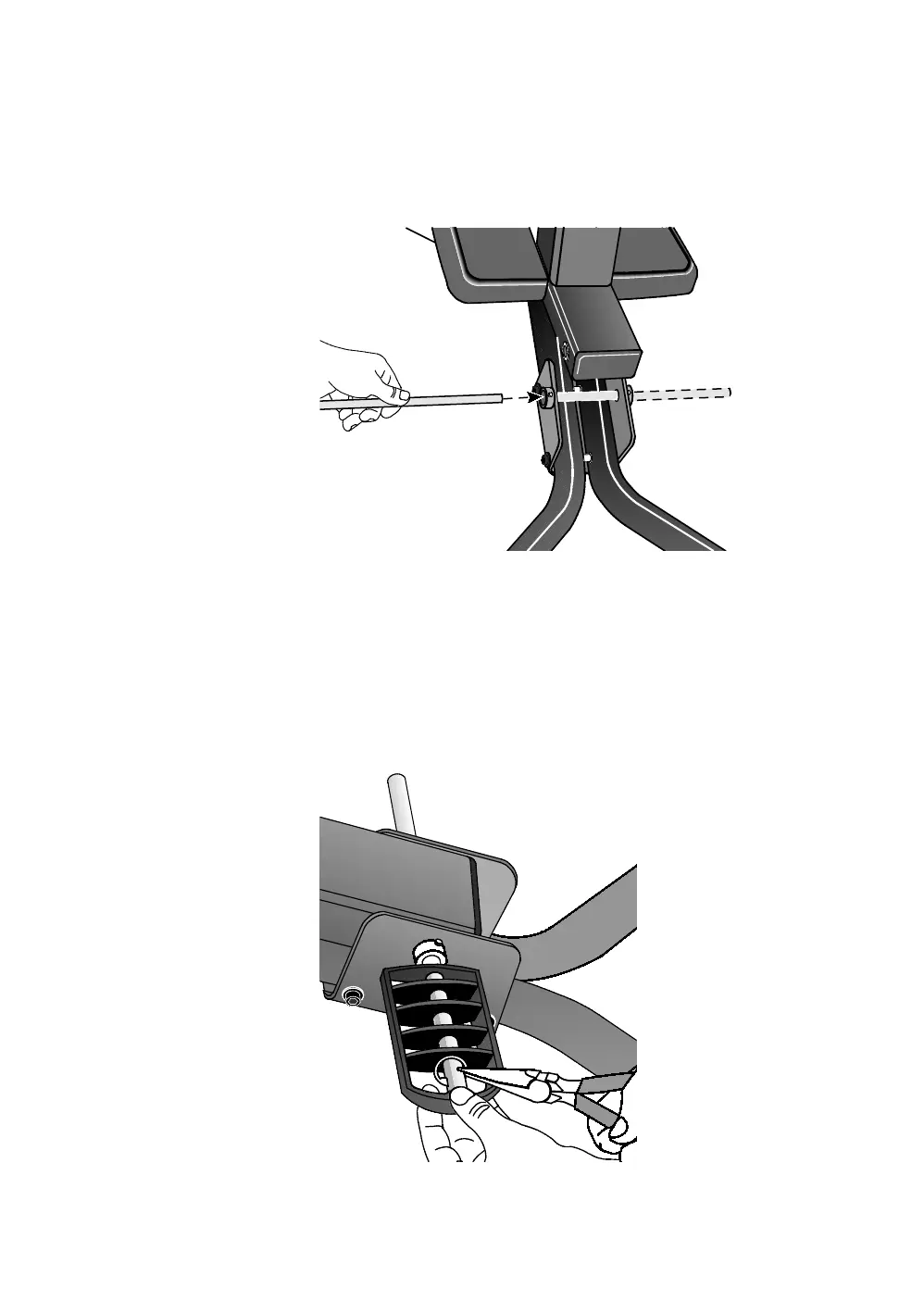

Figure 9: Axle placement
2. Slide a foot rest onto one end of the axle.
3. Position an E-clip from the hardware kit on the foot rest as
shown in the following figure and push it into position.
Note: A notch has been cut into the axle to position the
E-clip. You may need pliers to push the E-clip into
position.
Figure 10: Position of E-clip on the foot rest
