16 Assembling and Maintaining the StretchTrainer
4. Slide a foot rest onto the other side of the axle and repeat
step 3.
5. After the foot rests are securely fastened to the axle,
check that the axle is centered through the seat frame.
Then tighten the two small set screws that hold the axle
in position using a 3mm hex wrench.
Note: Do not overtighten the screws.

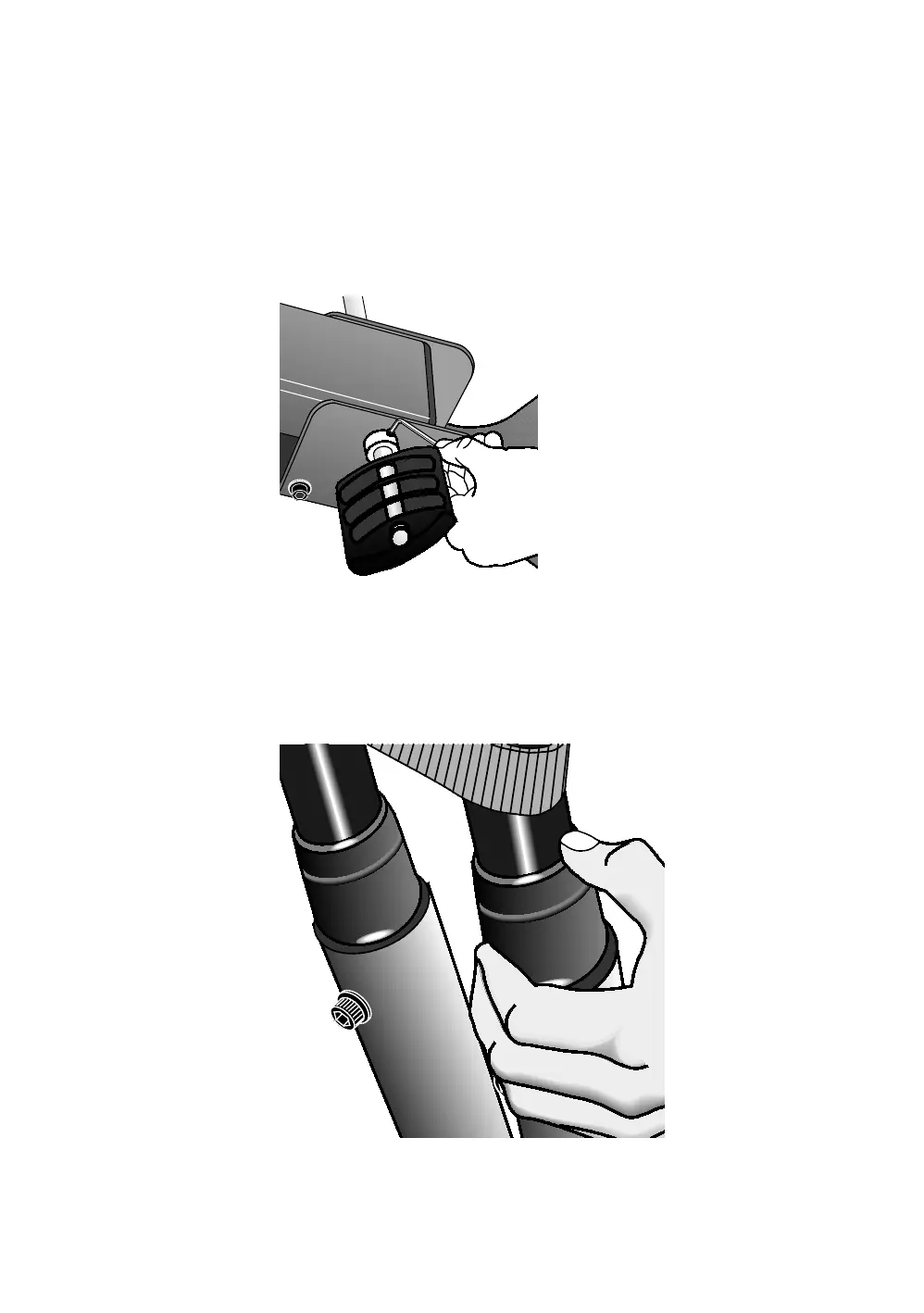

Figure 11: Tighten set screws on axle
To complete the assembly:
1. Slide the handlebar caps onto the upright supports, then
fully tighten the handlebar bolts using a 6mm hex wrench.
Figure 12: Handlebar cap attachment
