© Precor Incorporated, Unauthorized Reproduction and Distribution Prohibited by Law Page 76

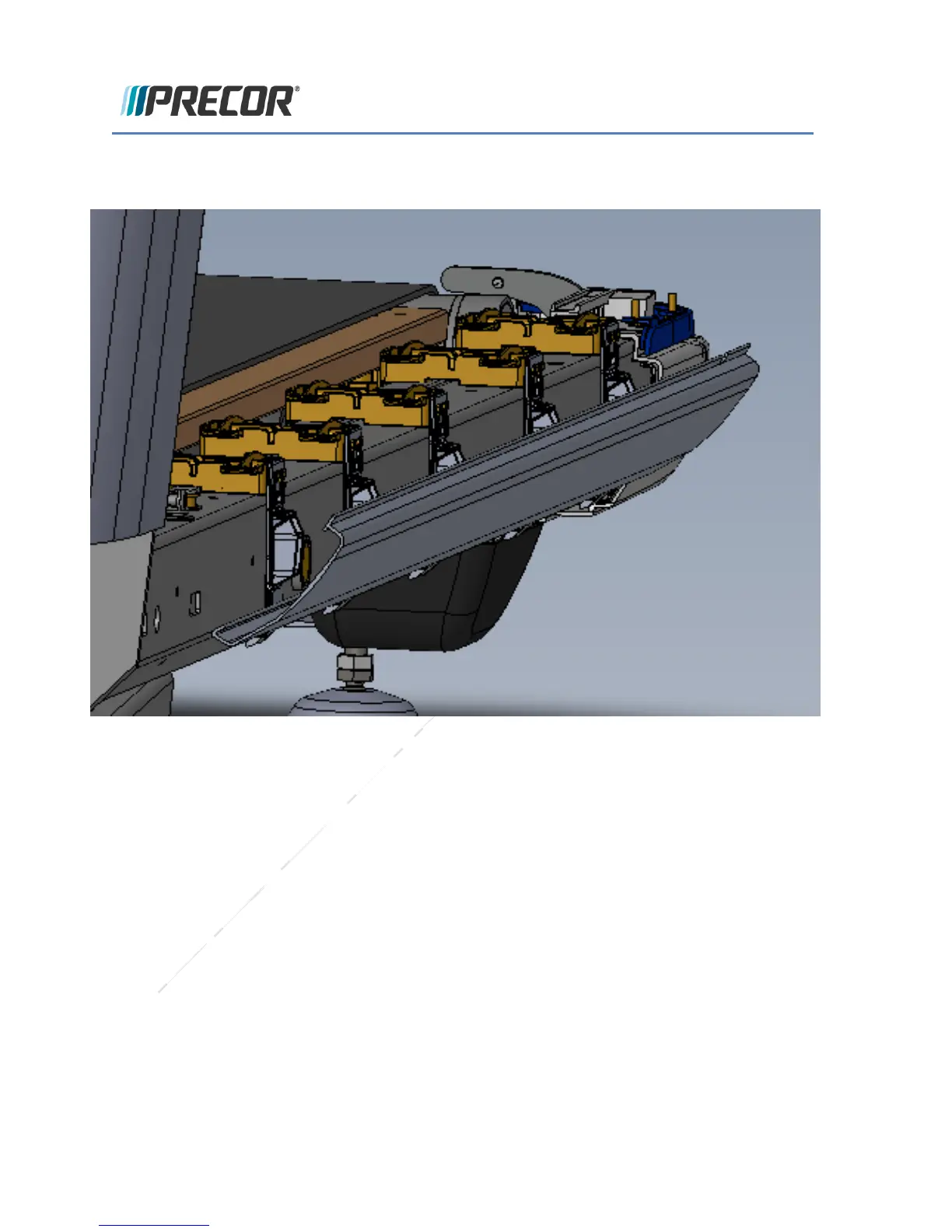

Figure 21: Side Trim removal.
Removing and replacing the Line Cord, Circuit Breaker or ASL
PCB.
1. Set the treadmill circuit breaker in the off position and unplug the treadmill’s line cord from the
AC outlet.
2. Remove the hood.
3. Remove the four #3 Phillips screws that fasten the AC input assembly to the frame (see Figure
5).
Figure 22: AC Input Assy. screw locations
