Pa
r s
if ca
ioC
abin
e
t t Id
ent
i
t
n

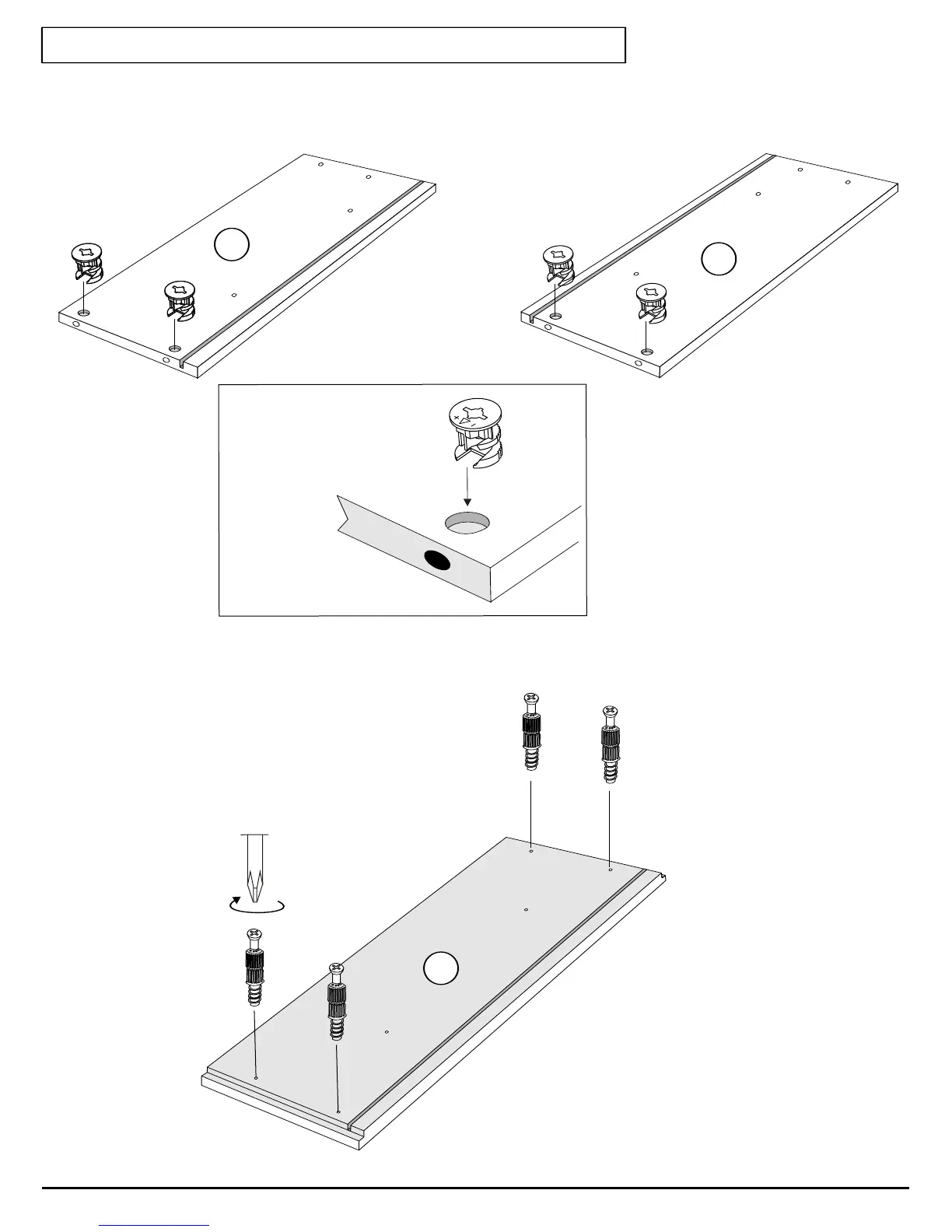

STEP 9
Estimated Time: 5 minutes PER DRAWER
Insert cams into drawer sides
Screw green twister dowels into drawer fronts
9a
9b
D3
D2
D1
Left Drawer Side
Right Drawer Side
Make sure arrow
faces toward hole for
twister dowel
Page 11 of 16
