Prepac DC-3345 - Step 9 c: Attach Drawer Sides to Back; Step 9 d: Attach Drawer Front with Cams

Prepac DC-3345
16 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
1½” Hi Lo Screws
P r s
f aCa
bin
et a
t Ide
nti
ic
tion
9c

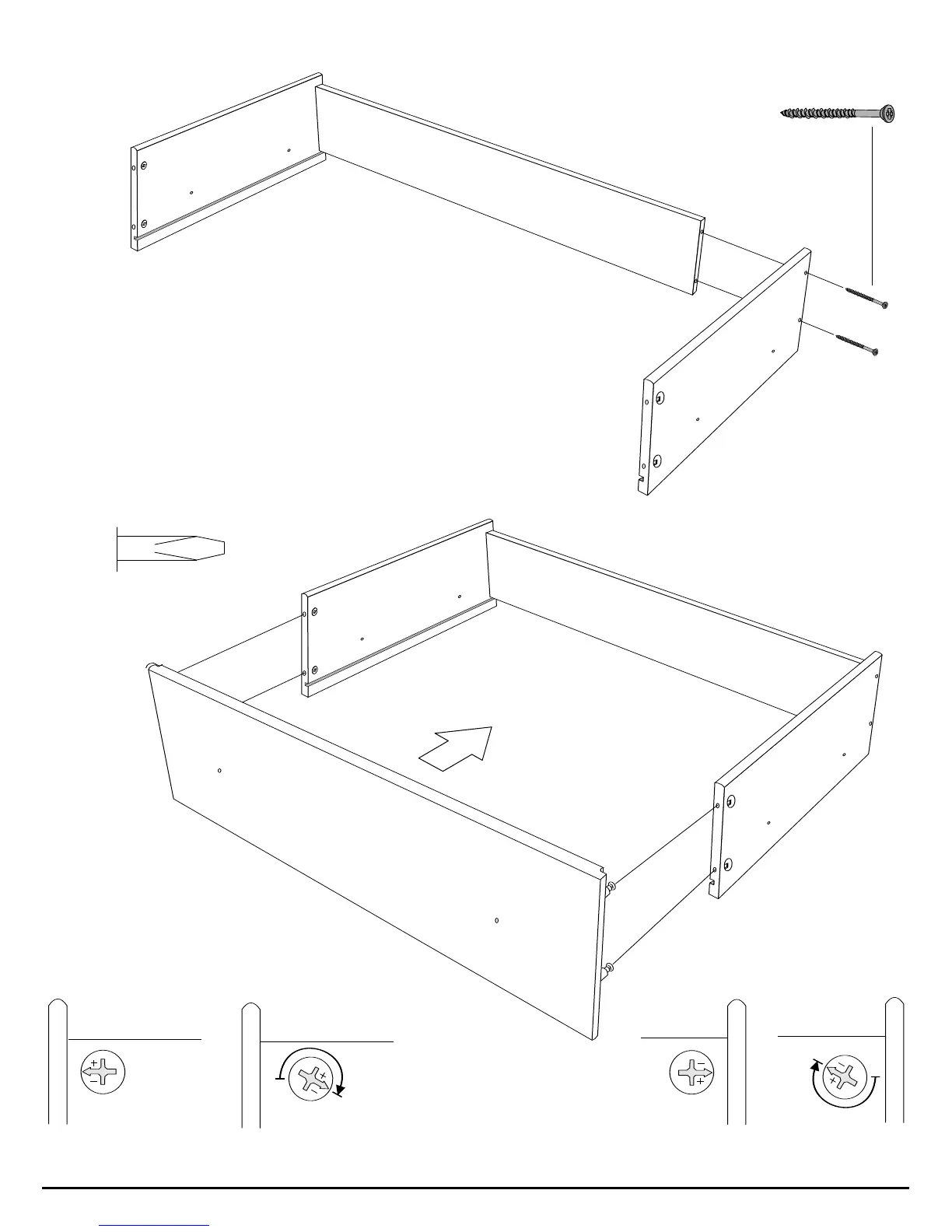

Attach drawer sides to drawer back with 1½” Hi Lo screws
9d
Attach drawer front and tighten cams
using a flat head screwdriver
Right Drawer Side
Locked
Turn 210°
Unlocked
Left Drawer Side
Unlocked
Page 12 of 16
Locked
Turn 210°
