Pressure Systems 9022 - Figure 5.3 A 9022 Pcbs Outside the Housing; Figure 5.3 B 9022 Pcbs Apart

Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual
www.PressureSystems.com
5 - 9

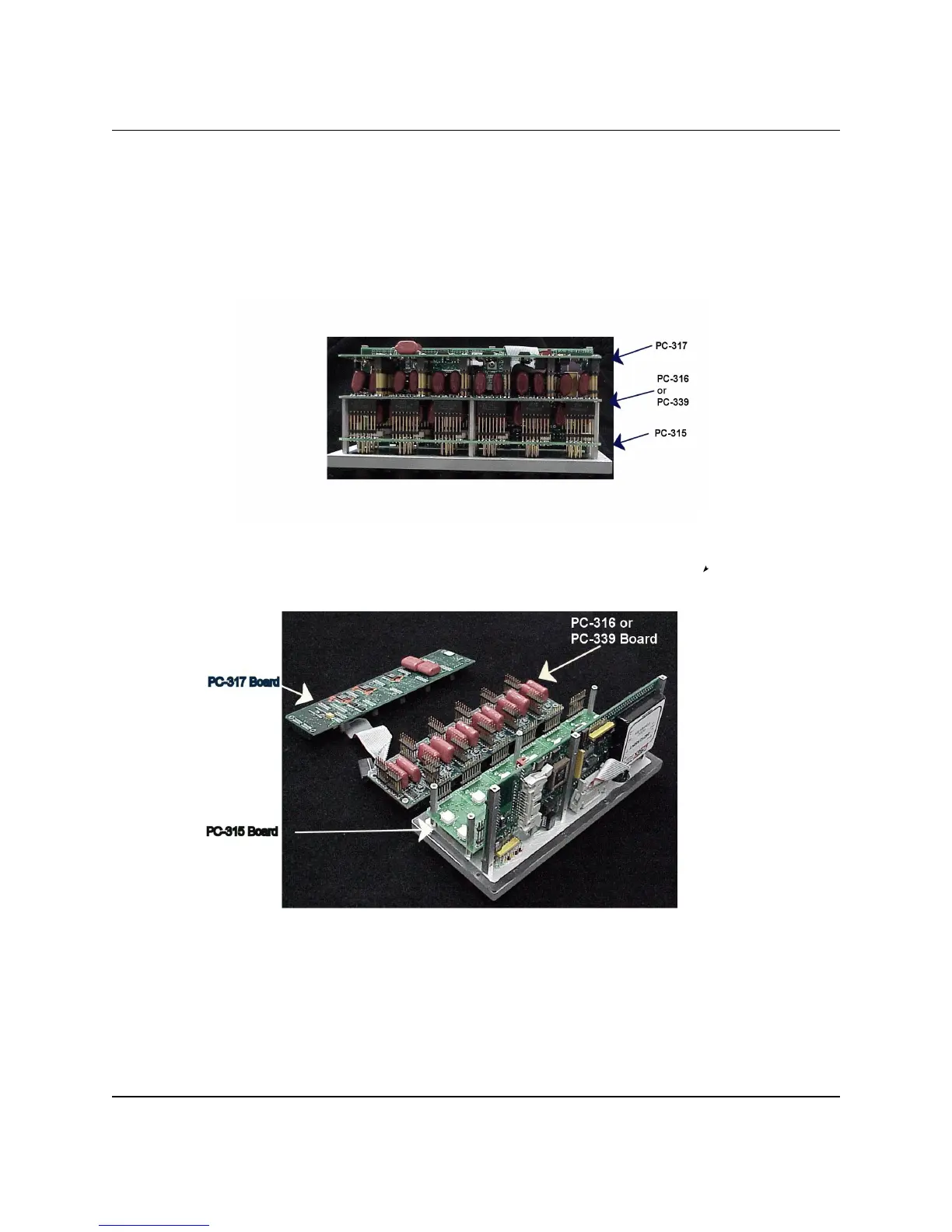

Figure 5.3b
9022 PCBs Apart
Figure 5.3a
9022 PCBs Outside the Housing
5.1.3.4 PC-315 Connector Interface Board, PC-316 or PC 339 Signal Conditioning PCB,
and PC-317 Multiplexer PCB (9022)
The following procedures should be used for replacement of the PC-315, PC-316, or PC-317
boards. Use the tools and follow the general warnings already described in
Section 5.1.1.
(1) Disassemble the module as described in Section 5.1.2.
PC-316 Board
