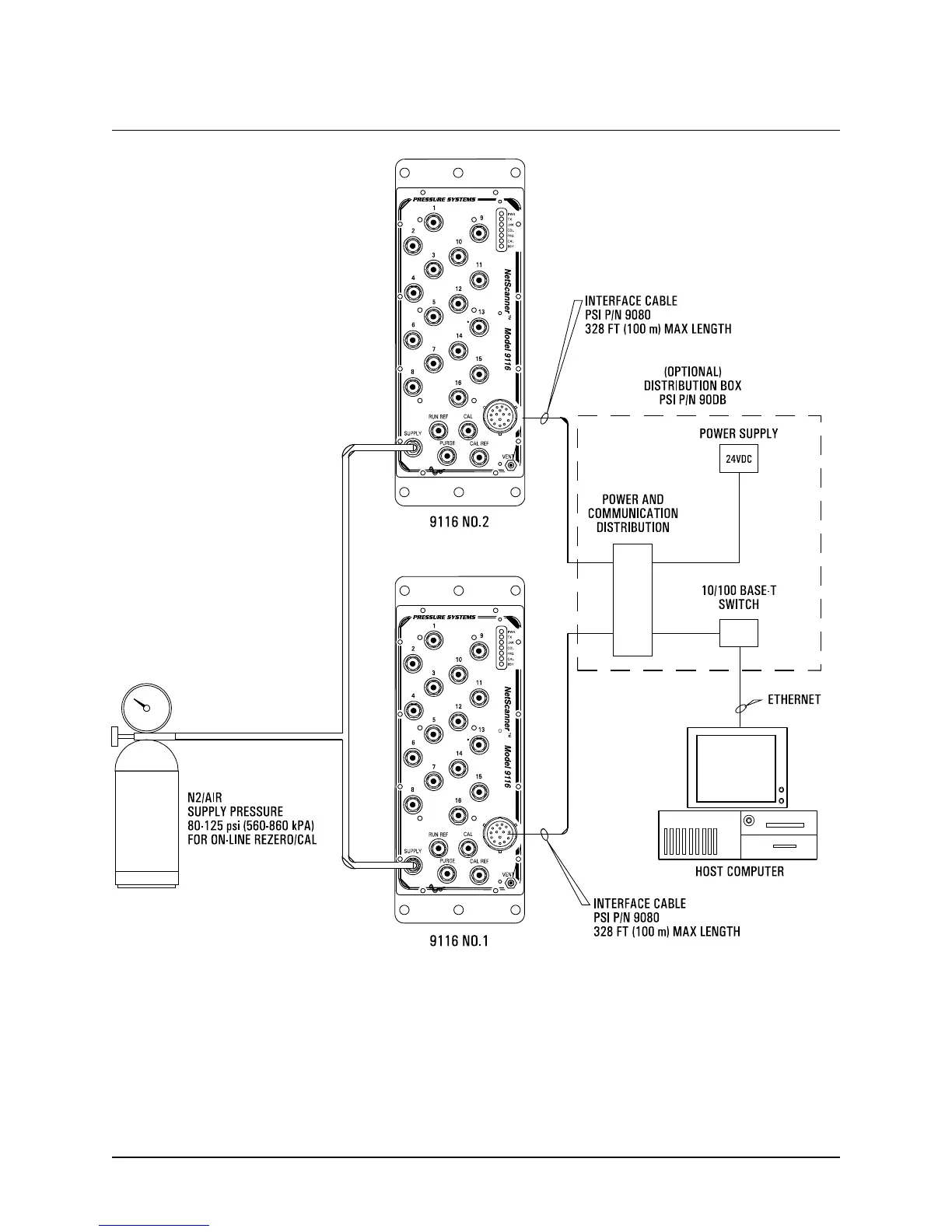

Pressure Systems 9022 - Figure 2.3 Ethernet Network Topology

Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual
www.PressureSystems.com
2 - 6
Figure 2.3
Ethernet Network Topology
