Prestige Excellence - Page 43

36
External Wiring
Diverter Valve
CH (1) Pump
AUX
Diverter Valve
CH (1) Pump
A
UX

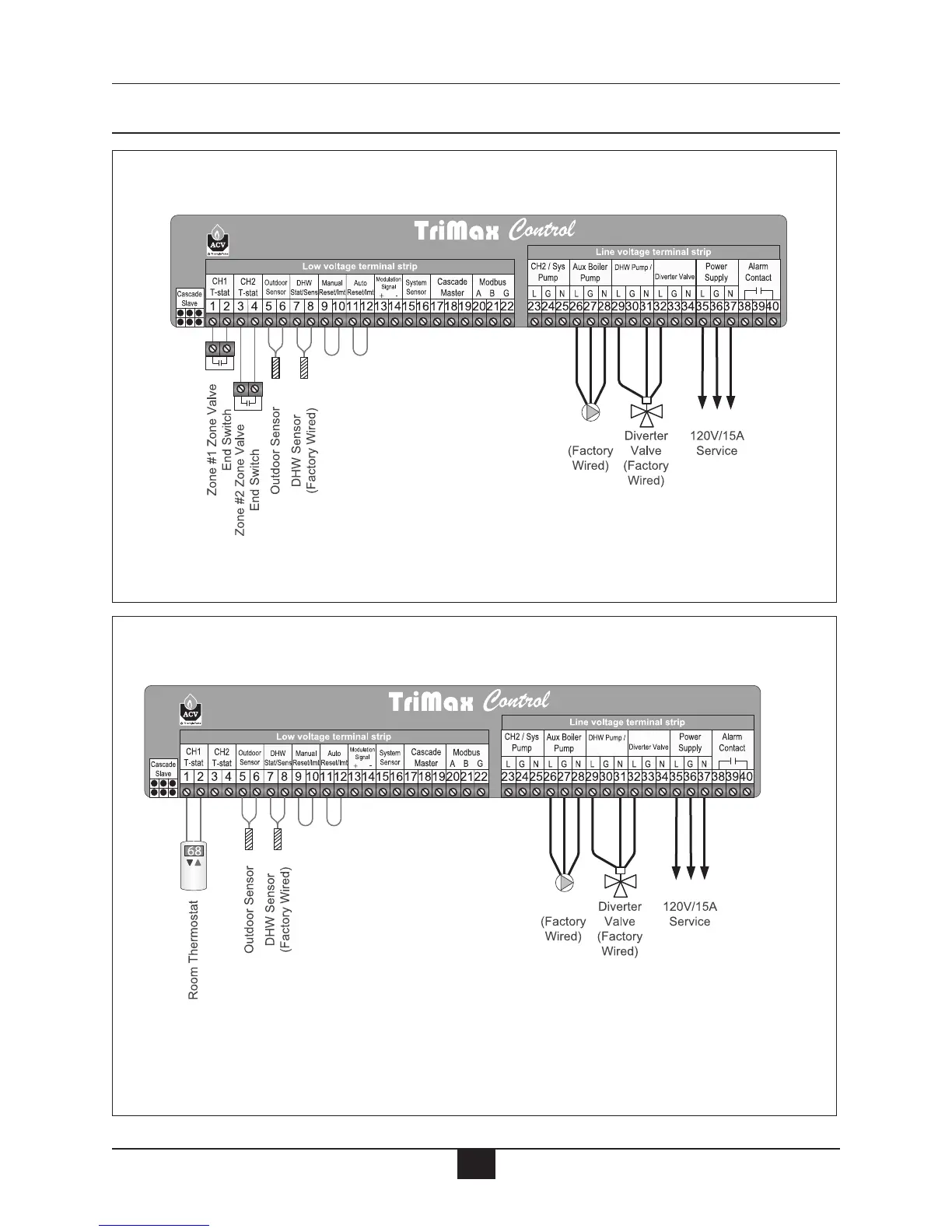

Fig. 25: Prestige Wiring - Multiple Zone Valve with Single System/Boiler Circulator
Fig. 26: Prestige Wiring - Single Zone System with Single System/Boiler Circulator
Note: Reference Fig. 11, page 21 for
System Piping.
Note: Reference Fig. 12, page 21 for
System Piping.
