Prestige Excellence - System Piping Wiring Diagrams

35
External Wiring
Diverter Valve
CH (1) Pump
AUX
SYS
D
iverter Valve
CH (1) Pump
AUX
ZC1
ZC2

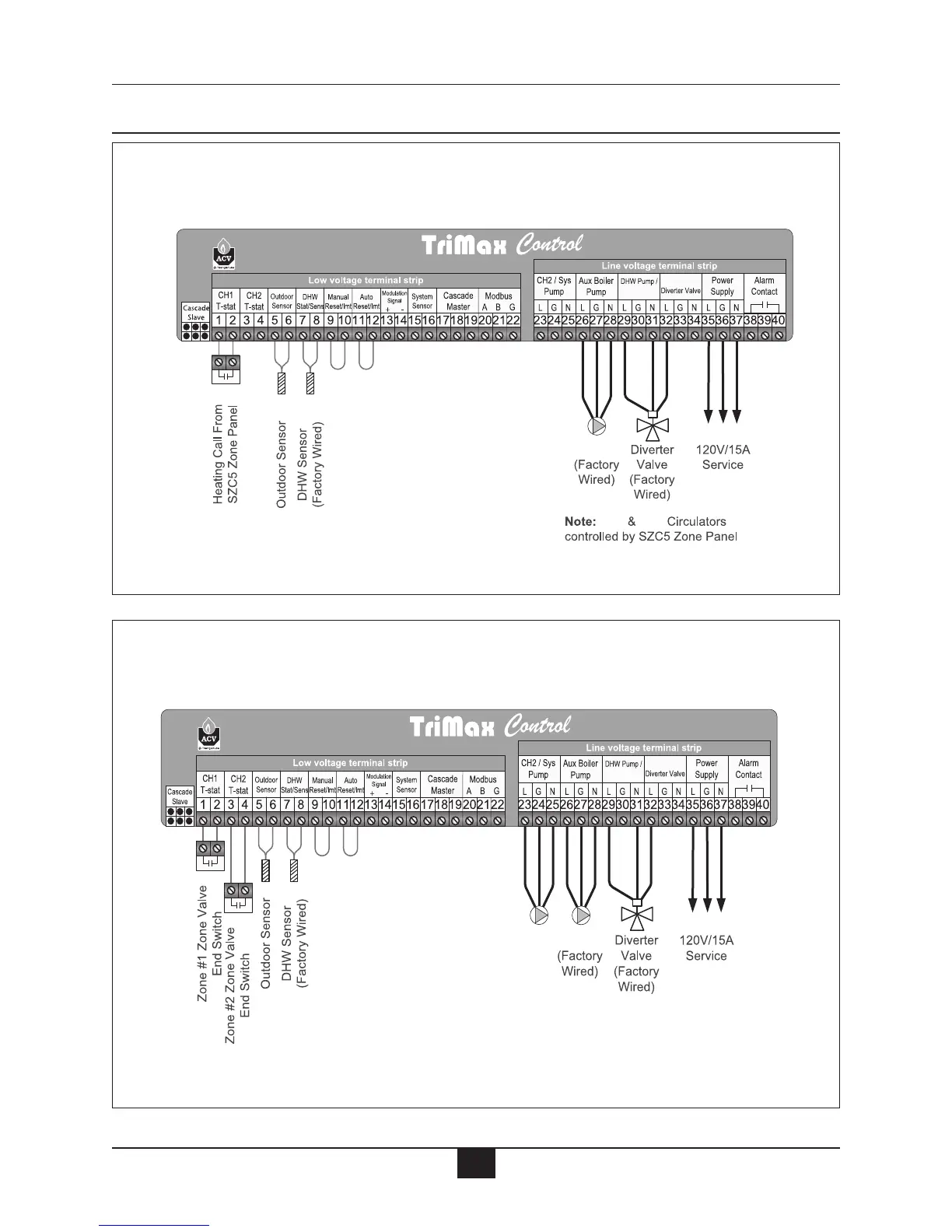

Fig. 23: Prestige Wiring - Zoning with Zone Circulators
Fig. 24: Prestige Wiring - Zoning with Zone Valves
Note: Reference Fig. 9, page 20 for
System Piping.
Note: Reference Fig. 10, page 20 for
System Piping.
