Prestige Solo - Installation Procedures; Dimensions and Mounting

EN • 10
ENGLISHFRANCAISNEDERLANDSESpAñoLITALIANoDEuTSCH
664Y2300.C
INSTALLATIoN INSTRuCTIoNS
M
in.
300
mm
M
in. 22
0
mm
Min. 2
5
mm Min. 2
5
mm
prestige
- The boiler must be mounted on a non-flammable wall.
- Drill two 10 mm diameter holes, spaced as indicated on
the above drawing.
- Secure the wall-mount bracket with the delivered anchor
screws.
- Hook the boiler on the bracket.
BOILER ROOM
- Make sure that all air vents are unobstructed any times.
- Do not store any flammable products in the boiler room.
- Do not store any corrosive products, paint, solvents, salts,
chlorine products and other detergent products near the
appliance.
- If you smell gas, do not switch on any lights, turn off the
gas tap at the meter, ventilate the rooms and contact your
installer.
101
,
6 m
m
101,6 mm
48,4 mm
53
,
2 m
m
53
,
2 m
m
48
,
4 m
m

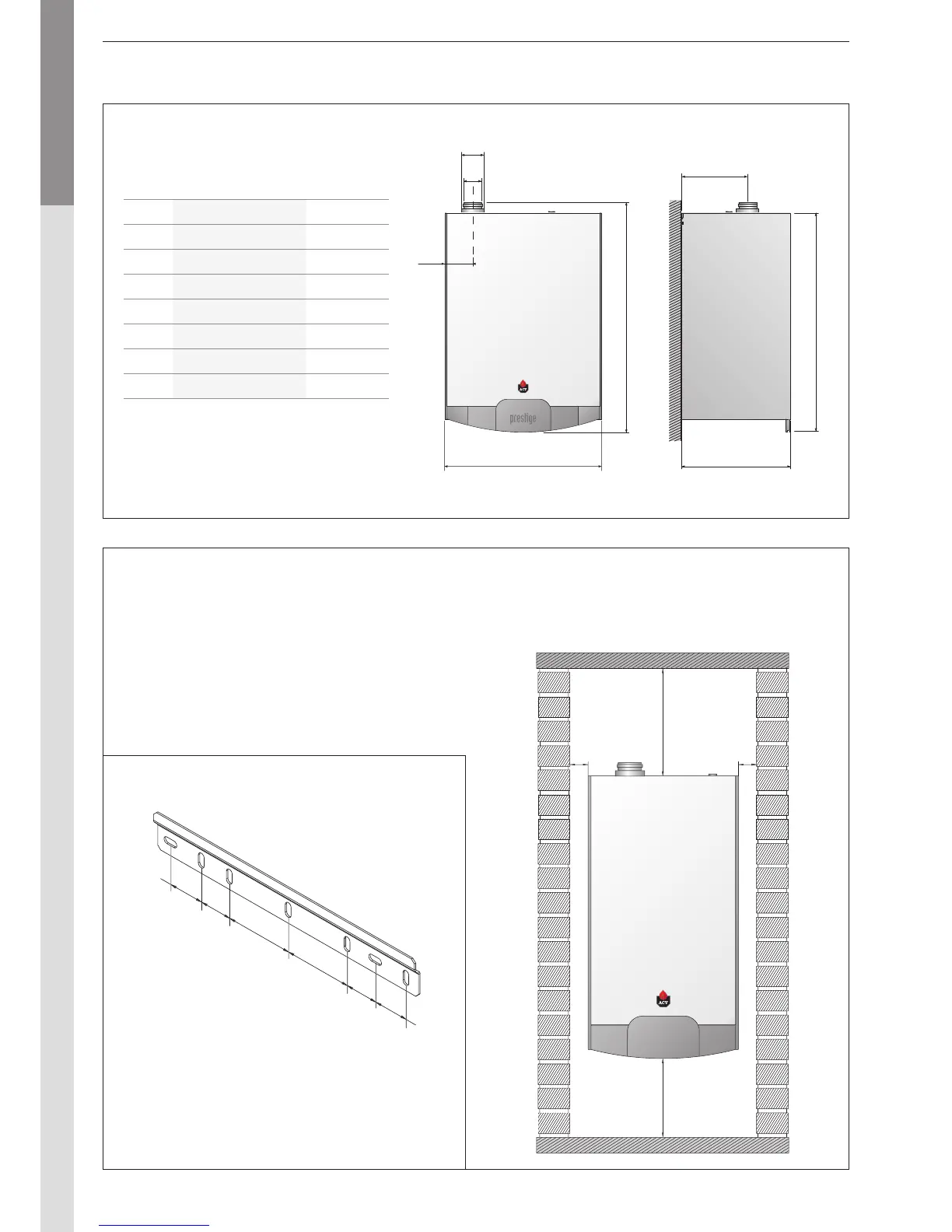

WALL MOUNTING OF THE BOILER
A
BH
C
D
E
F
G
DIMENSIONS
Solo Excellence
 970 1030
 502 632
 107 110
 80 80
 125 125
 300 300
 930 1000
 396 535

The appliance must be positioned in such a way to be
accessible any time. In addition, the following distances
are required around the appliance.
