What type and size of battery should I use?
Your Travel Scooter requires two deep-cycle batteries. We recommend only sealed, maintenance-free batteries
such as AGM or Gel-Cell which are similar in performance. Do not use wet-cell batteries, which have removable
caps. Refer to the specifications table for size as batteries differ depending on manufacture.
WARNING! Corrosive chemicals are contained in batteries. Use only AGM or
Gel-Cell batteries to reduce the risk of leakage or explosive conditions.
NOTE: Sealed batteries are not serviceable. Do not remove the caps.
How do I change a battery in my Travel Scooter?
MANDATORY! Battery posts, terminals and related accessories contain lead
and lead compounds. Wear goggles and gloves when handling batteries and
wash hands after handling.
WARNING! Always use two batteries of the exact same type, chemistry and amp-
hour (Ah) capacity. Refer to the specifications table in this manual and in the
manual supplied with the battery charger for recommended type and capacities.
WARNING! Do not mix old and new batteries. Always replace both batteries at
the same time.
WARNING! Contact your authorised Pride Provider if you have any questions regarding
the batteries in your Travel Scooter.
WARNING! Do not replace the batteries while the Travel Scooter is occupied.
IV. BATTERIES AND CHARGING
WARNING! The batteries
on your Travel Scooter
should only be serviced
or replaced by your
authourised Pride
Provider or a qualified
technician.
1. Remove the battery pack from the Travel Scooter.
2. Carefully turn the pack upside down.
3. Remove the eight (8) screws from the perimetre of
the battery pack.
4. Carefully turn the pack right side up and remove
the lid.
5. Disconnect the black (-) and red (+) battery cables from
the battery terminals of each battery . See figure 16.
6. Remove the old batteries.
7. Place a new batteries in the battery pack.
8. Connect the red battery cable to the positive (+)
battery terminal of each battery.

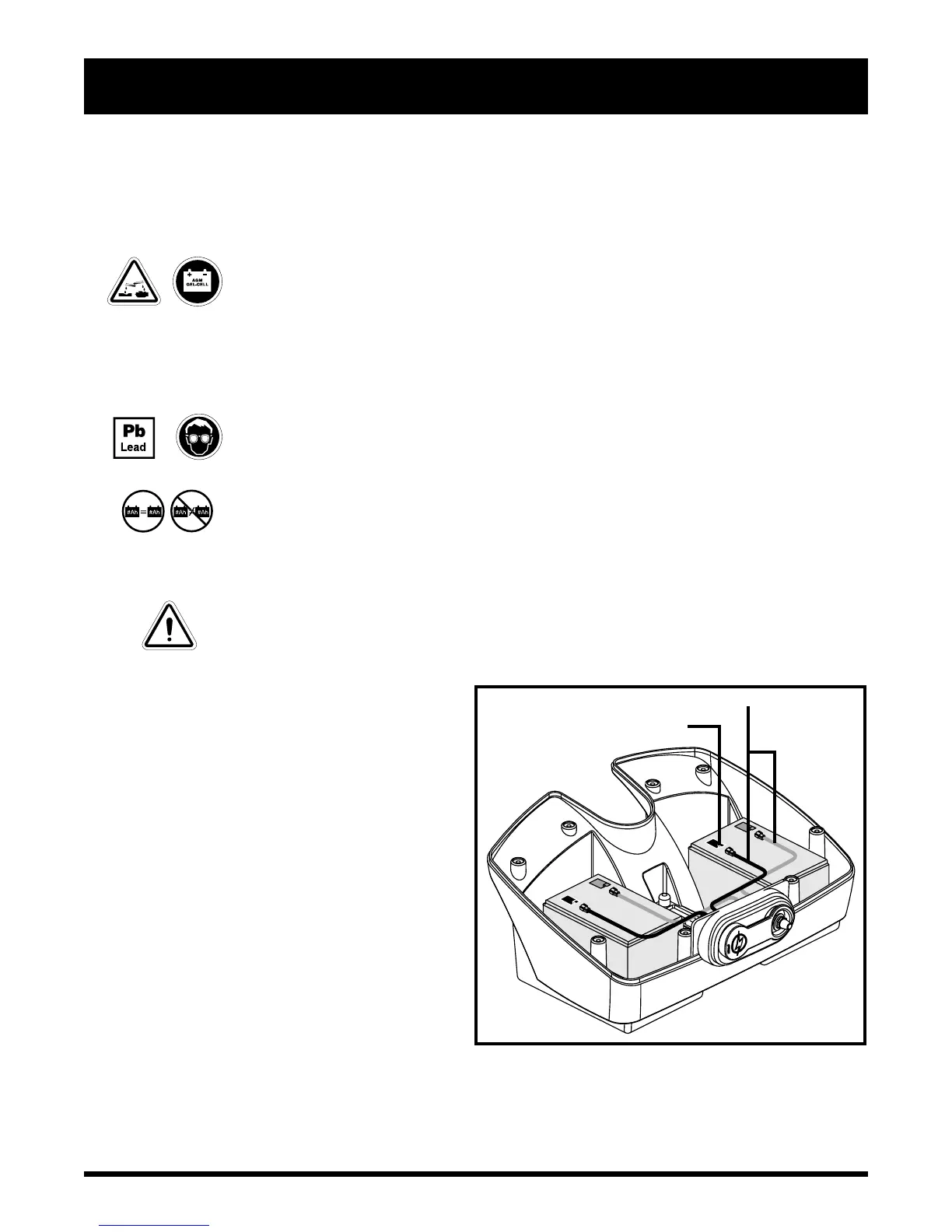

Figure 16. Battery Replacement
BATTERY TERMINAL
BATTERY CABLES
9. Connect the black battery cable to the negative (-) battery terminal of each battery.
10. Position the lid back onto the battery pack.
11. Carefully turn the pack upside down
12. Reinstall all screws and tighten.
